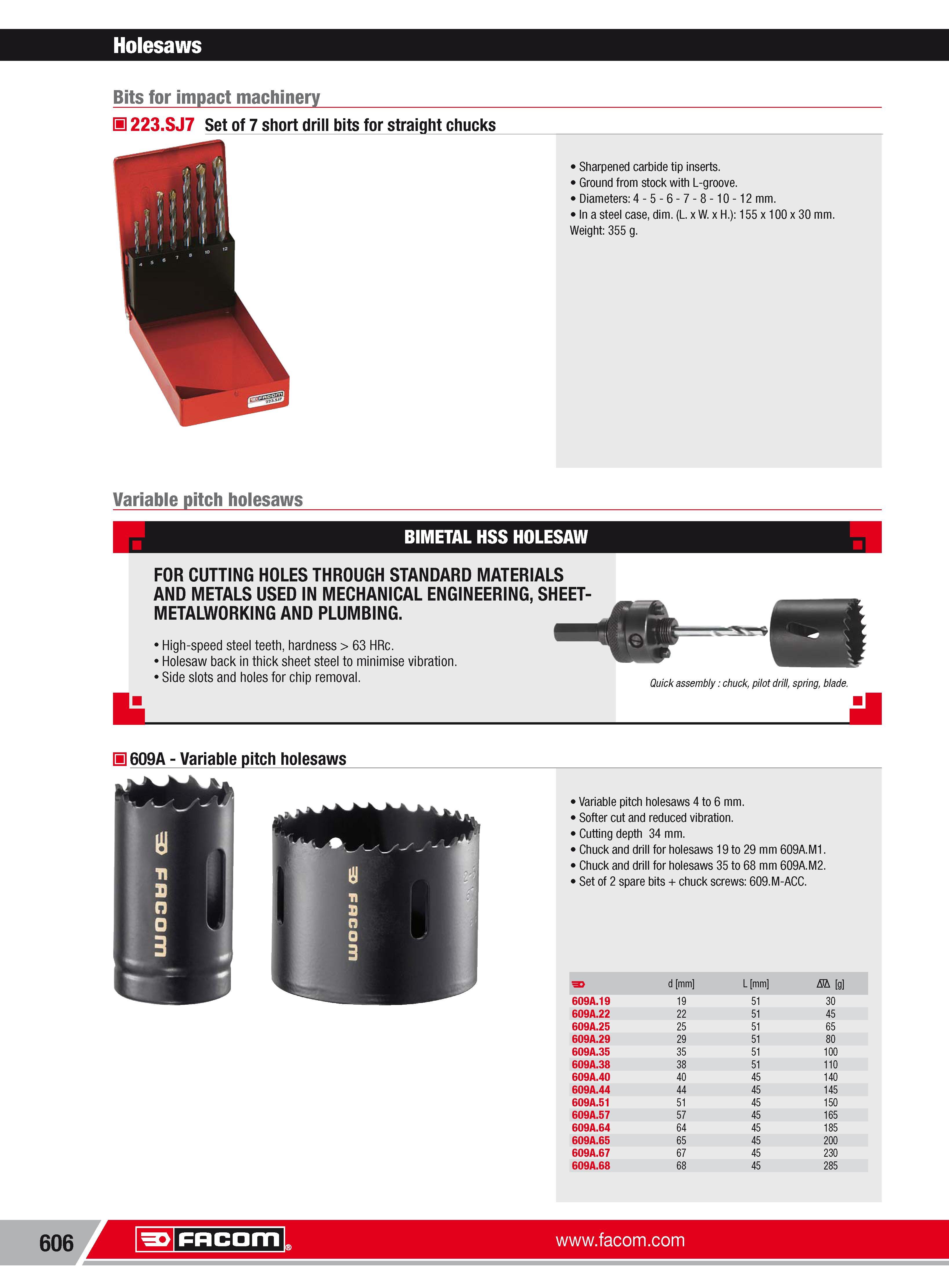

632 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.606

Каталог FACOM 2013 Инструмент Оборудование Стр. 606 0632 ENG Lab2u

Holesaws Bits for impact machinery H 223.SJ7 Set of 7 short drill bits for straight chucks. Sharpened carbide tip inserts. Ground from stock with L-groove. Diameters:4-5-6-7-8-10-12 mm. Inasteel case dim. (L.xW.xH.) 155x100x30 mm. Weight 355 g. Variable pitch holesaws BIMETAL HSS HOLESAW FOR CUTTING HOLES THROUGH STANDARD MATERIALS AND METALS USED IN MECHANICAL ENGINEERING SHEET METALWORKING AND PLUMBING. High-speed steel teeth hardness 63 HRc. Holesaw back in thick sheet steel to minimise vibration. Side slots and holes for chip removal. Quick assembly chuck pilot drill spring blade. H 609A Variable pitch holesaws Variable pitch holesaws 4to6 mm. Softer cut and reduced vibration. Cutting depth 34 mm. Chuck and drill for holesaws 19to29 mm 609A.M1. Chuck and drill for holesaws 35 to 68 mm 609A.M2. Set of 2 spare bits + chuck screws 609.M-ACC. d mm L mm Nh g 609A.19 19 51 30 609A.22 22 51 45 609A.25 Cn 51 65 609A.29 29 51 80 609A.35 35 51 100 609A.38 38 51 110 609A.40 40 45 140 609A.44 44 45 145 609A.51 51 45 150 609A.57 57 45 165 609A.64 64 45 185 609A.65 65 45 200 609A.67 67 45 230 609A.68 68 45 285 606 Facom
