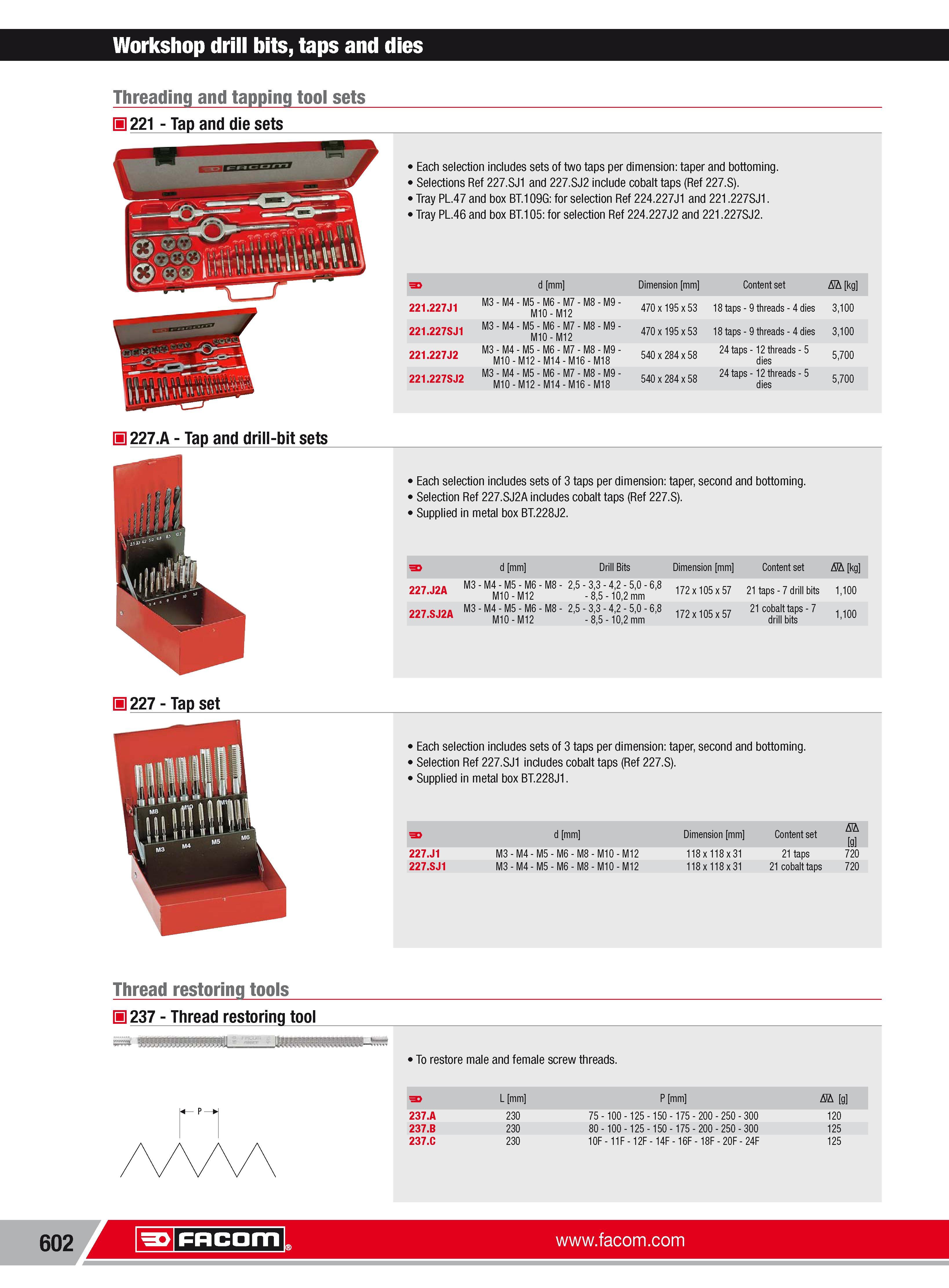

628 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.602

Каталог FACOM 2013 Инструмент Оборудование Стр. 602 0628 ENG Lab2u

Workshop drill bits taps and dies Threading and tapping tool sets H 221 Tap and die sets Each selection includes sets of two taps per dimension taper and bottoming. Selections Ref 227.SJ1 and 227.SJ2 include cobalt taps (Ref 227.S). Tray PL.47 and box BT.109G for selection Ref 224.227J1 and 221.227SJ1. Tray PL.46 and box BT.105 for selection Ref 224.227J2 and 221.227SJ2. 227.A Tap and drill-bit sets Each selection includes sets of 3 taps per dimension taper second and bottoming. Selection Ref 227.SJ2A includes cobalt taps (Ref 227.S). Supplied in metal box BT.228J2. 3 d mm Drill Bits Dimension mm Content set Nh kg 227.J2A M3-M4-M5-M6-M8- 25 33 42 50 68 M10-M12 85 -102 mm 172x105x57 21 taps 7 drill bits 1100 227.SJ2A M3-M4-M5-M6-M8- 25 33 42 50 68 M10-M12 85 -102 mm 172x105x57 21 cobalt taps 7 drill bits 1100 H 227 Tap set Each selection includes sets of 3 taps per dimension taper second and bottoming. Selection Ref 227.SJ1 includes cobalt taps (Ref 227.S). Supplied in metal box BT.228J1. d mm Dimension mm Content set Nh g 227.J1 M3-M4-M5-M6-M8-M10-M12 118x118x31 21 taps 720 227.SJ1 M3-M4-M5-M6-M8-M10-M12 118x118x31 21 cobalt taps 720 Thread restoring tools H 237 Thread restoring tool To restore male and female screw threads. 237.A L mm 230 P mm 75 100 125 150 175 200 250 -300 Nh g 120 P Facom
