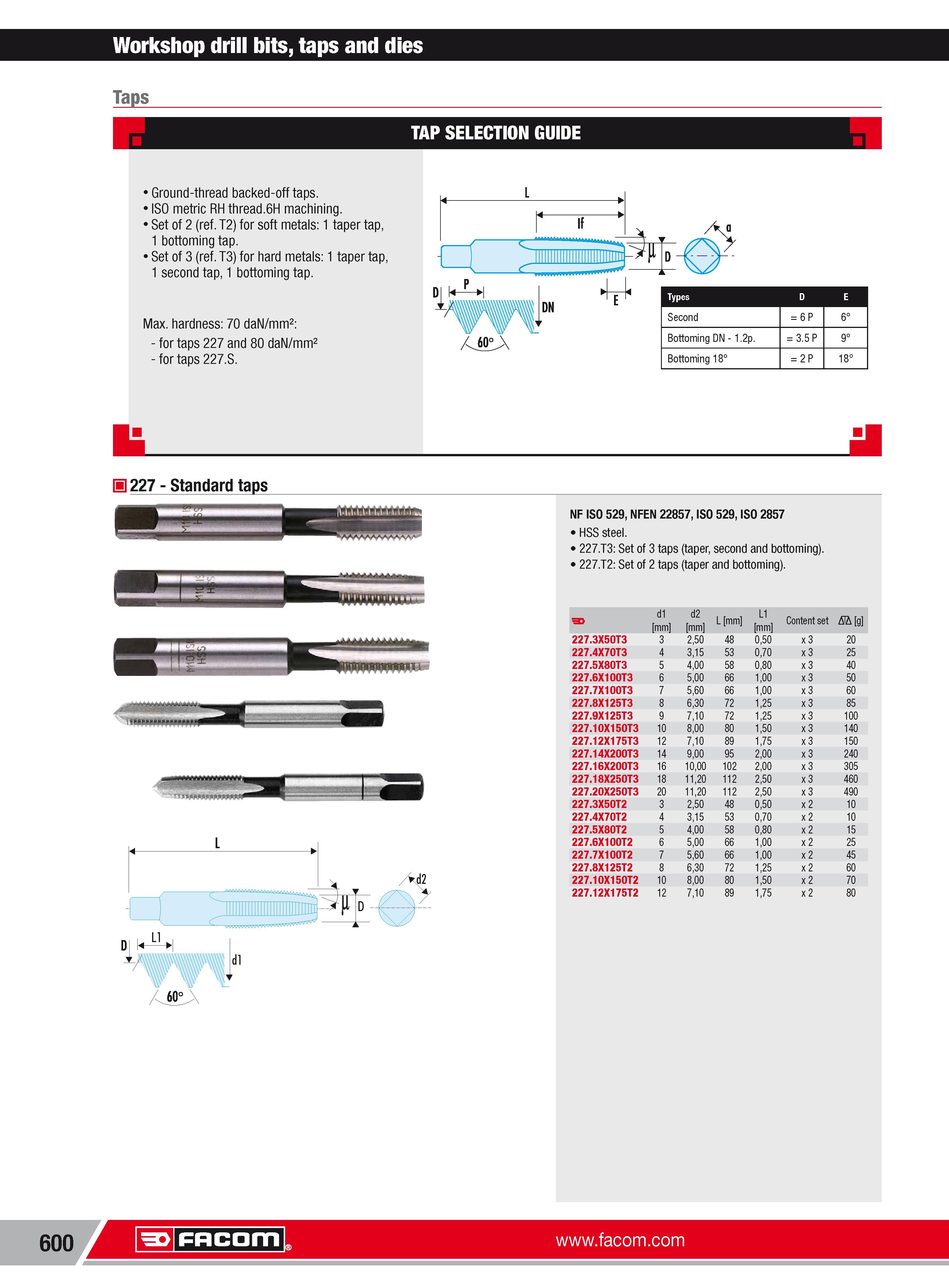

Workshop drill bits taps and dies Taps TAP SELECTION GUIDE b 1 Ground-thread backed-offtaps. 1 ISO metric RH thread.6H machining. 1 Set of 2 (ref. T2) for soft metals 1 taper tap 1 bottoming tap. 1 Set of 3 (ref. T3) for hard metals 1 taper tap 1 second tap 1 bottoming tap. Max. hardness 70 daN mm2 for taps 227 and 80 daN mm2 for taps 227.S. Second 6P 6 Bottoming DN 1.2p. 3.5P 9 Bottoming 18 2P 18 H 227 Standard taps NF ISO 529 NFEN 22857 ISO 529 ISO 2857 HSS steel. 227.T3 Set of 3 taps (taper second and bottoming). 227.T2 Set of 2 taps (taper and bottoming). d1 mm d2 mm L mm L1 mm Content set AA g 227.3X50T3 3 250 48 050 x3 20 227.4X70T3 4 315 53 070 x3 25 227.5X80T3 5 400 58 080 x3 40 227.6X100T3 6 500 66 100 x3 50 227.7X100T3 7 560 66 100 x3 60 227.8X125T3 8 630 72 125 x3 85 227.9X125T3 9 710 72 125 x3 100 227.10X150T3 10 800 80 150 x3 140 227.12X175T3 12 710 89 175 x3 150 227.14X200T3 14 900 95 200 x3 240 227.16X200T3 16 1000 102 200 x3 305 227.18X250T3 18 1120 112 250 x3 460 227.20X250T3 20 1120 112 250 x3 490 227.3X50T2 3 250 48 050 x2 10 227.4X70T2 4 315 53 070 x2 10 227.5X80T2 5 400 58 080 x2 15 227.6X100T2 6 500 66 100 x2 25 227.7X100T2 7 560 66 100 x2 45 227.8X125T2 8 630 72 125 x2 60 227.10X150T2 10 800 80 150 x2 70 227.12X175T2 12 710 89 175 x2 80 600 E Facom
