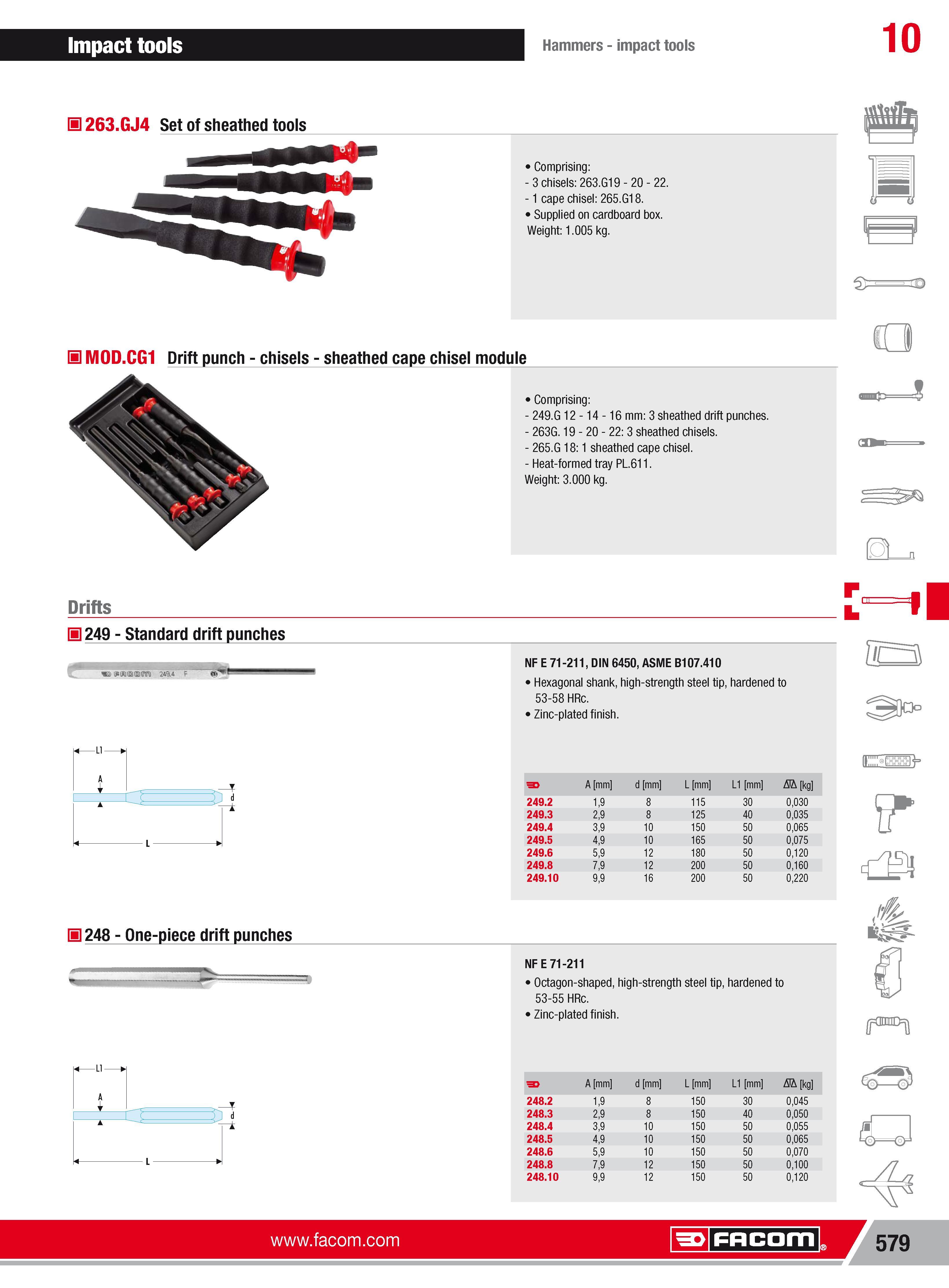

Impact tools Hammers impact tools 10 H 263.GJ4 Set of sheathed tools 22. Comprising 3 chisels 263.G19-20 -1 cape chisel 265.G18. Supplied on cardboard box. Weight 1.005 kg. 4 H MOD.CG1 Drift punch chisels sheathed cape chisel module Drifts H 249 Standard drift punches Comprising 249.G 12-14-16 mm 3 sheathed drift punches. 263G. 19- 20- 22 3 sheathed chisels. 265.G18:1 sheathed cape chisel. Heat-formed tray PL.611. Weight 3.000 kg. NF E 71-211 DIN 6450 ASME B107.410 Hexagonal shank high-strength steel tip hardened to 53-58 HRc. Zinc-plated finish. 1 iQ Cfc d 249.2 249.3 249.4 249.5 249.6 249.8 249.10 A mm 1.9 2.9 3.9 4.9 5.9 7.9 9.9 d mm 8 8 10 10 12 12 16 L mm 115 125 150 165 180 200 200 L1 mm 30 40 50 50 50 50 50 SL kg 0030 0035 0065 0075 0120 0160 0220 248 One-piece drift punches NF E 71-211 Octagon-shaped high-strength steel tip hardened to 53-55 HRc. Zinc-plated finish. d A mm d mm L mm L1 mm SL kg 248.2 19 8 150 30 0045 248.3 9 2 8 150 40 0050 248.4 39 10 150 50 0055 248.5 49 10 150 50 0065 248.6 59 10 150 50 0070 248.8 79 12 150 50 0100 248.10 99 12 150 50 0120 L1 L1 Facom 579
