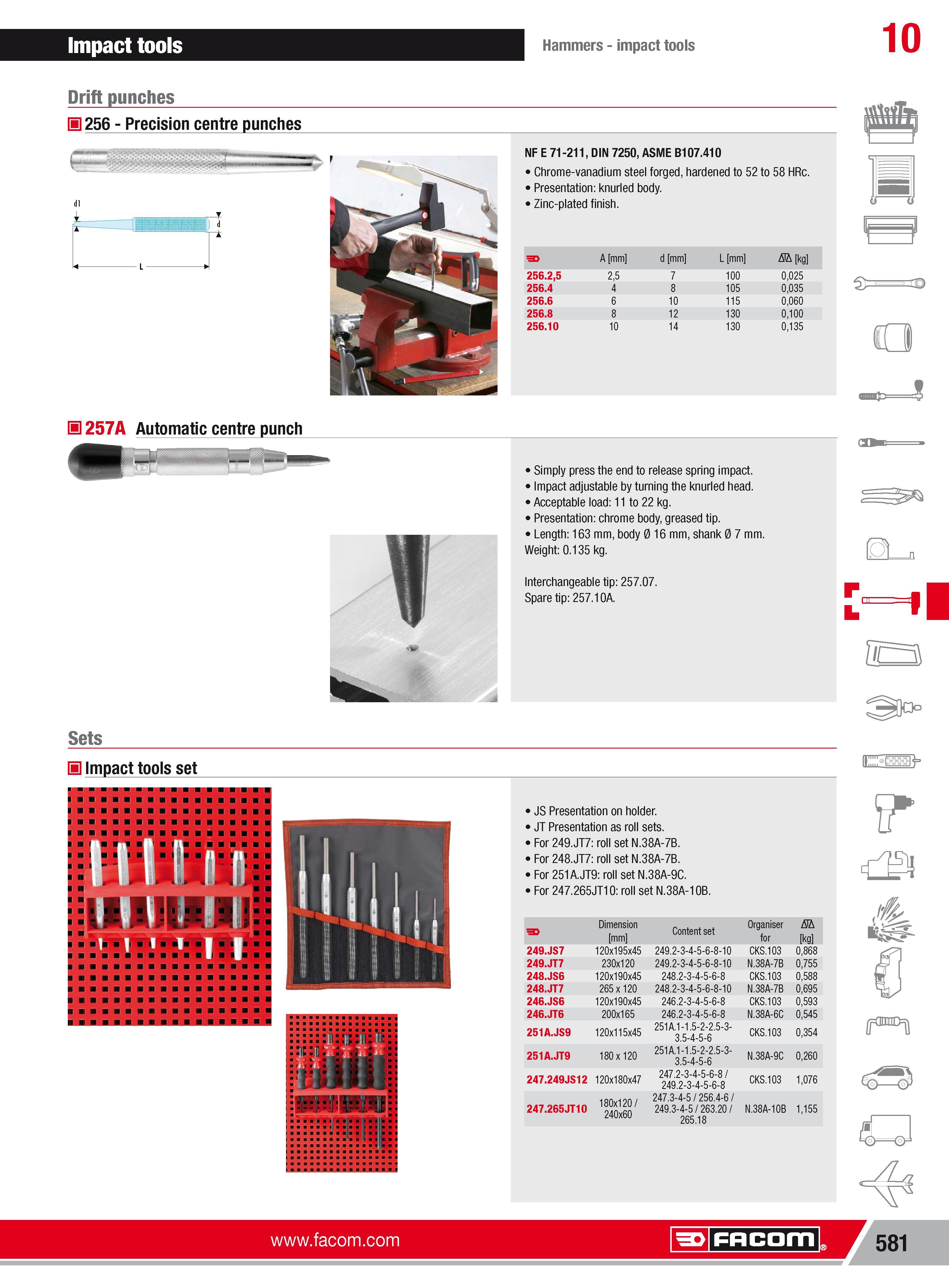

607 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.581

Каталог FACOM 2013 Инструмент Оборудование Стр. 581 0607 ENG Lab2u

Impact tools Hammers impact tools 10 Drift punches 256 Precision centre punches dl L NF E 71-211 DIN 7250 ASME B107.410 Chrome-vanadium steel forged hardened to 52 to 58 HRc. Presentation knurled body. Zinc-plated finish. A mm d mm L mm Nh kg 256.25 25 7 100 0025 256.4 4 8 105 0035 256.6 6 10 115 0060 256.8 8 12 130 0100 256.10 10 14 130 0135 s c H 257A Automatic centre punch 3 Simply press the end to release spring impact. Impact adjustable by turning the knurled head. Acceptable load 11to22 kg. Presentation chrome body greased tip. Length 163 mm body 016 mm shank 0 7 mm. Weight 0.135 kg. Interchangeable tip 257.07. Spare tip 257.10A. Sets H Impact tools set JS Presentation on holder. JT Presentation as roll sets. For 249.JT7 roll set N.38A-7B. For 248.JT7 roll set N.38A-7B. For 251A.JT9 roll set N.38A-9C. For 247.265JT10 roll set N.38A-10B. Dimension mm Content set Organiser for Nh kg 249.JS7 120x195x45 249.2-3-4-5-6-8-10 CKS.103 0868 249.JT7 230x120 249.2-3-4-5-6-8-10 N.38A-7B 0755 248.JS6 120x190x45 248.2-3-4-5-6-8 CKS.103 0588 248.JT7 265x120 248.2-3-4-5-6-8-10 N.38A-7B 0695 246.JS6 120x190x45 246.2-3-4-5-6-8 CKS.103 0593 246.JT6 200x165 246.2-3-4-5-6-8 N.38A-6C 0545 251A.JS9 120x115x45 251A.1-1.5-2-2.5-3- 3.5-4-5-6 CKS.103 0354 251A.JT9 180x120 251A.1-1.5-2-2.5-3- 3.5-4-5-6 N.38A-9C 0260 247.249JS12 120x180x47 247.2-3-4-5-6-8 249.2-3-4-5-6-8 CKS.103 1076 247.265JT10 180x120 240x60 247.3-4-5 256.4-6 249.3-4-5 263.20 265.18 N.38A-10B 1155 Facom 1 581 Facom
