603 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.577

Каталог FACOM 2013 Инструмент Оборудование Стр. 577 0603 ENG Lab2u

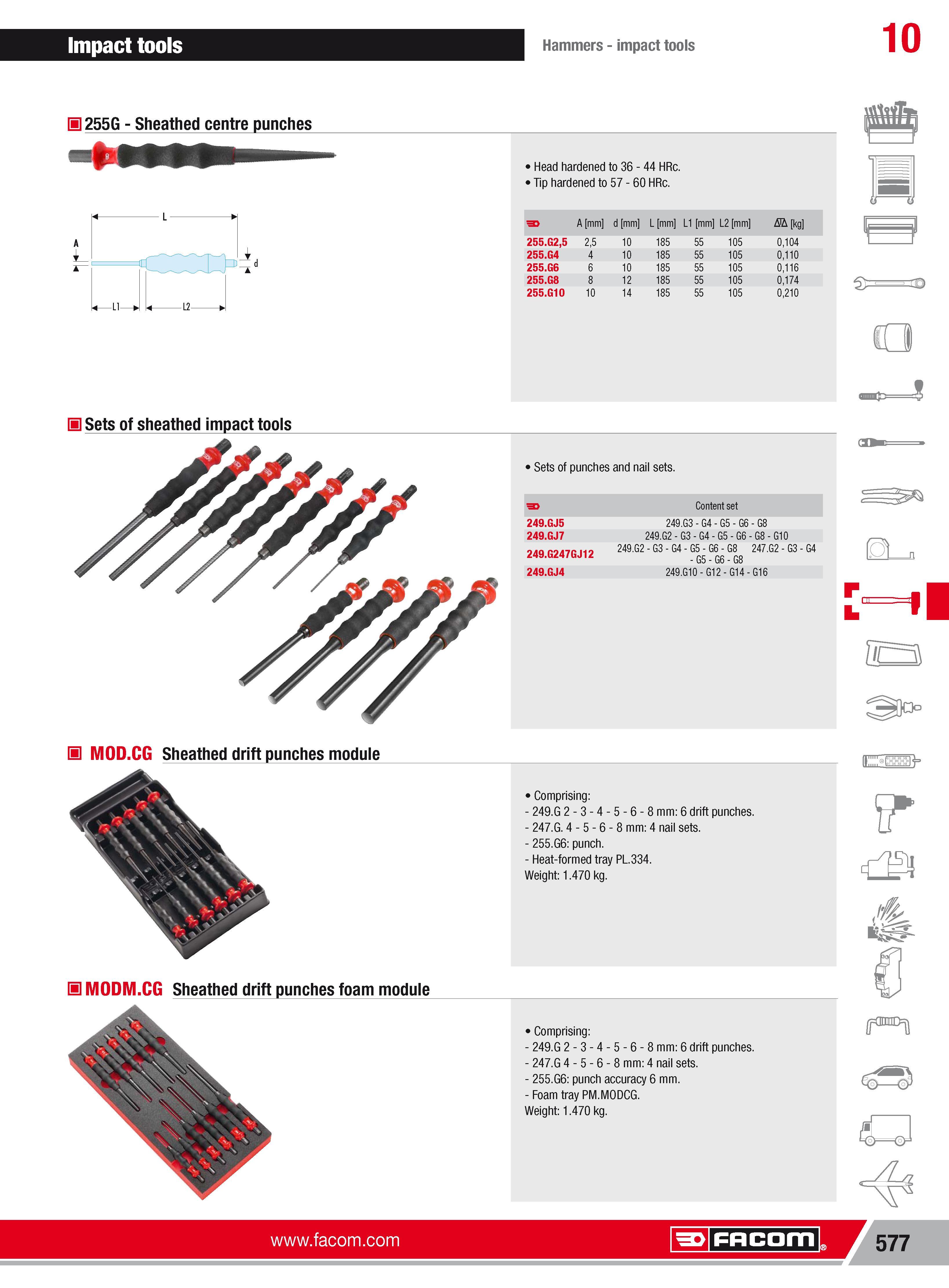

Impact tools Hammers impact tools 10 H 255G Sheathed centre punches L1 Ll L2- Head hardened to 36 44 HRc. Tip hardened to 57 60 HRc. A mm d mm L mm L1 mm L2 mm Nh kg 255.G25 5 2 10 185 55 105 0104 255.G4 4 10 185 55 105 0110 255.G6 6 10 185 55 105 0116 255.G8 8 12 185 55 105 0174 255.G10 10 14 185 55 105 0210 s c 11 Sets of sheathed impact tools H MOD.CG Sheathed drift punches module 1 Sets of punches and nail sets. 3 r Comprising 249.G 2-3-4-5-6-8 mm 6 drift punches. 247.G. 4-5-6-8 mm 4 nail sets. 255.G6 punch. Heat-formed tray PL.334. Weight 1.470 kg. 6Ss 'I H MODM.CG Sheathed drift punches foam module Comprising 249.G 2-3-4-5-6-8 mm 6 drift punches. 247.G 4-5-6-8 mm 4 nail sets. 255.G6 punch accuracy 6 mm. Foam tray PM.MODCG. Weight 1.470 kg. Facom 577
