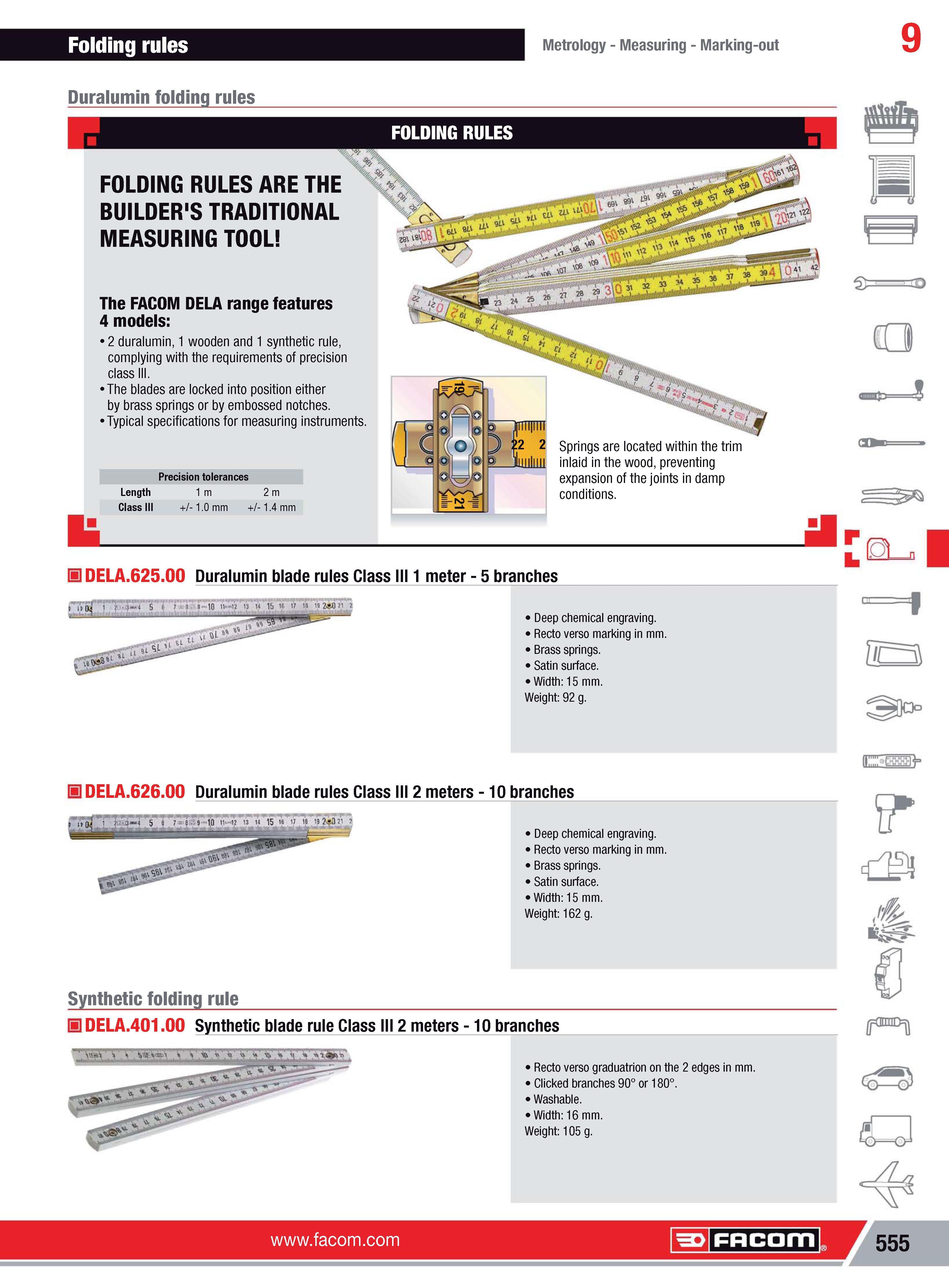

Folding rules Metrology Measuring Marking-out 9 5 -3 o anni 3 Deep chemical engraving. Recto verso marking in mm. Brass springs. Satin surface. Width 15 mm. Weight 92 g. Duralumin folding rules FOLDING RULES ARE THE BUILDER'S TRADITIONAL MEASURING TOOL The FACOM DELA range features 4 models 2 duralumin 1 wooden and 1 synthetic rule complying with the requirements of precision class III. The blades are locked into position either by brass springs or by embossed notches. Typical specifications for measuring instruments. Precision tolerances Length 1m 2 m Class + -1.0mm + -1.4mm ll DELA.625.00 Duralumin blade rules Class 1 meter 5 branches Springs are located within the trim inlaid in the wood preventing expansion of the joints in damp conditions. E DELA.626.00 Duralumin blade rules Class 2 meters 10 branches Deep chemical engraving. Recto verso marking in mm. Brass springs. Satin surface. Width 15 mm. Weight 162 g. t Synthetic folding rule H DELA.401.00 Synthetic blade rule Class 2 meters 10 branches n. Recto verso graduation on the 2 edges in mm. Clicked branches 90 or 180. Washable. Width 16 mm. Weight 105 g. ;l i l 555 Facom
