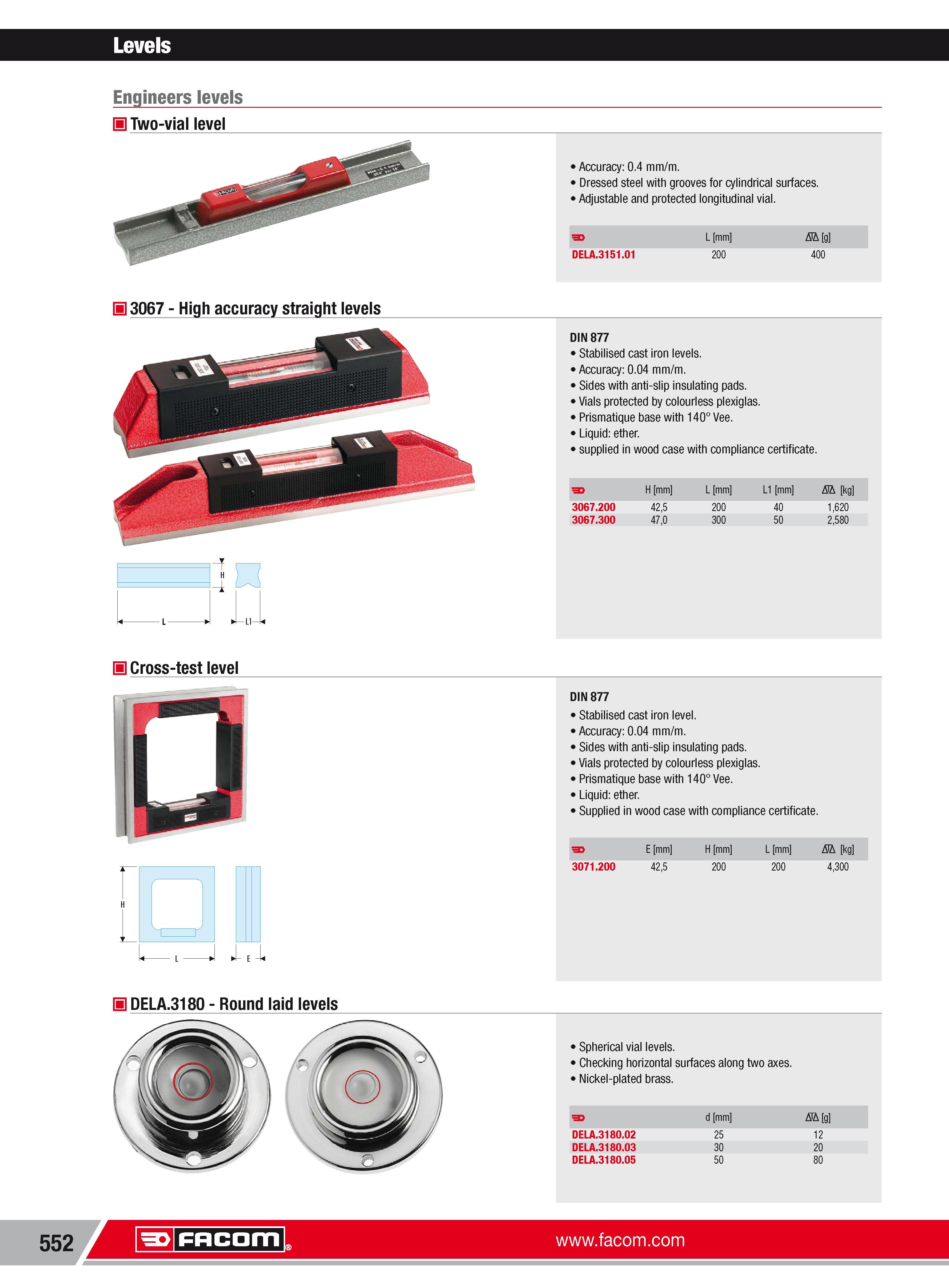

578 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.552

Каталог FACOM 2013 Инструмент Оборудование Стр. 552 0578 ENG Lab2u

Levels Engineers levels H Two-vial level Accuracy 0.4 mm m. Dressed steel with grooves for cylindrical surfaces. Adjustable and protected longitudinal vial. L mm AlA g DELA.3151.01 200 400 3067 High accuracy straight levels H A DIN 877 Stabilised cast iron levels. Accuracy 0.04 mm m. Sides with anti-slip insulating pads. Vials protected by colourless plexiglas. Prismatique base with 140 Vee. Liquid ether. supplied in wood case with compliance certificate. H mm L mm L1 mm AlA kg 3067.200 425 200 40 1620 3067.300 470 300 50 2580 H Cross-test level J DIN 877 Stabilised cast iron level. Accuracy 0.04 mm m. Sides with anti-slip insulating pads. Vials protected by colourless plexiglas. Prismatique base with 140 Vee. Liquid ether. Supplied in wood case with compliance certificate. 3071.200 E mm 425 H mm 200 L mm 200 MA kg 4300 H DELA.3180 Round laid levels Spherical vial levels. Checking horizontal surfaces along two axes. Nickel-plated brass. d mm AA g DELA.3180.02 Cn 12 DELA.3180.03 30 20 DELA.3180.05 50 80 552 Facom
