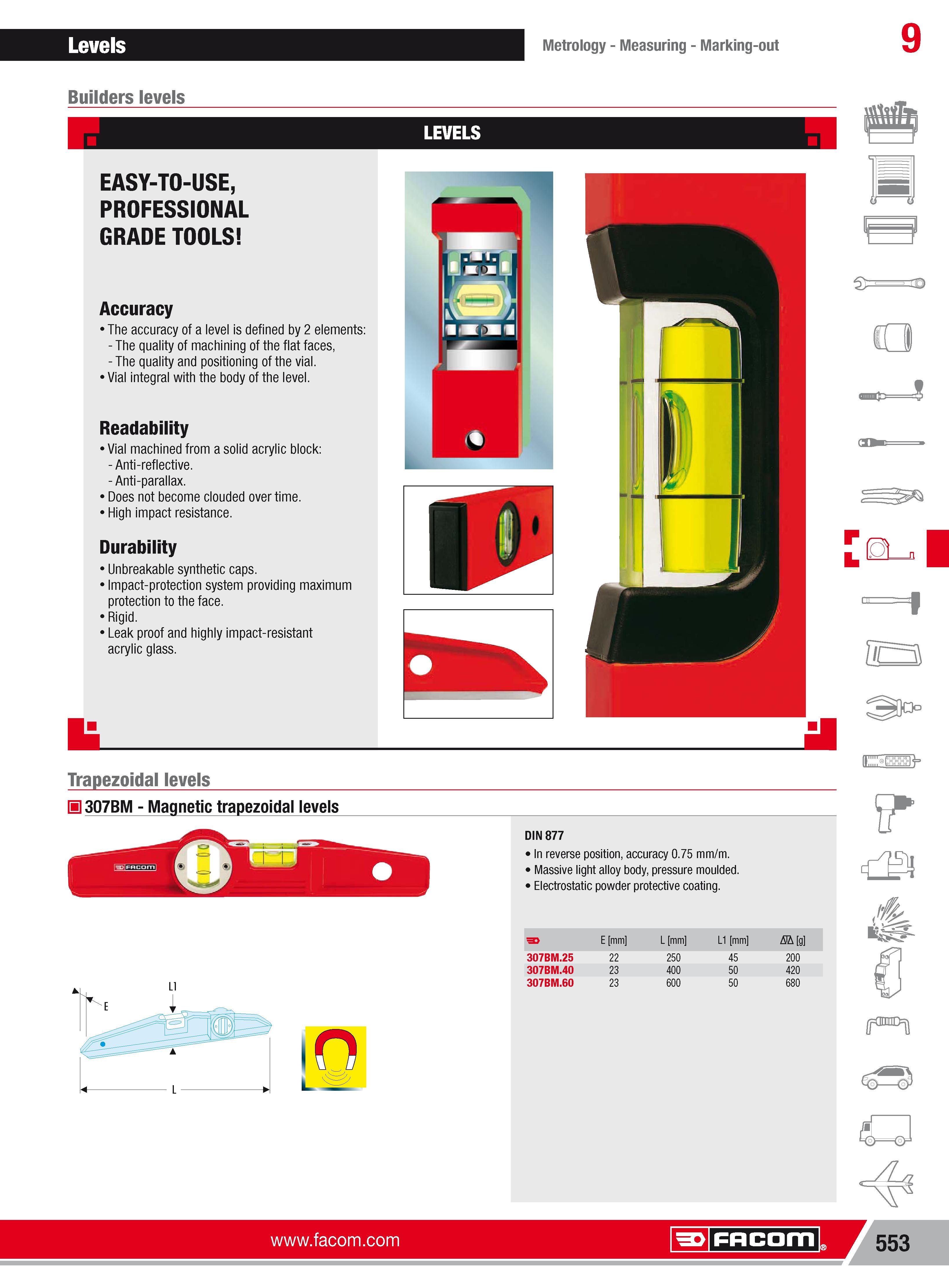

Levels Metrology Measuring Marking-out 9 Builders levels EASY-TO-USE PROFESSIONAL GRADE TOOLS Accuracy The accuracy of a level is defined by 2 elements The quality of machining of the flat faces The quality and positioning of the vial. Vial integral with the body of the level. Readability Vial machined from a solid acrylic block -Anti-reflective. -Anti-parallax. Does not become clouded overtime. High impact resistance. Durability Unbreakable synthetic caps. Impact-protection system providing maximum protection to the face. Rigid. Leak proof and highly impact-resistant acrylic glass. s Trapezoidal levels 307BM Magnetic trapezoidal levels DIN 877 In reverse position accuracy 0.75 mm m. Massive light alloy body pressure moulded. Electrostatic powder protective coating. n 307BM.25 307BM.40 307BM.60 E mm 22 23 23 L mm 250 400 600 L1 mm 45 50 50 M g 200 420 680 Facom 553
