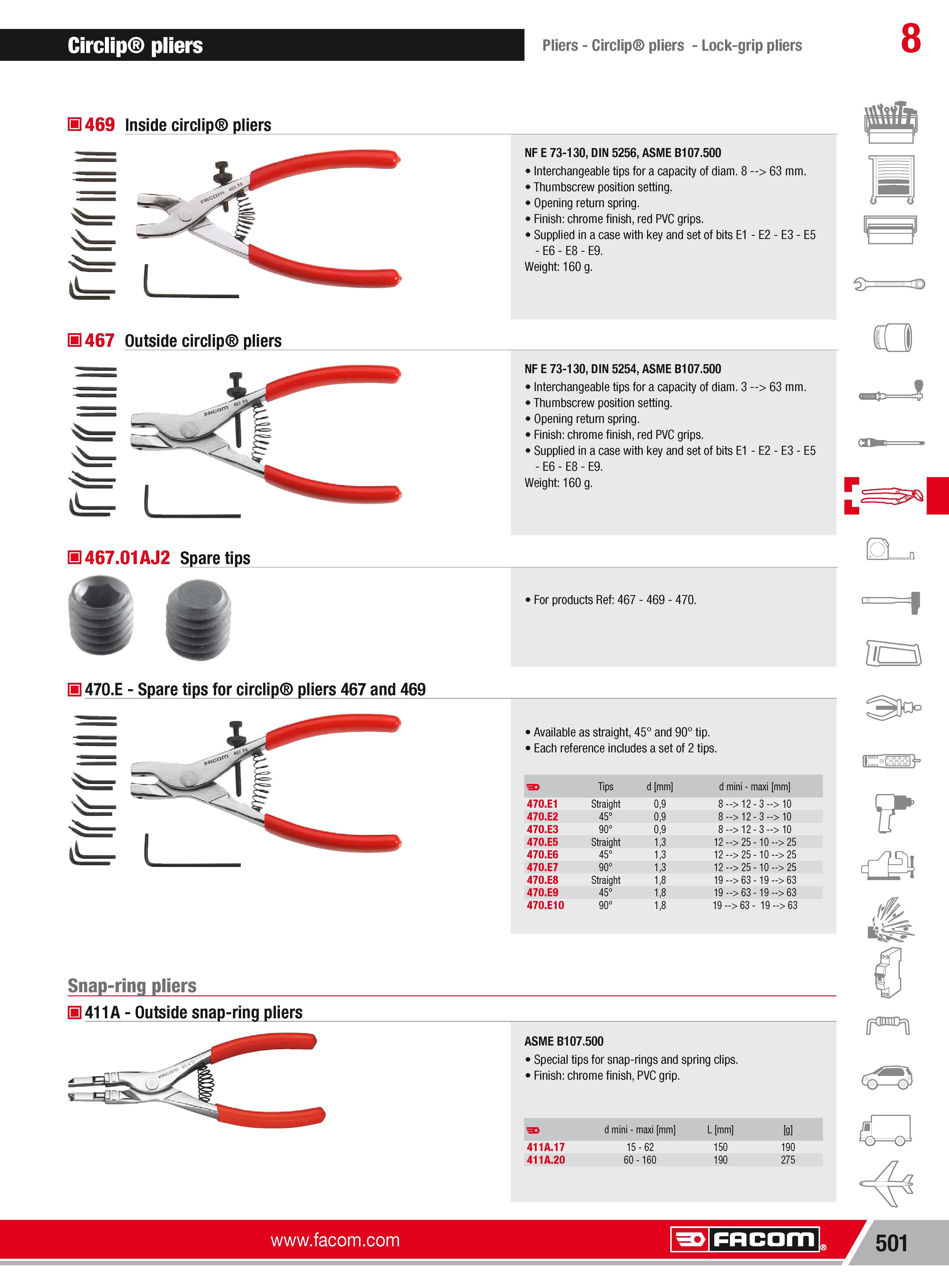

527 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.501

Каталог FACOM 2013 Инструмент Оборудование Стр. 501 0527 ENG Lab2u

Circlip pliers Pliers Circlip pliers Lock-grip pliers 8 0469 Inside circlip pliers H467 Outside circlip pliers NF E 73-130 DIN 5256 ASME B107.500 Interchangeable tips for a capacity of diam. 8 63 mm. Thumbscrew position setting. Opening return spring. Finish chrome finish red PVC grips. Supplied in a case with key and set of bits E1 -E2-E3- E5 -E6-E8- E9. Weight 160 g. 4 NF E 73-130 DIN 5254 ASME B107.500 Interchangeable tips for a capacity of diam. 3 63 mm. Thumbscrew position setting. Opening return spring. Finish chrome finish red PVC grips. Supplied in a case with key and set of bits E1 -E2-E3- E5 -E6-E8- E9. Weight 160 g. H467.01AJ2 Spare tips 470.E Spare tips for circlip pliers 467 and 469 For products Ref 467 469 470. Available as straight 45 and 90 tip. Each reference includes a set of 2 tips. Tips d mm d mini maxi mm 470.E1 Straight 09 8 12-3 10 470.E2 45 09 8 12-3 10 470.E3 90 09 8 12-3 10 470.E5 Straight 13 12 25-10 25 470.E6 45 13 12 25-10 25 470.E7 90 13 12 25-10 25 470.E8 Straight 18 19 63-19 63 470.E9 45 18 19 63-19 63 470.E10 90 18 19 63- 19 63 Snap-ring pliers 411A Outside snap-ring pliers Facom ASME B107.500 Special tips for snap-rings and spring clips. Finish chrome finish PVC grip. 3 d mini maxi mm L mm g 411A.17 15-62 150 190 411A.20 60-160 190 275 Facom 501
