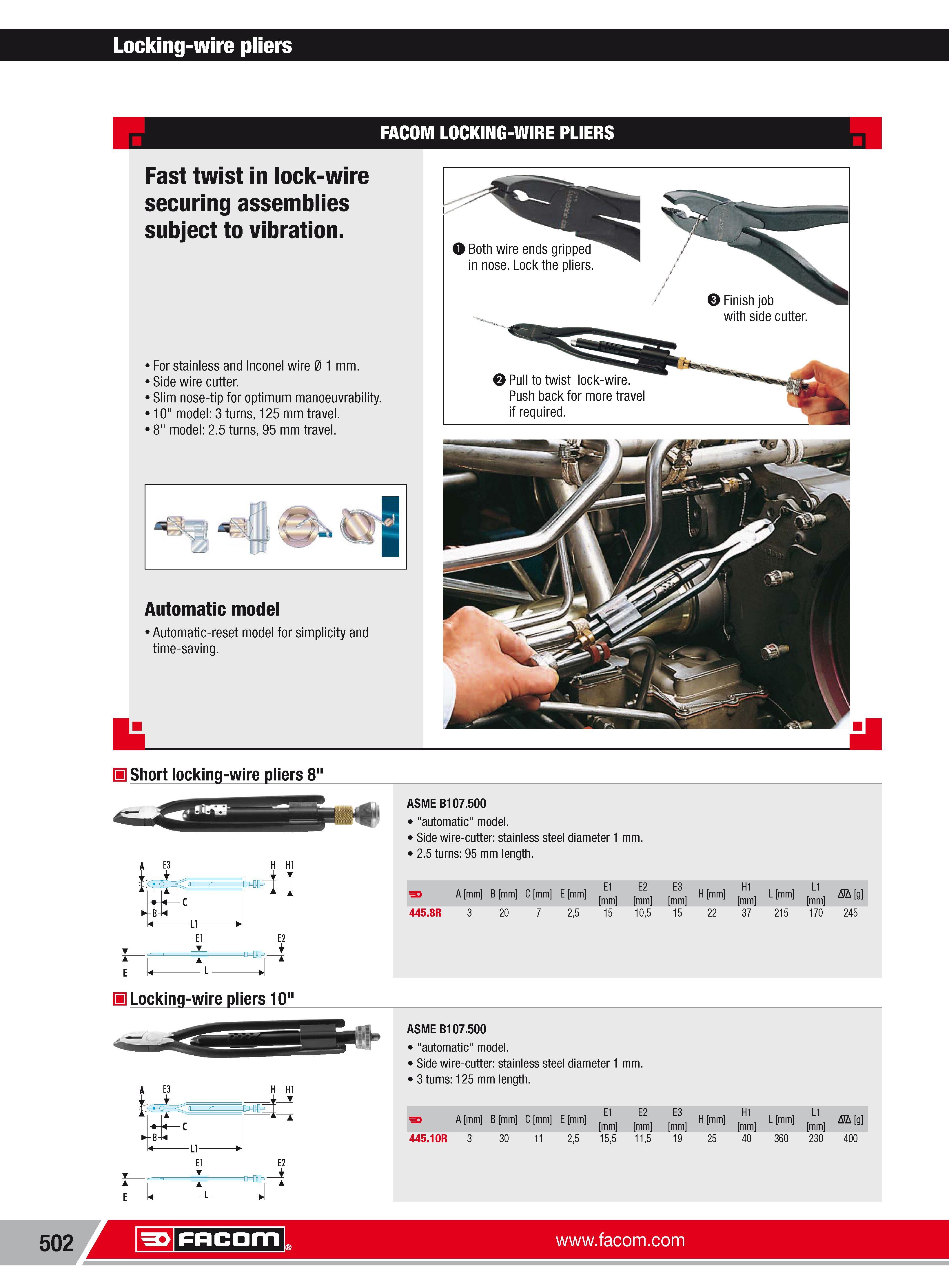

528 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.502

Каталог FACOM 2013 Инструмент Оборудование Стр. 502 0528 ENG Lab2u

Locking-wire pliers FACOM LOCKING-WIRE PLIERS Fast twist in lock-wire securing assemblies subject to vibration. 1 For stainless and Inconel wire 0 1 mm. 1 Side wire cutter. 1 Slim nose-tip for optimum manoeuvrability. 110" model 3 turns 125 mm travel. 18" model 2.5 turns 95 mm travel. O Both wire ends gripped in nose. Lockthe pliers. 0 Pull to twist lock-wire. Push back for more travel if required. Automatic model Automatic-reset model for simplicity and time-saving. H Short locking-wire pliers 8" b 0 Finish job with side cutter. 0iSW A E3 H HI ASME B107.500 "automatic" model. Side wire-cutter stainless steel diameter 1 mm. 2.5 turns 95 mm length. T c -4 3 A mm B mm C mm E mm E1 mm E2 mm E3 mm H mm H1 mm L mm L1 mm Nh g -B- 445.8R 3 20 7 25 15 105 15 22 37 215 170 245 LI El f E E2 Locking-wire pliers 10" ASME B107.500 "automatic" model. Side wire-cutter stainless steel diameter 1 mm. 3turns 125 mm length. E1 F2 E3 H1 11 3 A mm B mm C mm E mm H mm L mm AA g mm mm mm mm mm LMJ 445.10R 3 30 11 25 155 115 19 25 40 360 230 400 502 Facom
