524 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.498

Каталог FACOM 2013 Инструмент Оборудование Стр. 498 0524 ENG Lab2u

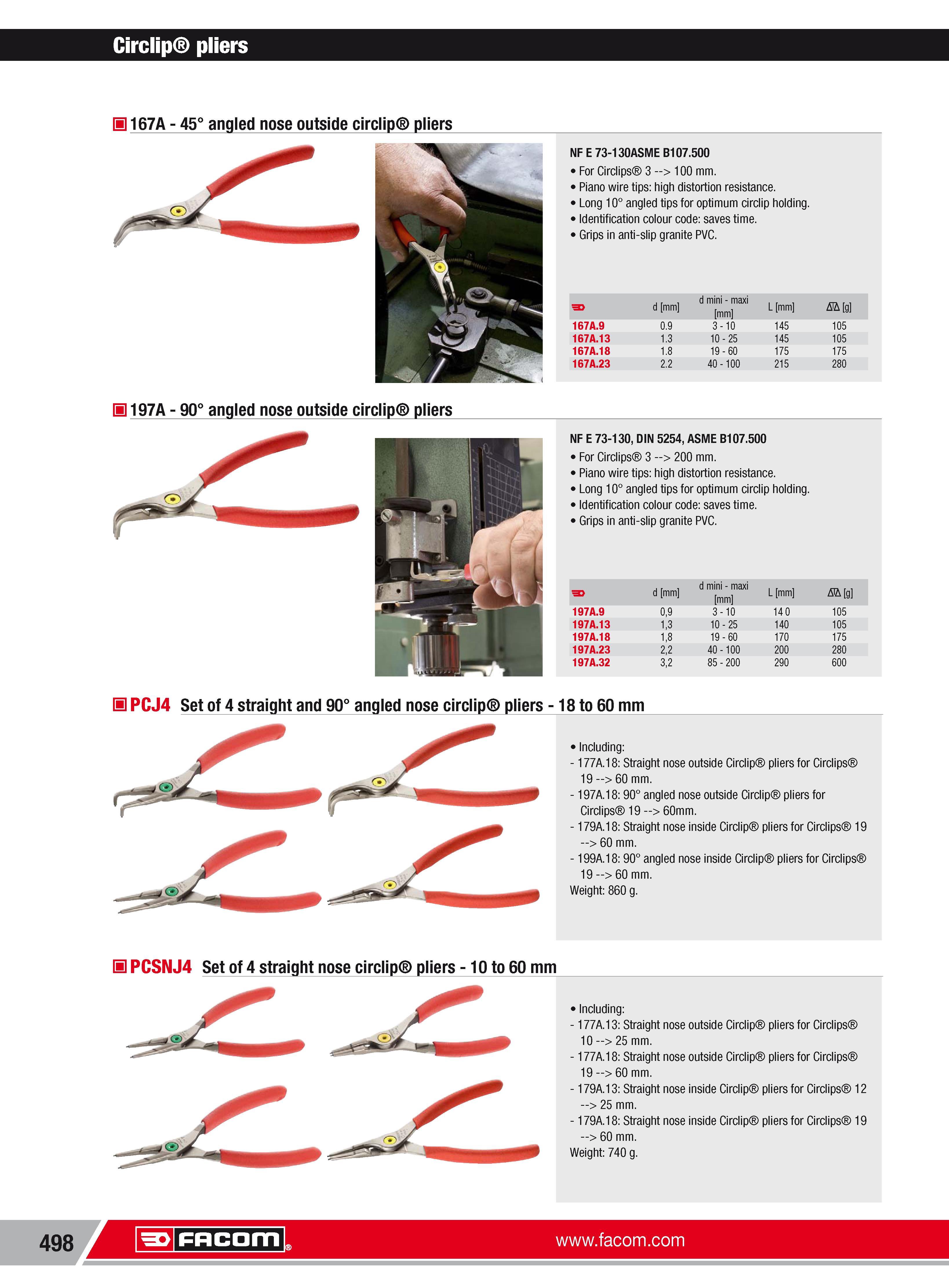

Circlip pliers 167A 45 angled nose outside circlip pliers NF E 73-130 ASME B107.500 For Circlips 3 100 mm. Piano wire tips high distortion resistance. Long 10 angled tips for optimum circlip holding. Identification colour code saves time. Grips in anti-slip granite PVC. d mm d mini maxi mm L mm Nh g 167A.9 0.9 3 10 145 105 167A.13 1.3 10 25 145 105 167A.18 1.8 19-60 175 175 167A.23 2.2 40 100 215 280 197A 90 angled nose outside circlip pliers NF E 73-130 DIN 5254 ASME B107.500 For Circlips 3 200 mm. Piano wire tips high distortion resistance. Long 10 angled tips for optimum circlip holding. Identification colour code saves time. Grips in anti-slip granite PVC. d mm d mini maxi mm L mm Nh g 197A.9 09 3 10 14 0 105 197A.13 13 10 25 140 105 197A.18 18 19-60 170 175 197A.23 22 40 100 200 280 197A.32 32 85 200 290 600 H PCJ4 Set of 4 straight and 90 angled nose circlip pliers 18 to 60 mm Including 177A.18 Straight nose outside Circlip pliers for Circlips 19 60 mm. 197A.18:90 angled nose outside Circlip pliers for Circlips 19 60mm. 179A.18 Straight nose inside Circlip pliers for Circlips 19 60 mm. 199A.18:90 angled nose inside Circlip pliers for Circlips 19 60 mm. Weight 860 g. H PCSNJ4 Set of 4 straight nose circlip pliers 10 to 60 mm 498 Including 177A.13 Straight nose outside Circlip pliers for Circlips 10 25 mm. 177A.18 Straight nose outside Circlip pliers for Circlips 19 60 mm. 179A.13 Straight nose inside Circlip pliers for Circlips 12 25 mm. 179A.18 Straight nose inside Circlip pliers for Circlips 19 60 mm. Weight 740 g. Facom
