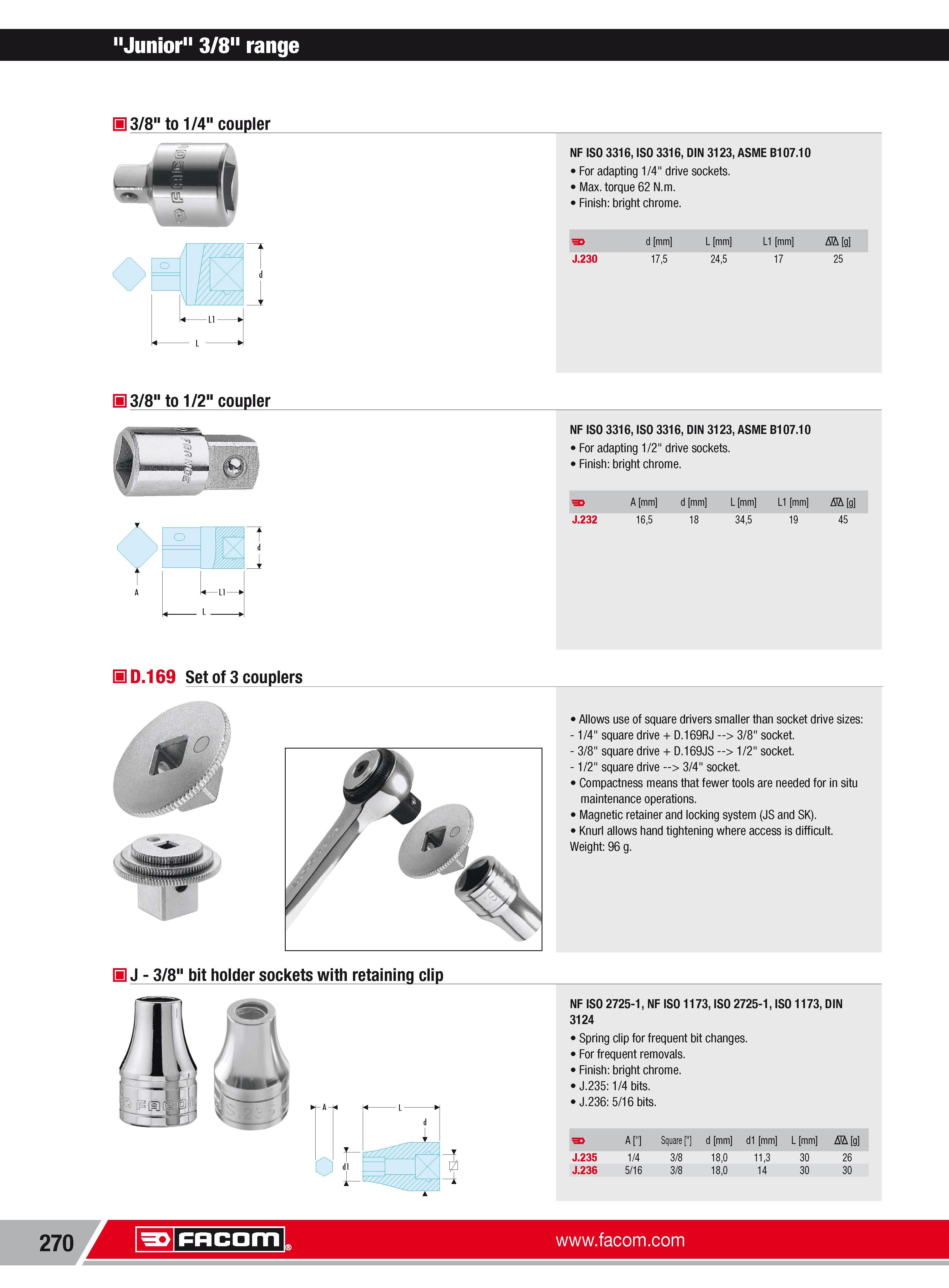

"Junior" 3/8" range 3/8" to 1/4" coupler NF ISO 3316 ISO 3316 DIN 3123 ASME B107.10 For adapting 1/4" drive sockets. Max. torque 62 N.m. Finish bright chrome. 3 d mm L mm L1 mm Nh g J.230 175 245 17 25 3/8" to 1/2" coupler o HD.169 Set of 3 couplers J 3/8" bit holder sockets with retaining clip Allows use of square drivers smaller than socket drive sizes -1/4" square drive + D.169RJ 3/8" socket. 3/8" square drive + D.169JS 1/2" socket. -1 2" square drive 3/4" socket. Compactness means that fewer tools are needed for in situ maintenance operations. Magnetic retainer and locking system (JS and SK). Knurl allows hand tightening where access is difficult. Weight 96 g. ii r- L d 1 NF ISO 2725-1 NF ISO 1173 ISO 2725-1 ISO 1173 DIN 3124 Spring clip for frequent bit changes. For frequent removals. Finish bright chrome. J.235:1 4 bits. J.236 5 16 bits. A " Square " d mm d1 mm L mm Nh g J.235 1 4 3 8 180 113 30 26 J.236 5 16 3 8 180 14 30 30 270 A Facom
