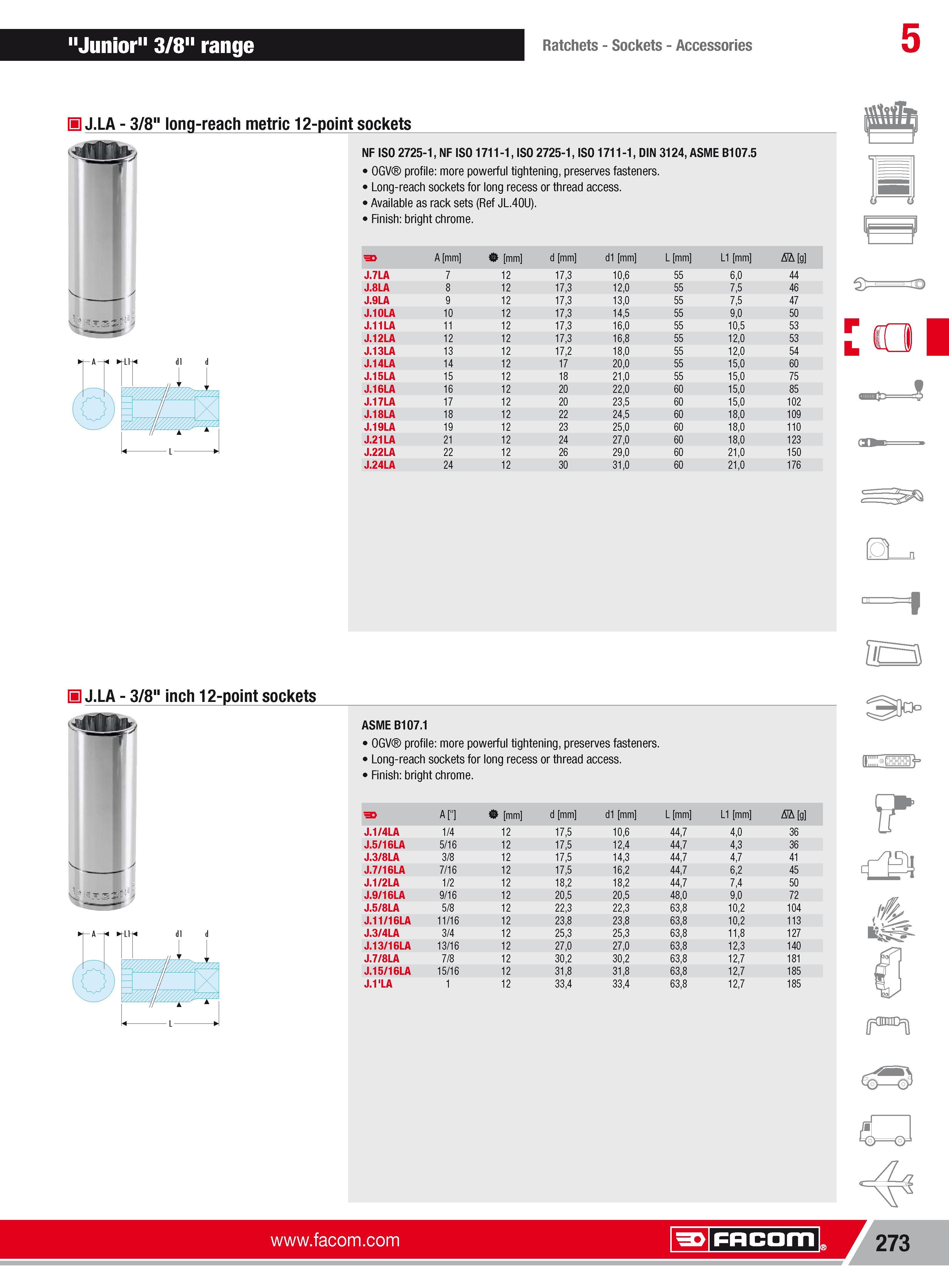

299 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.273

Каталог FACOM 2013 Инструмент Оборудование Стр. 273 0299 ENG Lab2u

"Junior" 3/8" range Ratchets Sockets Accessories 5 J.LA 3/8" long-reach metric 12-point sockets A W-Ll dl d L NF ISO 2725-1 NF ISO 1711-1 ISO 2725-1 ISO 1711-1 DIN 3124 ASME B107.5 OGV profile more powerful tightening preserves fasteners. Long-reach sockets for long recess or thread access. Available as rack sets (Ref JL.40U). Finish bright chrome. A mm 0 mm d mm dl mm L mm L1 mm Nh g J.7LA 7 12 173 106 55 60 44 J.8LA 8 12 173 120 55 75 46 J.9LA 9 12 173 130 55 75 47 J.10LA 10 12 173 145 55 90 50 J.11LA 11 12 173 160 55 105 53 J.12LA 12 12 173 168 55 120 53 J.13LA 13 12 172 180 55 120 54 J.14LA 14 12 17 200 55 150 60 J.15LA 15 12 18 210 55 150 75 J.16LA 16 12 20 220 60 150 85 J.17LA 17 12 20 235 60 150 102 J.18LA 18 12 22 245 60 180 109 J.19LA 19 12 23 250 60 180 110 J.21LA 21 12 24 270 60 180 123 J.22LA 22 12 26 290 60 210 150 J.24LA 24 12 30 310 60 210 176 H J.LA 3/8" inch 12-point sockets -A Mi- di d L ASME B107.1 OGV profile more powerful tightening preserves fasteners. Long-reach sockets for long recess or thread access. Finish bright chrome. J.l'LA 12 334 334 631 127 185 273 Facom
