295 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.269

Каталог FACOM 2013 Инструмент Оборудование Стр. 269 0295 ENG Lab2u

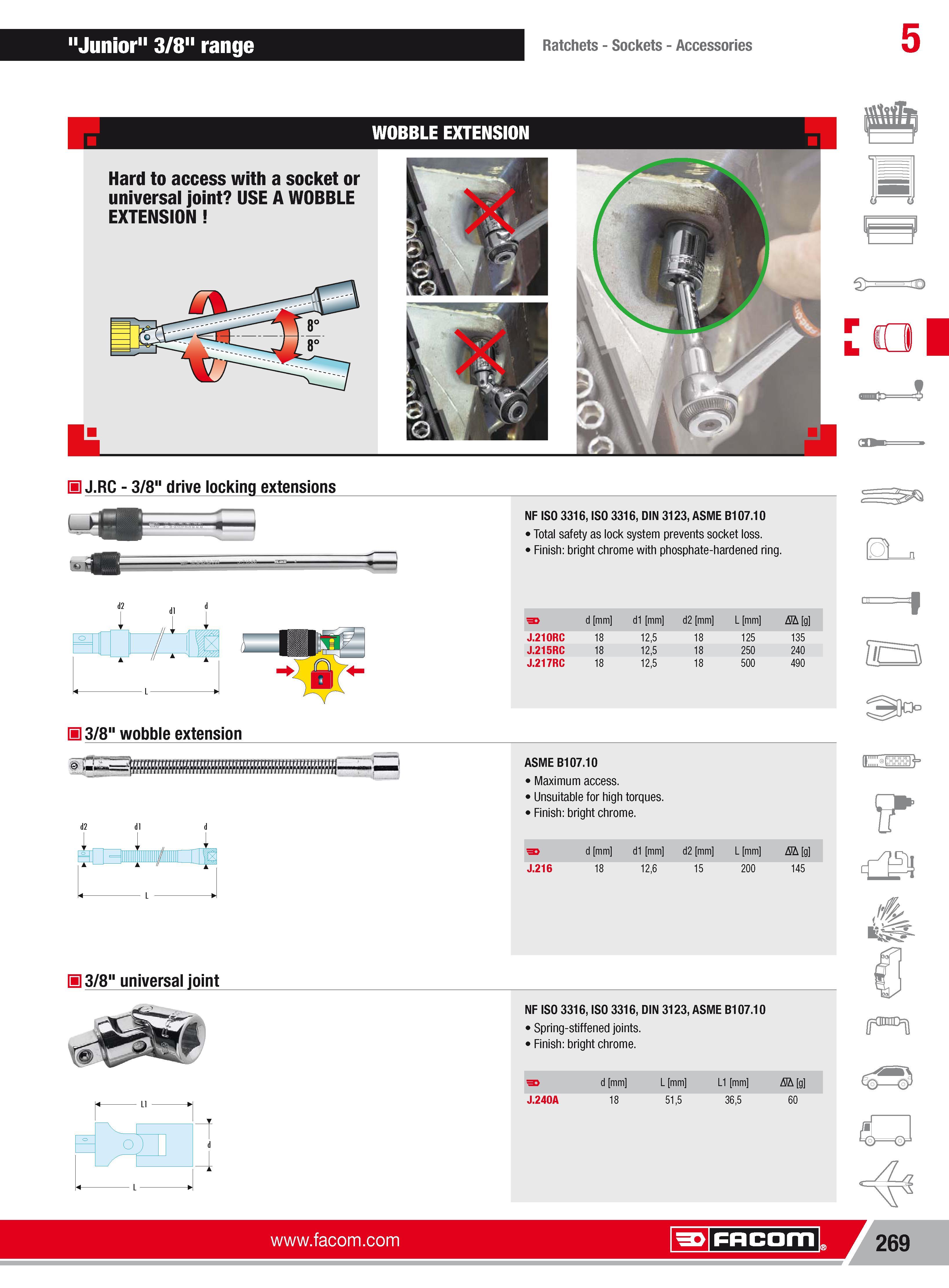

"Junior" 3/8" range Ratchets Sockets Accessories 5 J.RC 3/8" drive locking extensions 113 8" wobble extension 3/8" universal joint NF ISO 3316 ISO 3316 DIN 3123 ASME B107.10 Total safety as lock system prevents socket loss. Finish bright chrome with phosphate-hardened ring. d mm d1 mm d2 mm L mm Nh g J.210RC 18 125 18 125 135 J.215RC 18 125 18 250 240 J.217RC 18 125 18 500 490 ASME B107.10 Maximum access. Unsuitable for high torques. Finish bright chrome. d mm dl mm d2 mm L mm Nh g J.216 18 126 15 200 145 c M s -O1 Facom 269
