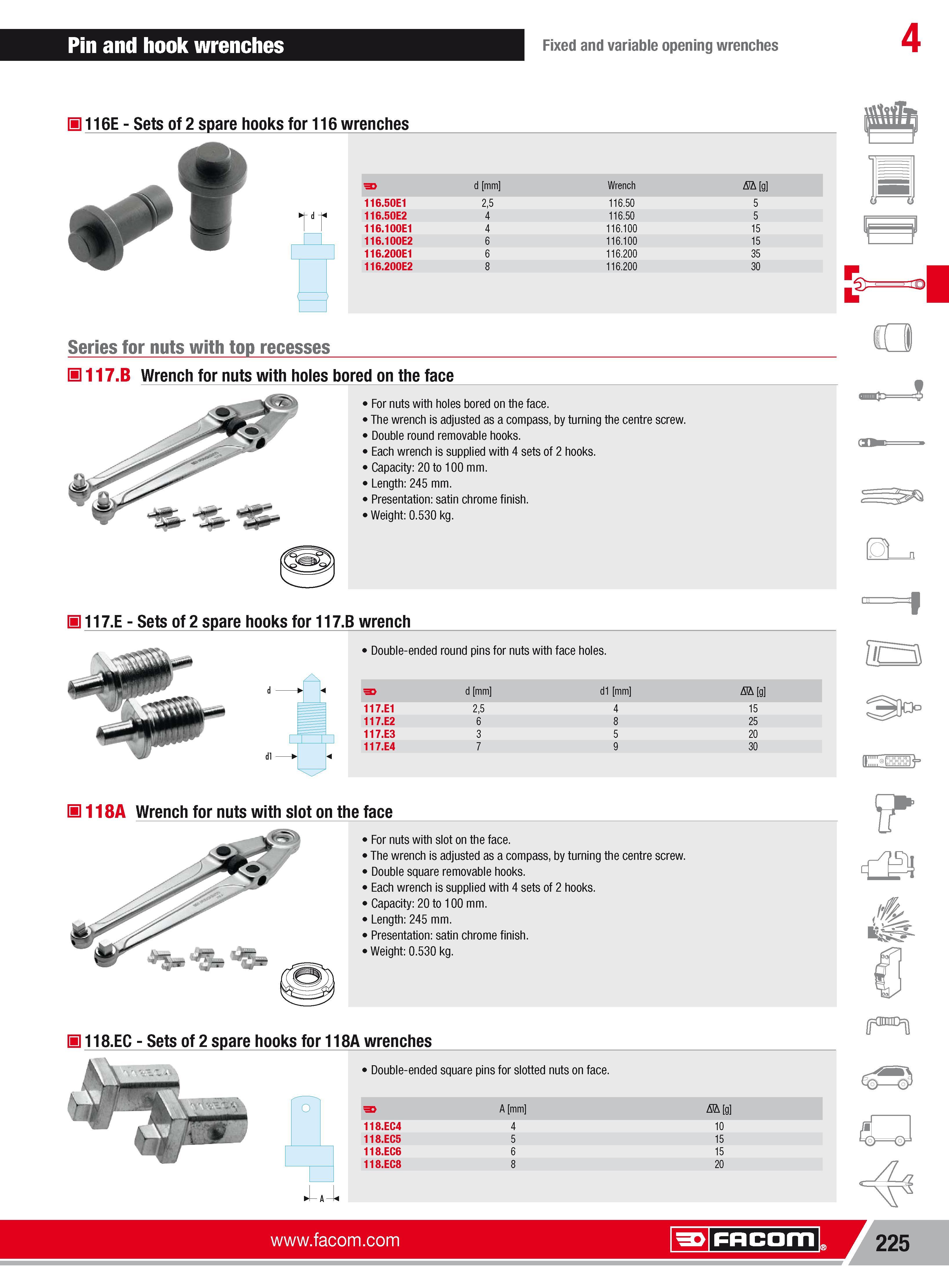

251 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.225

Каталог FACOM 2013 Инструмент Оборудование Стр. 225 0251 ENG Lab2u

Pin and hook wrenches Fixed and variable opening wrenches 4 116E Sets of 2 spare hooks for 116 wrenches Series for nuts with top recesses H117.B Wrench for nuts with holes bored on the face For nuts with holes bored on the face. The wrench is adjusted as a compass by turning the centre screw. Double round removable hooks. Each wrench is supplied with 4 sets of 2 hooks. Capacity 20to100mm. Length 245 mm. Presentation satin chrome finish. Weight 0.530 kg. 117.E Sets of 2 spare hooks for 117.B wrench Double-ended round pins for nuts with face holes. ID 118A Wrench for nuts with slot on the face For nuts with slot on the face. The wrench is adjusted as a compass by turning the centre screw. Double square removable hooks. Each wrench is supplied with 4 sets of 2 hooks. Capacity 20to100mm. Length 245 mm. Presentation satin chrome finish. Weight 0.530 kg. II 118.EC Sets of 2 spare hooks for 118A wrenches Double-ended square pins for slotted nuts on face. o A- Facom d mm Wrench Nh g 116.50E1 LO 116.50 5 116.50E2 4 116.50 5 116.100E1 4 116.100 15 116.100E2 6 116.100 15 116.200E1 6 116.200 35 116.200E2 8 116.200 30 i d mm d1 mm M g 117.E1 25 4 15 117.E2 6 8 25 117.E3 3 5 20 117.E4 7 9 30 M s A mm Nh g 118.EC4 4 10 118.EC5 5 15 118.EC6 6 15 118.EC8 8 20 225 Facom
