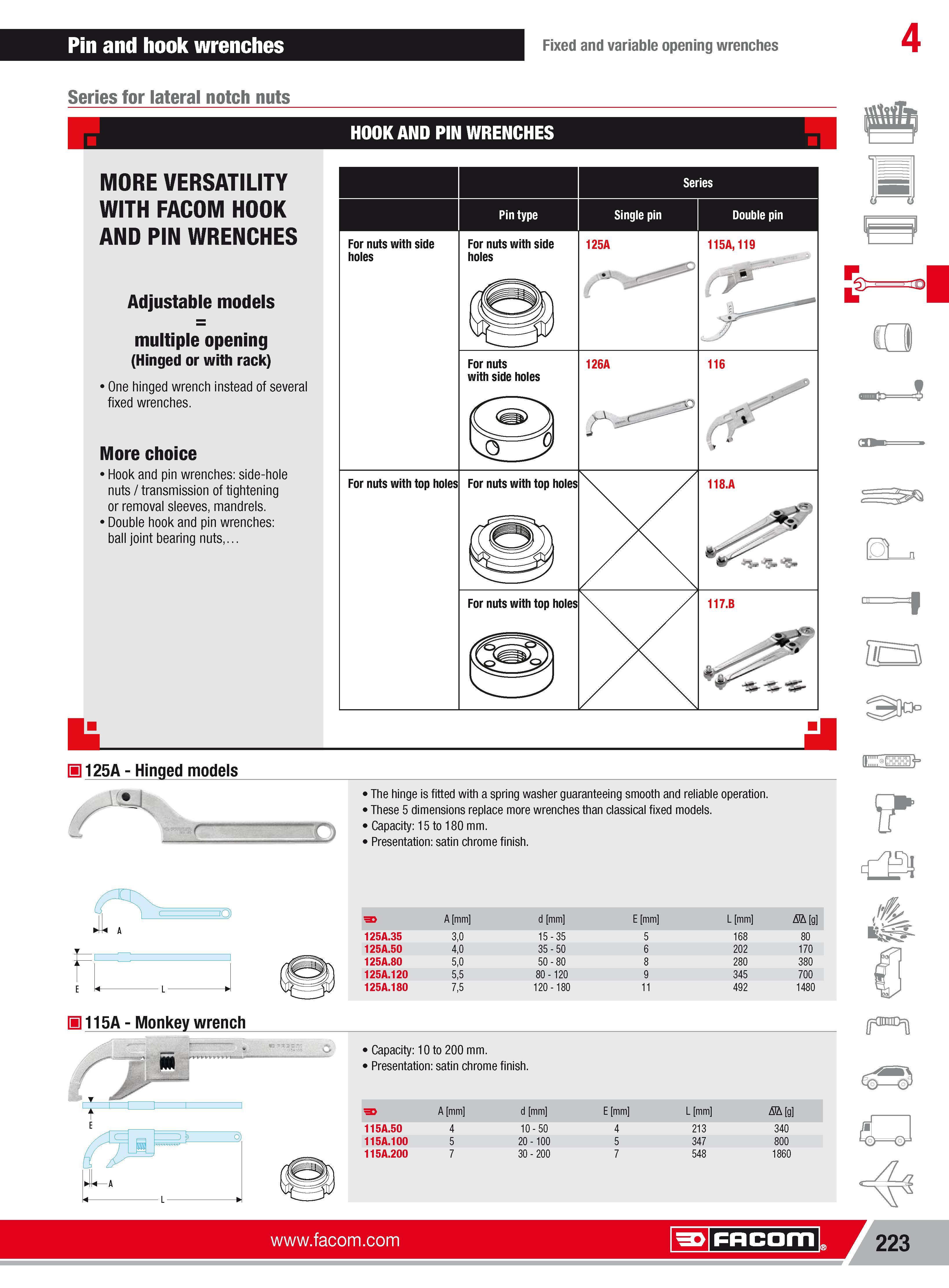

249 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.223

Каталог FACOM 2013 Инструмент Оборудование Стр. 223 0249 ENG Lab2u

Fixed and variable opening wrenches MORE VERSATILITY WITH FACOM HOOK AND PIN WRENCHES Adjustable models multiple opening (Hinged or with rack) One hinged wrench instead of several Axed wrenches. More choice Hook and pin wrenches side-hole nuts transmission of tightening or removal sleeves mandrels. Double hook and pin wrenches ball joint bearing nuts... t 125A Hinged models E U -L 115A Monkey wrench nh' MM E JL. For nuts with side holes Pin type For nuts with side holes Single pin Double pin i c The hinge is fitted with a spring washer guaranteeing smooth and reliable operation. These 5 dimensions replace more wrenches than classical fixed models. Capacity 15to180mm. Presentation satin chrome finish. A mm d mm E mm L mm Nh g 125A.35 30 15 35 5 168 80 125A.50 40 35 50 6 202 170 125A.80 50 50 80 8 280 380 125A.120 55 80 120 9 345 700 125A.180 75 120 180 11 492 1480 Capacity 10to 200 mm. Presentation satin chrome finish. A mm d mm E mm L mm Nh g 115A.50 4 10 50 4 213 340 115A.100 5 20 100 5 347 800 115A.200 7 30 200 7 548 1860 Series for lateral notch nuts d HOOK AND PIN WRENCHES b Pin and hook wrenches Facom 223
