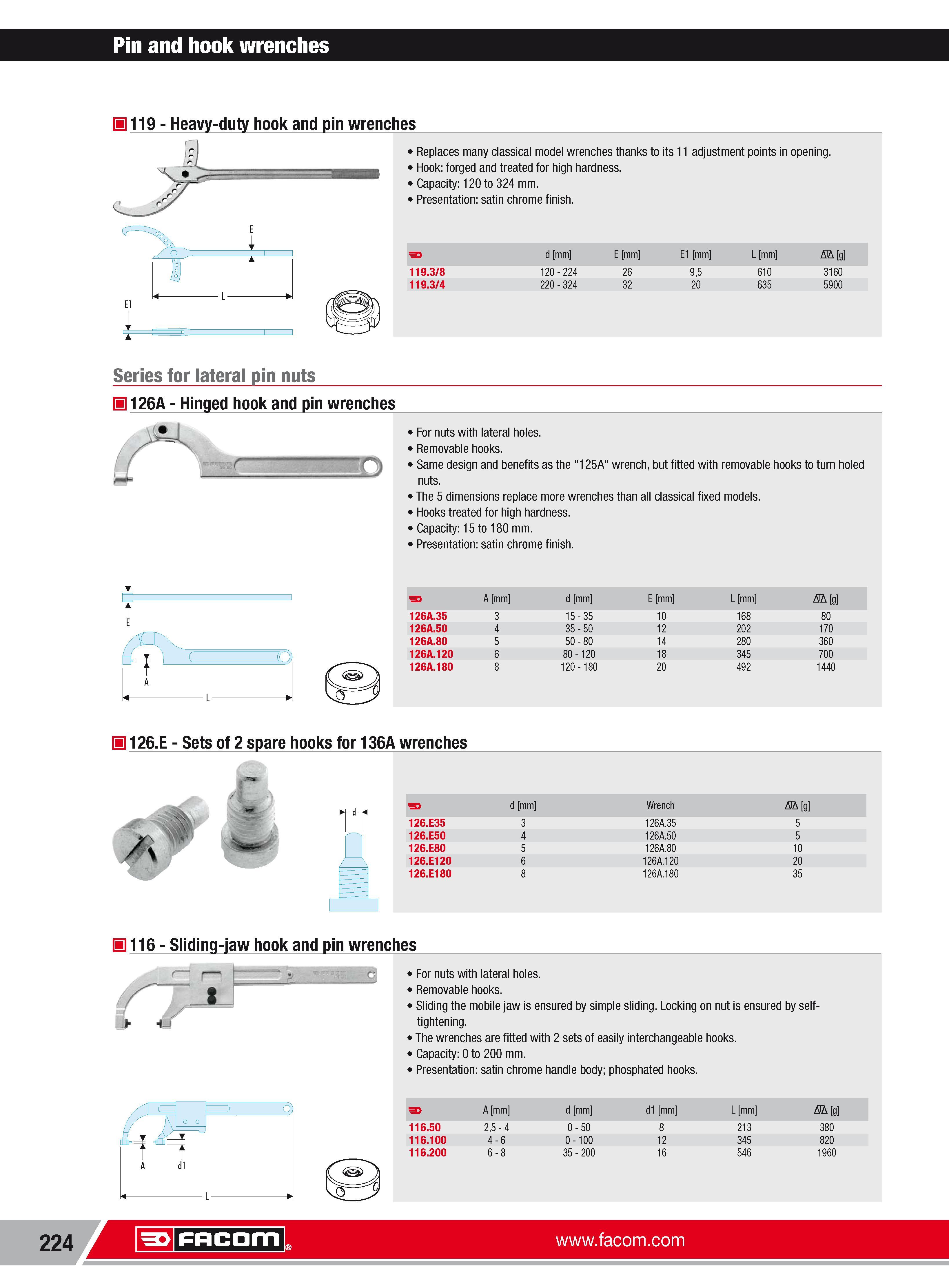

250 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.224

Каталог FACOM 2013 Инструмент Оборудование Стр. 224 0250 ENG Lab2u

Pin and hook wrenches 119 Heavy-duty hook and pin wrenches Replaces many classical model wrenches thanks to its 11 adjustment points in opening. Hook forged and treated for high hardness. Capacity 120 to 324 mm. Presentation satin chrome finish. 3 d mm E mm E1 mm L mm AA g 119.3 8 120 224 26 95 610 3160 119.3 4 220 324 32 20 635 5900 Series for lateral pin nuts 126A Hinged hook and pin wrenches For nuts with lateral holes. Removable hooks. Same design and benefits as the "125A" wrench but fitted with removable hooks to turn holed nuts. The 5 dimensions replace more wrenches than all classical fixed models. Hooks treated for high hardness. Capacity 15to180mm. Presentation satin chrome finish. 3 A mm d mm E mm L mm AA g 126A.35 3 15 35 10 168 80 126A.50 4 35 50 12 202 170 126A.80 5 50 80 14 280 360 126A.120 6 80 120 18 345 700 126A.180 8 120 180 20 492 1440 126.E Sets of 2 spare hooks for 136A wrenches H- 126.E180 126A.180 35 U116 Sliding-jaw hook and pin wrenches For nuts with lateral holes. Removable hooks. Sliding the mobilejaw is ensured by simple sliding. Locking on nut is ensured by selftightening. The wrenches are fitted with 2 sets of easily interchangeable hooks. Capacity 0 to 200 mm. Presentation satin chrome handle body; phosphated hooks. A mm d mm d1 mm L mm AA g 116.50 25-4 0 50 8 213 380 116.100 4-6 0 100 12 345 820 116.200 6 8 35 200 16 546 1960 224 Facom A L 8
