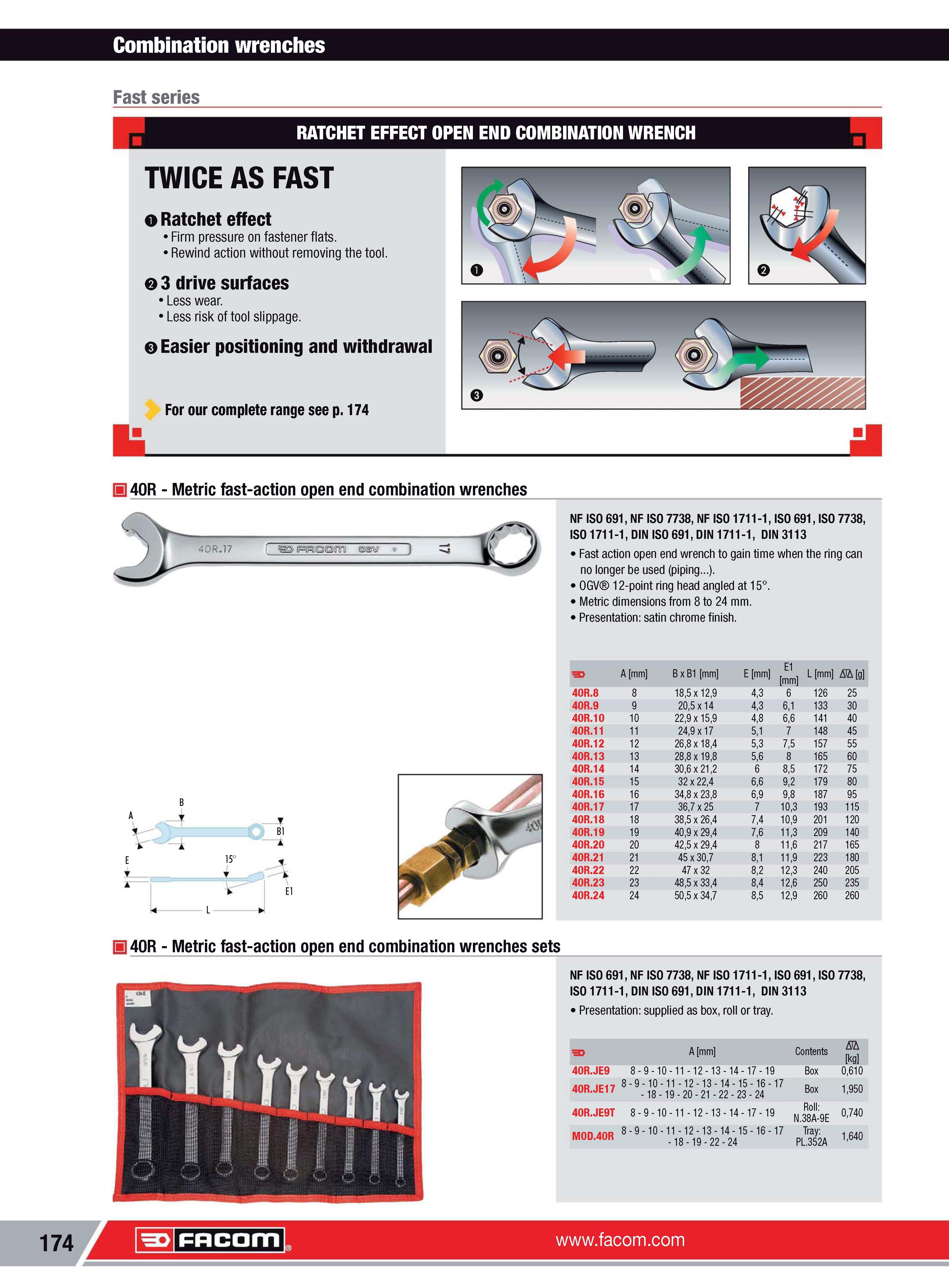

200 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.174

Каталог FACOM 2013 Инструмент Оборудование Стр. 174 0200 ENG Lab2u

Combination wrenches Fast series RATCHET EFFECT OPEN END COMBINATION WRENCH TWICE AS FAST o Ratchet effect Firm pressure on fastenerflats. Rewind action without removing the tool. 0 3 drive surfaces Less wear. Less risk of tool slippage. 0 Easier positioning and withdrawal For our complete range see p. 174 H 40R Metric fast-action open end combination wrenches 40R.17 NF ISO 691 NF ISO 7738 NF ISO 1711-1 ISO 691 ISO 7738 ISO 1711-1 DIN ISO 691 DIN 1711-1 DIN 3113 Fast action open end wrench to gain time when the ring can no longer be used (piping...). OGV 12-point ring head angled at 15. Metric dimensions from 8 to 24 mm. Presentation satin chrome finish. B A j B1 Hr 15c T k El 40R Metric fast-action open end combination wrenches sets 174 A mm B x B1 mm E mm E1 mm L mm .a g 40R.8 8 185 x 129 43 6 126 25 40R.9 9 205x14 43 61 133 30 40R.10 10 229 x 159 48 66 141 40 40R.11 11 249x17 51 7 148 45 40R.12 12 268x184 53 75 157 55 40R.13 13 288 x 198 56 8 165 60 40R.14 14 306 x 212 6 85 172 75 40R.15 15 32x224 66 92 179 80 40R.16 16 348 x 238 69 98 187 95 40R.17 17 367 x 25 7 103 193 115 40R.18 18 385 x 264 74 109 201 120 40R.19 19 409 x 294 76 113 209 140 40R.20 20 425 x 294 8 116 217 165 40R.21 21 45x307 81 119 223 180 40R.22 22 47x32 82 123 240 205 40R.23 23 485 x 334 84 126 250 235 40R.24 24 505 x 347 85 129 260 260 NF ISO 691 NF ISO 7738 NF ISO 1711-1 ISO 691 ISO 7738 ISO 1711- 1 DIN ISO 691 DIN 1711 -1 DIN 3113 Presentation supplied as box roll or tray. 3 A mm Contents Nh kg 40R.JE9 8- 9-10-11-12-13-14 -17-19 Box 0610 40R.JE17 8 -9 -10-11-12-13-14-15-16- 18 19 20 21 22 23 24 17 Box 1950 40R.JE9T 8- 9-10-11-12-13-14 -17-19 N Roll .38A-9E 0740 MOD.40R 8 -9 -10-11-12-13-14- -18-19-22-24 15-16- 17 Tray PL.352A 1640 Facom m
