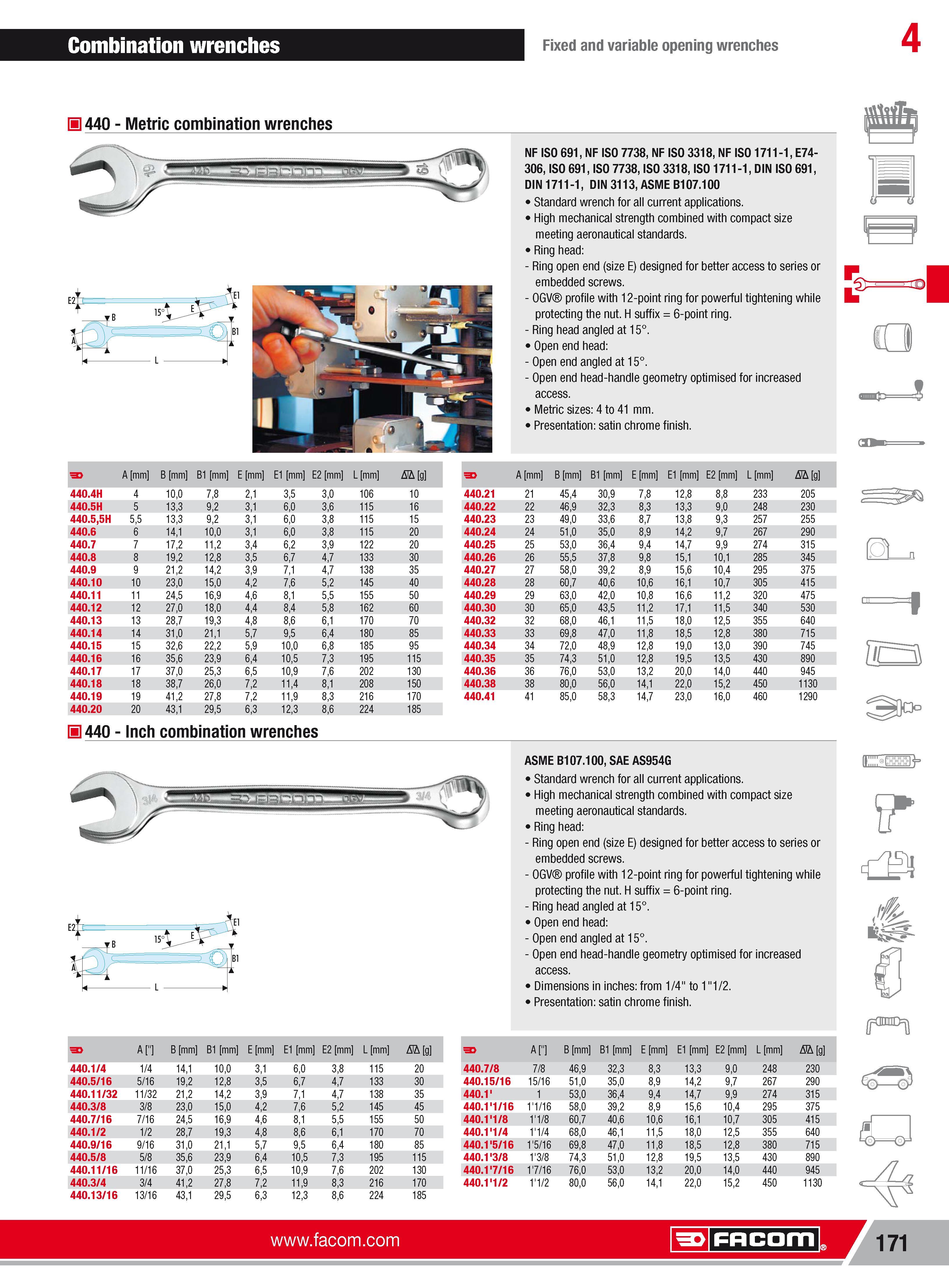

Combination wrenches Fixed and variable opening wrenches 4 440 Metric combination wrenches E2 NF ISO 691 NF ISO 7738 NF ISO 3318 NF ISO 1711-1 E74- 306 ISO 691 ISO 7738 ISO 3318 ISO 1711-1 DIN ISO 691 DIN 1711-1 DIN 3113 ASME B107.100 Standard wrench for all current applications. High mechanical strength combined with compact size meeting aeronautical standards. Ring head Ring open end (size E) designed for better access to series or embedded screws. OGV profile with 12-point ring for powerful tightening while protecting the nut. H suffix 6-point ring. Ring head angled at 15. Open end head Open end angled at 15. Open end head-handle geometry optimised for increased access. Metric sizes 4 to 41 mm. Presentation satin chrome finish. E2 ASME B107.100 SAE AS954G Standard wrench for all current applications. High mechanical strength combined with compact size meeting aeronautical standards. Ring head Ring open end (size E) designed for better access to series or embedded screws. OGV profile with 12-point ring for powerful tightening while protecting the nut. H suffix 6-point ring. Ring head angled at 15. Open end head Open end angled at 15. Open end head-handle geometry optimised for increased access. Dimensions in inches from 1/4" to 1"1 2. Presentation satin chrome finish. i A mm B mm B1 mm E mm E1 mm E2 mm L mm Nh g 31 A mm B mm B1 mm E mm E1 mm E2 mm L mm Nh g 440.4H 4 100 78 21 35 30 106 10 440.21 21 454 309 78 128 88 233 205 440.5H 5 133 92 31 60 36 115 16 440.22 22 469 323 83 133 90 248 230 440.55H 55 133 92 31 60 38 115 15 440.23 23 490 336 87 138 93 257 255 440.6 6 141 100 31 60 38 115 20 440.24 24 510 350 89 142 97 267 290 440.7 7 172 112 34 62 39 122 20 440.25 25 530 364 94 147 99 274 315 440.8 8 192 128 35 67 47 133 30 440.26 26 555 378 98 151 101 285 345 440.9 9 212 142 39 71 47 138 35 440.27 27 580 392 89 156 104 295 375 440.10 10 230 150 42 76 52 145 40 440.28 28 607 406 106 161 107 305 415 440.11 11 245 169 46 81 55 155 50 440.29 29 630 420 108 166 112 320 475 440.12 12 270 180 44 84 58 162 60 440.30 30 650 435 112 171 115 340 530 440.13 13 287 193 48 86 61 170 70 440.32 32 680 461 115 180 125 355 640 440.14 14 310 211 57 95 64 180 85 440.33 33 698 470 118 185 128 380 715 440.15 15 326 222 59 100 68 185 95 440.34 34 720 489 128 190 130 390 745 440.16 16 356 239 64 105 73 195 115 440.35 35 743 510 128 195 135 430 890 440.17 17 370 253 65 109 76 202 130 440.36 36 760 530 132 200 140 440 945 440.18 18 387 260 72 114 81 208 150 440.38 38 800 560 141 220 152 450 1130 440.19 19 412 278 72 119 83 216 170 440.41 41 850 583 147 230 160 460 1290 440.20 20 431 295 63 123 86 224 185 440 Inch combination wrenches A " B mm B1 mm E mm E1 mm E2 mm L mm Nh g 440.1 4 1 4 141 100 31 60 38 115 20 440.5 16 5 16 192 128 35 67 47 133 30 440.11 32 11 32 212 142 39 71 47 138 35 440.3 8 3 8 230 150 42 76 52 145 45 440.7 16 7 16 245 169 46 81 55 155 50 440.1 2 1 2 287 193 48 86 61 170 70 440.9 16 9 16 310 211 57 95 64 180 85 440.5 8 5 8 356 239 64 105 73 195 115 440.11 16 11 16 370 253 65 109 76 202 130 440.3 4 3 4 412 278 72 119 83 216 170 440.13 16 13 16 431 295 63 123 86 224 185 3 A " B mm B1 mm E mm E1 mm E2 mm L mm Nh g 440.7 8 7 8 469 323 83 133 90 248 230 440.15 16 15 16 510 350 89 142 97 267 290 440.1' 1 530 364 94 147 99 274 315 440.1'1 16 1'1 16 580 392 89 156 104 295 375 440.1'1 8 1'1 8 607 406 106 161 107 305 415 440.1'1 4 1'1 4 680 461 115 180 125 355 640 440.1'5 16 1'5 16 698 470 118 185 128 380 715 440.1'3 8 1'3 8 743 510 128 195 135 430 890 440.1'7 16 1'7 16 760 530 132 200 140 440 945 440.1'1 2 1'1 2 800 560 141 220 152 450 1130 Facom 171 Facom
