196 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.170

Каталог FACOM 2013 Инструмент Оборудование Стр. 170 0196 ENG Lab2u

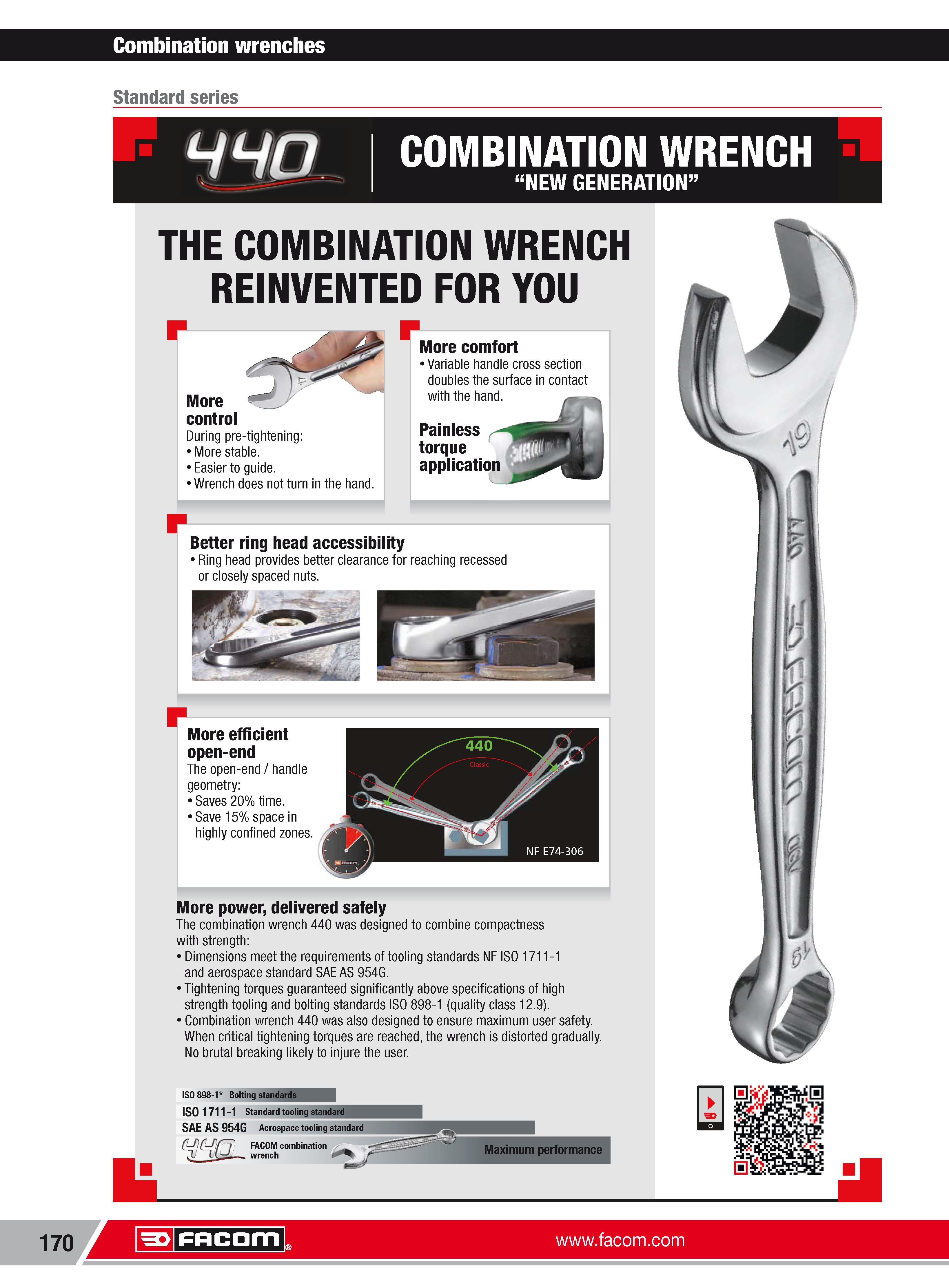

Combination wrenches Standard series THE COMBINATION WRENCH REINVENTED FOR YOU More control During pre-tightening More stable. Easier to guide. Wrench does not turn in the hand. More comfort Variable handle cross section doubles the surface in contact with the hand. Painless torque application Better ring head accessibility Ring head provides better clearance for reaching recessed or closely spaced nuts. More efficient open-end The open-end handle geometry Saves 20% time. Save 15% space in highly confined zones. More power delivered safely The combination wrench 440 was designed to combine compactness with strength Dimensions meet the requirements of tooling standards NF ISO 1711-1 and aerospace standard SAE AS 954G. Tightening torques guaranteed significantly above specifications of high strength tooling and bolting standards ISO 898-1 (quality class 12.9). Combination wrench 440 was also designed to ensure maximum user safety. When critical tightening torques are reached the wrench is distorted gradually. No brutal breaking likely to injure the user. & i fl 170 ISO 898-1 Bolting standards ISO 1711 -1 Standard tooling standard SAE AS 954G Aerospace tooling standard '- FACOM combination wrench Facom
