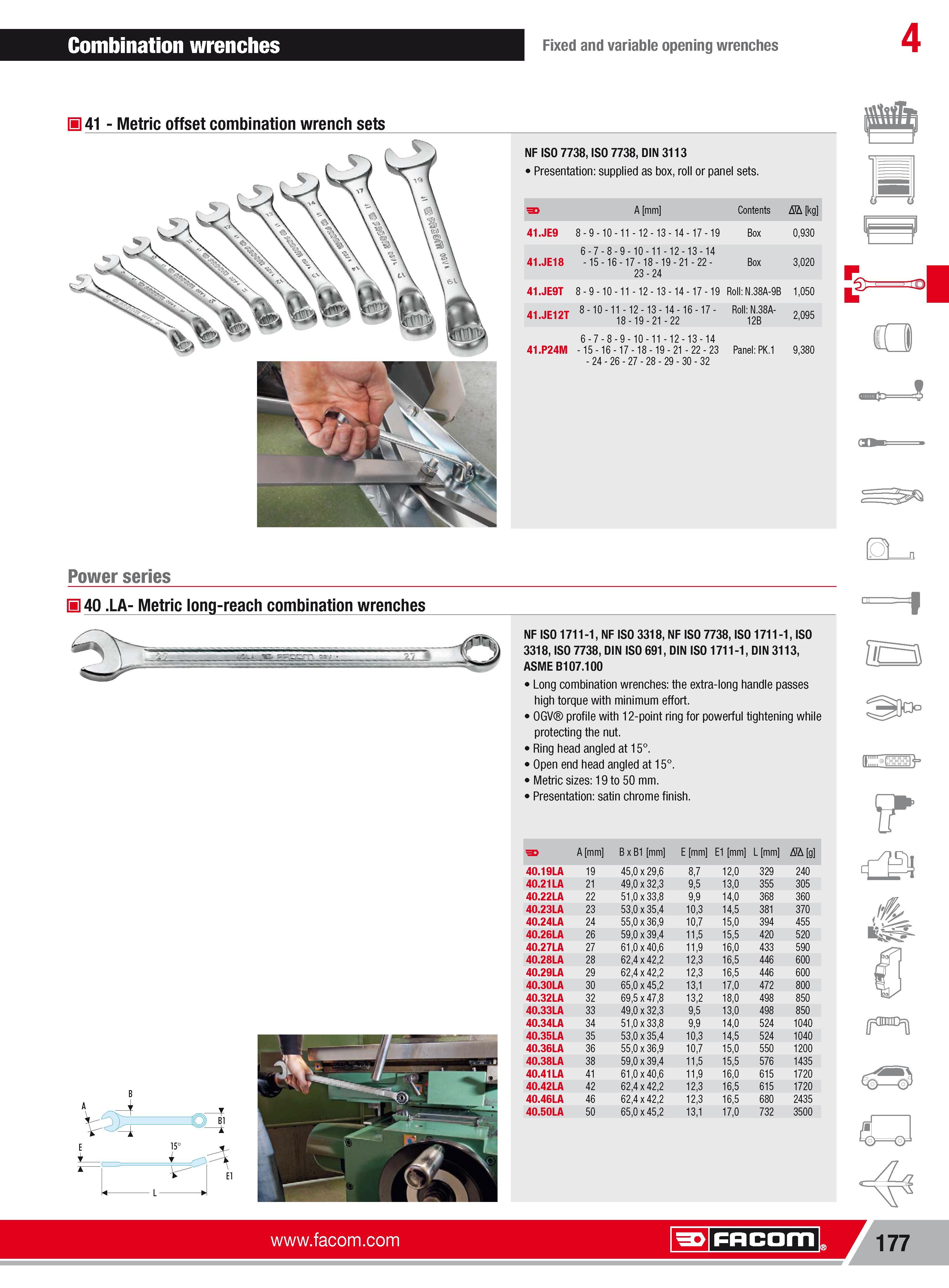

203 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.177

Каталог FACOM 2013 Инструмент Оборудование Стр. 177 0203 ENG Lab2u

Combination wrenches Fixed and variable opening wrenches 4 41 Metric offset combination wrench sets NF ISO 7738 ISO 7738 DIN 3113 Presentation supplied as box roll or panel sets. A mm Contents MA kg 41.JE9 8-9-10-11-12-13-14-17-19 Box 0930 41.JE18 6-7-8-9-10-11-12-13-14 15 16 17 18 19 21 22 -23-24 Box 3020 41.JE9T 8-9-10-11-12-13-14-17-19 Roll N.38A-9B 1050 41.JE12T 8-10-11-12-13-14-16-1718 19 21 22 Roll N.38A-12B 2095 41.P24M 6-7-8-9-10-11-12-13-14 15 16 17 18 19 21 22 23 Panel PK.1 9380 24- 26 27 28 29 30 32 Power series 40 .LA- Metric long-reach combination wrenches NF ISO 1711-1 NF ISO 3318 NF ISO 7738 ISO 1711-1 ISO 3318 ISO 7738 DIN ISO 691 DIN ISO 1711-1 DIN 3113 ASME B107.100 Long combination wrenches the extra-long handle passes high torque with minimum effort. OGV profile with 12-point ring for powerful tightening while protecting the nut. Ring head angled at 15. Open end head angled at 15. Metric sizes 19to50 mm. Presentation satin chrome finish. w l94Tm i 1 f L A mm B x B1 mm E mm E1 mm L mm M g 40.19LA 19 450x296 87 120 329 240 40.21LA 21 490x323 95 130 355 305 40.22LA 22 510 x 338 99 140 368 360 40.23LA 23 530x354 103 145 381 370 40.24LA 24 550 x 369 107 150 394 455 40.26LA 26 590x394 115 155 420 520 40.27LA 27 610x406 119 160 433 590 40.28LA 28 624x422 123 165 446 600 40.29LA 29 624x422 123 165 446 600 40.30LA 30 650x452 131 170 472 800 40.32LA 32 695x478 132 180 498 850 40.33LA 33 490x323 95 130 498 850 40.34LA 34 510 x 338 99 140 524 1040 40.35LA 35 530x354 103 145 524 1040 40.36LA 36 550 x 369 107 150 550 1200 40.38LA 38 590x394 115 155 576 1435 40.41LA 41 610x406 119 160 615 1720 40.42LA 42 624x422 123 165 615 1720 40.46LA 46 624x422 123 165 680 2435 40.50LA 50 650x452 131 170 732 3500 Facom 177 Facom
