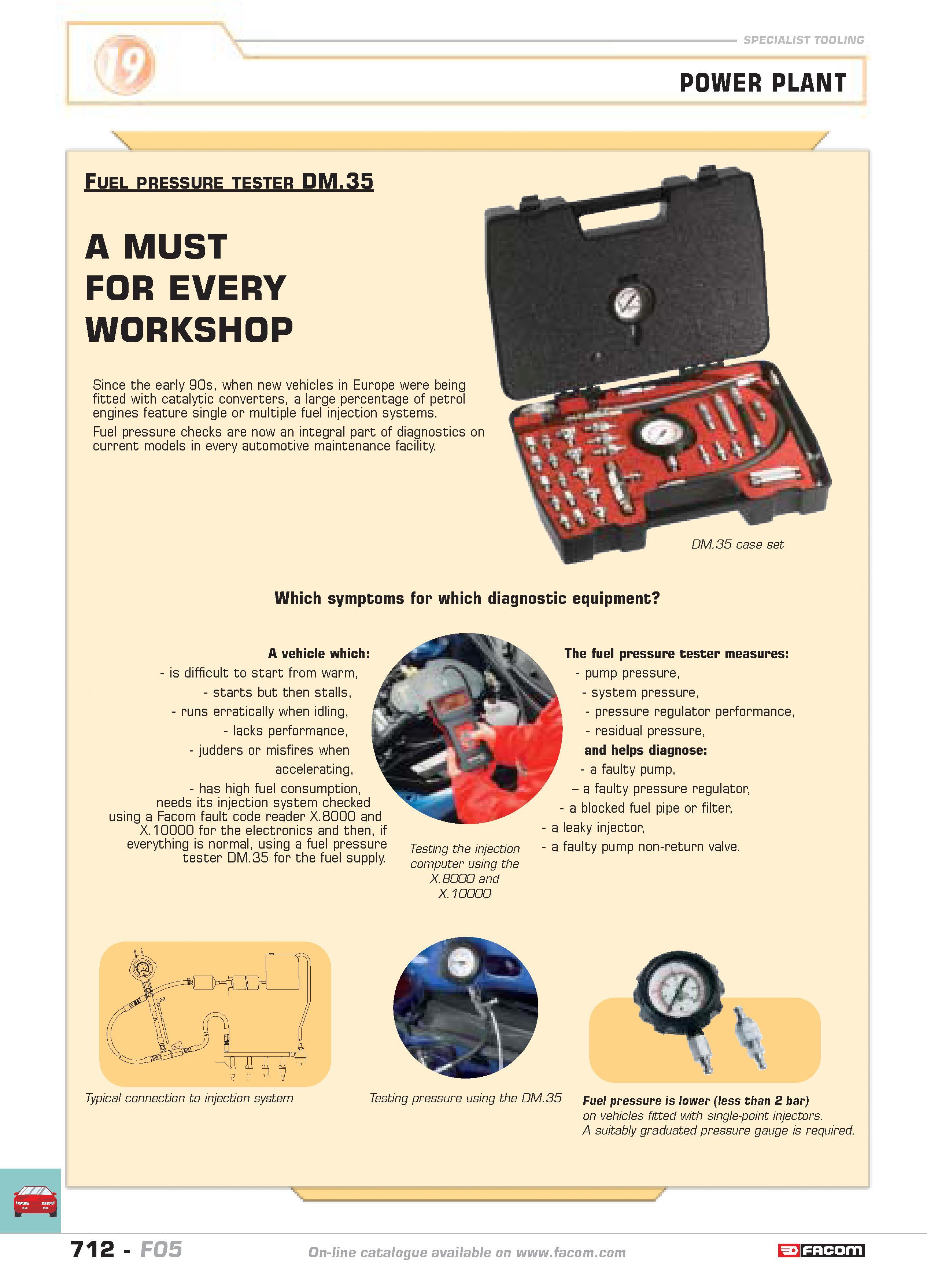

SPECIALIST TOOLING POWER PLANT X Fuel pressure tester DM.35 A MUST FOR EVERY WORKSHOP Since the early 90s when new vehicles in Europe were being fitted with catalytic converters a large percentage of petrol engines feature single or multiple fuel injection systems. Fuel pressure checks are now an integral part of diagnostics on current models in every automotive maintenance facility. DM. 35 case set Which symptoms for which diagnostic equipment A vehicle which is difficult to start from warm starts but then stalls runs erratically when idling lacks performance judders or misfires when accelerating has high fuel consumption needs its injection system checked using a Facom fault code reader X.8000 and X. 10000 for the electronics and then if everything is normal using a fuel pressure tester DM.35 for the fuel supply. Testing the injection computer using the X.8000 and X.10000 The fuel pressure tester measures pump pressure system pressure pressure regulator performance residual pressure and helps diagnose a faulty pump a faulty pressure regulator a blocked fuel pipe or filter a leaky injector a faulty pump non-return valve. Testing pressure using the DM.35 Fuel pressure is lower (less than 2 bar) on vehicles fitted with single-point injectors. A suitably graduated pressure gauge is required. y 712 catalogue FACOM F05
