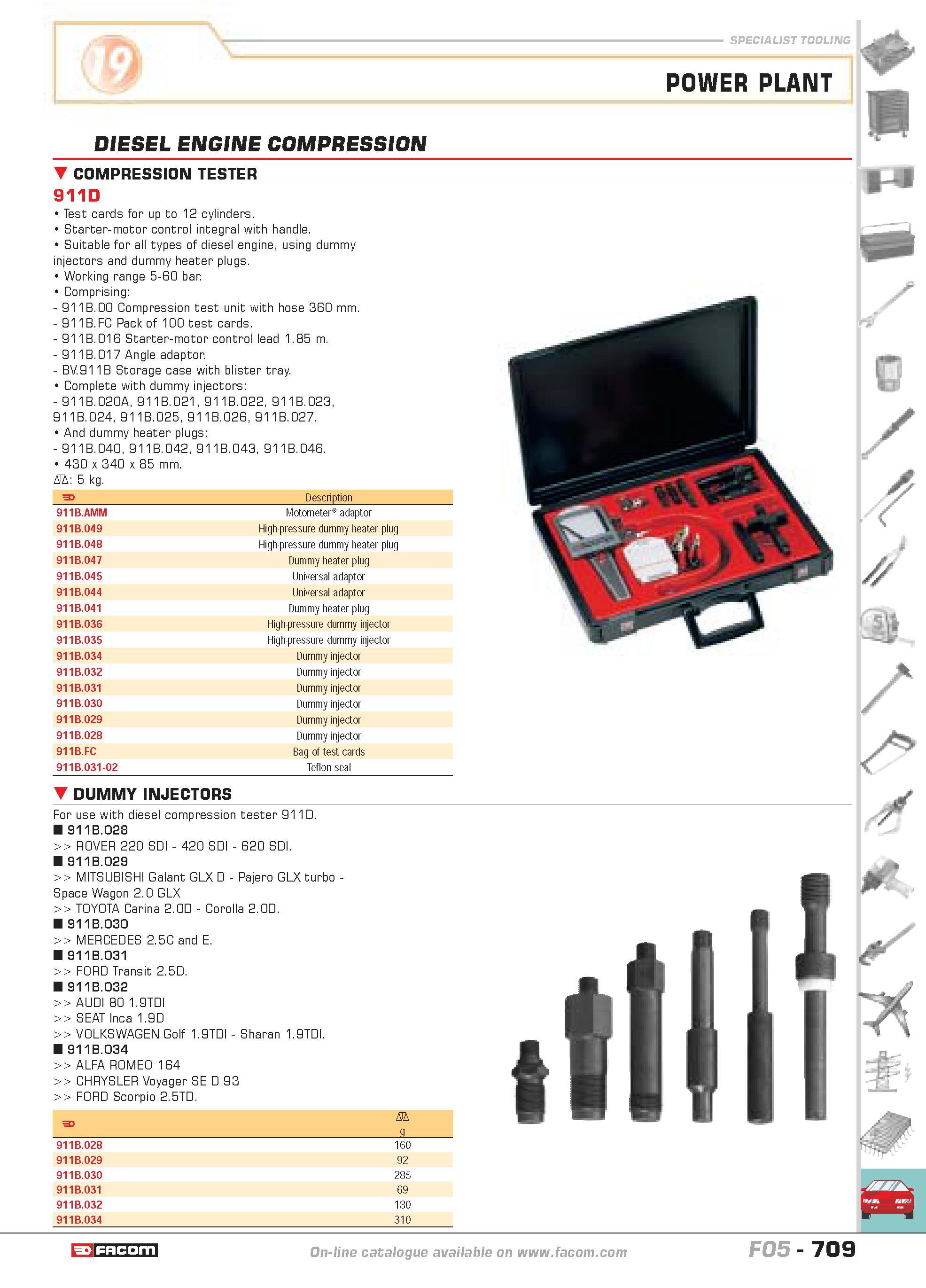

SPECIALIST TOOLING POWER PLANT DIESEL ENGINE COMPRESSION P COMPRESSION TESTER 911D Test cards for up to 12 cylinders. Starter-motor control integral with handle. Suitable for all types of diesel engine using dummy injectors and dummy heater plugs. Working range 5-60 bar Comprising 911B.00 Compression test unit with hose 360 mm. 911B.FC Pack of 100 test cards. 911B.016 Starter-motor control lead 1.85 m. 911B.017 Angle adaptor. BV.911B Storage case with blister tray. Complete with dummy injectors 911B.020A 911B.021 911B.022 911B.023 911B.024 911B.025 911B.026 911B.027. And dummy heater plugs 911B.040 911B.042 911B.043 911B.046. 430 x 340 x 85 mm. D 5 kg. F Description 911B.AMM Motometer adaptor 911B.049 High-pressure dummy heater plug 911B.048 High-pressure dummy heater plug 911B.047 Dummy heater plug 911B.045 Universal adaptor 911B.044 Universal adaptor 911B.041 Dummy heater plug 911B.036 High-pressure dummy injector 911B.035 High-pressure dummy injector 911B.034 Dummy injector 911B.032 Dummy injector 911B.031 Dummy injector 911B.030 Dummy injector 911B.029 Dummy injector 911B.028 Dummy injector 911B.FC Bag of test cards 911B.031-02 Teflon seal DUMMY INJECTORS For use with diesel compression tester 911D. 911B.028 ROVER 220 SDI 420 SDI 620 SDI. 911B.029 MITSUBISHI Galant GLX D Pajero GLX turbo Space Wagon 2.0 GLX TOYOTA Carina 2.0D Corolla 2.0D. 911B.030 MERCEDES 2.5C and E. 911B.031 FORD Transit 2.5D. 911B.032 AUDI 80 1.9TDI SEAT Inca 1.9D VOLKSWAGEN Golf 1.9TDI Sharan 1.9TDI. 911B.034 ALFA ROMEO 164 CHRYSLER Voyager SE D 93 FORD Scorpio 2.5TD. E3EHHZHI catalogue FACOM F05 709
