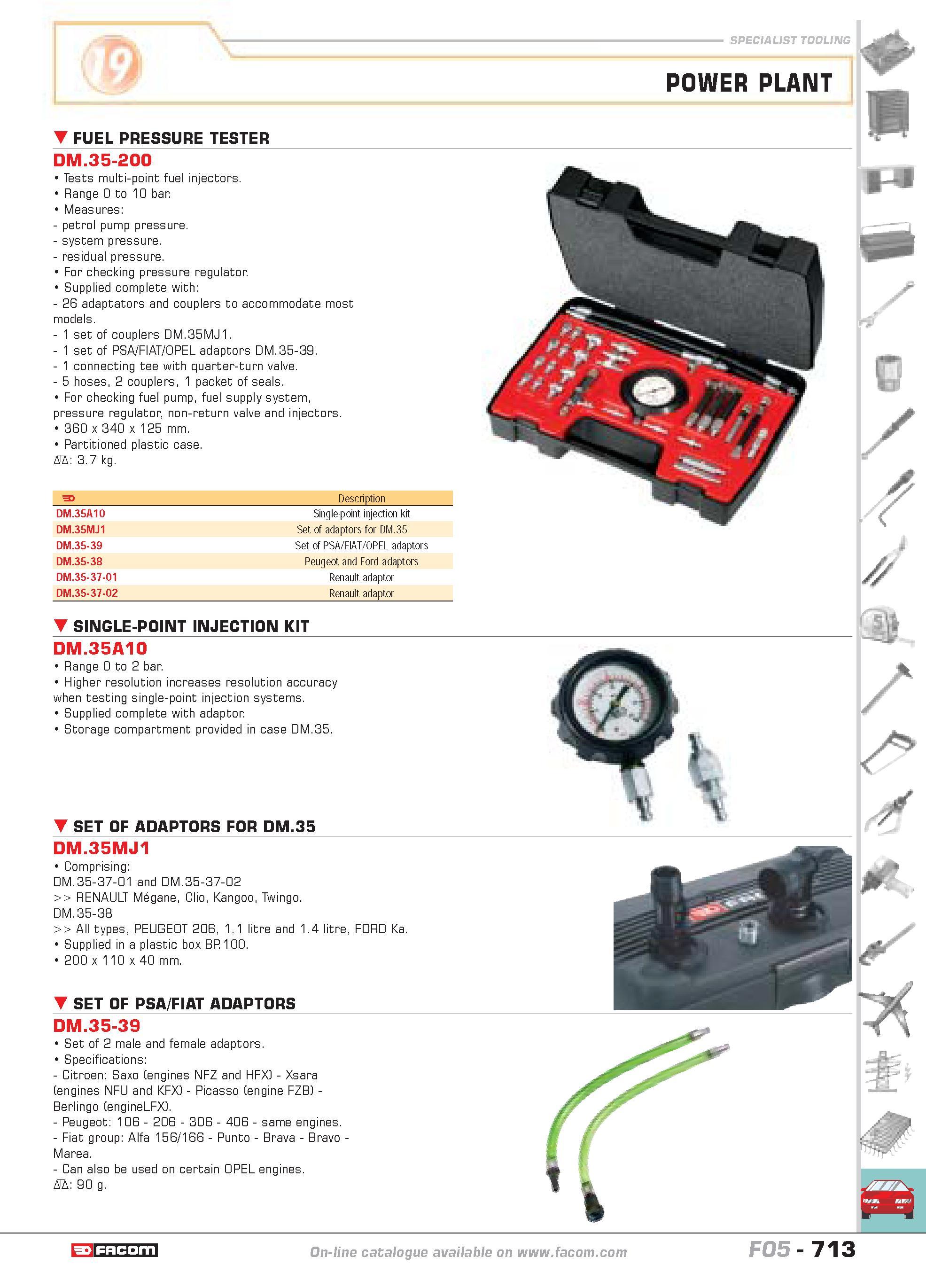

POWER PLANT FUEL PRESSURE TESTER DM.35-200 Tests multi-point fuel injectors. Range 0 to 10 bar. Measures petrol pump pressure. system pressure. residual pressure. For checking pressure regulator. Supplied complete with 26 adaptators and couplers to accommodate most models. 1 set of couplers DM.35MJ1. 1 set of PSA FIAT OPEL adaptors DM.35-39. 1 connecting tee with quarter-turn valve. 5 hoses 2 couplers 1 packet of seals. For checking fuel pump fuel supply system pressure regulator non-return valve and injectors. 360 x 340 x 125 mm. Partitioned plastic case. D 3.7 kg. F Description DM.35A10 Single-point injection kit DM.35MJ1 Set of adaptors for DM.35 DM.35-39 Set of PSA FIAT OPEL adaptors DM.35-38 Peugeot and Ford adaptors DM.35-37-01 Renault adaptor DM.35-37-02 Renault adaptor SINGLE-POINT INJECTION KIT DM.35A10 Range 0 to 2 bar. Higher resolution increases resolution accuracy when testing single-point injection systems. Supplied complete with adaptor Storage compartment provided in case DM.35. SET OF ADAPTORS FOR DM.35 DM.35MJ1 Comprising DM.35-37-01 and DM.35-37-02 RENAULT Megane Clio Kangoo Twingo. DM.35-38 All types PEUGEOT 206 1.1 litre and 1.4 litre FORD Ka. Supplied in a plastic box BP 100. 200 x 110 x 40 mm. SET OF PSA FIAT ADAPTORS DM.35-39 Set of 2 male and female adaptors. Specifications Citroen Saxo (engines NFZ and HFX) Xsara (engines NFU and KFX) Picasso (engine FZB) -Berlingo (engineLFX). Peugeot 106 206 306 406 same engines. Fiat group Alfa 156 166 Punto Brava Bravo -Marea. Can also be used on certain OPEL engines. D 90 g. catalogue FACOM FO5 713
