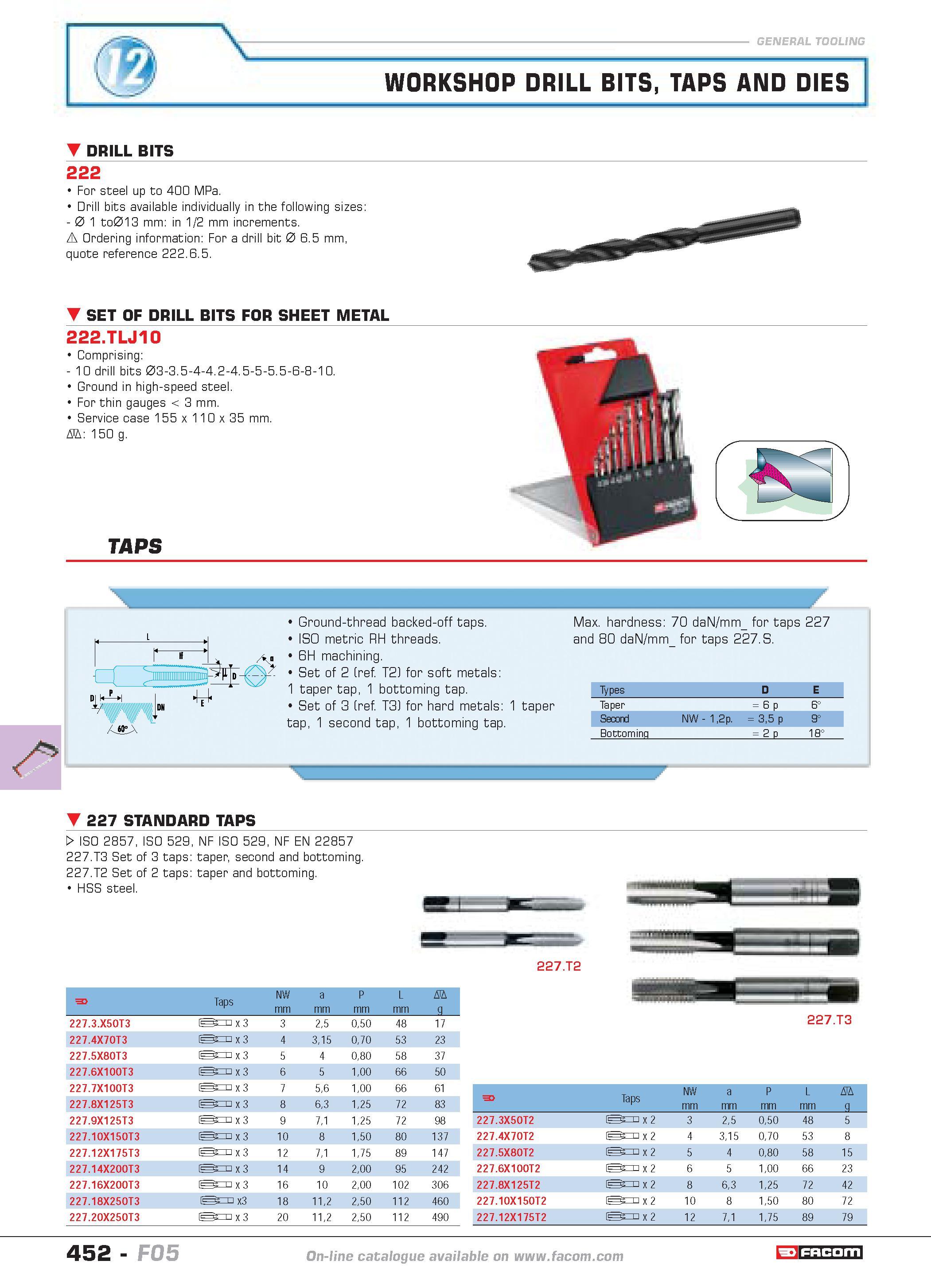

WORKSHOP DRILL BITS TAPS AND DIES DRILL BITS 222 For steel up to 400 MPa. Drill bits available individually in the following sizes 0 1 to013 mm in 1 2 mm increments. A Ordering information For a drill bit 0 6.5 mm quote reference 222.6.5. SET OF DRILL BITS FOR SHEET METAL 222.TLJ10 Comprising 10 drill bits 03-3.5-4-4.2-4.5-5-5.5-6-8-10. Ground in high-speed steel. For thin gauges 3 mm. Service case 155 x 110 x 35 mm. D 150 g. TAPS WL Ground-thread backed-off taps. ISO metric RH threads. 6H machining. Set of 2 (ref. T2) for soft metals 1 taper tap 1 bottoming tap. Set of 3 (ref. T3) for hard metals 1 taper tap 1 second tap 1 bottoming tap. Max. hardness 70 daN mm for taps 227 and 80 daN mm for taps 227.S. Types D E Taper 6 p 6 Second NW- 12p. 35 p 9 Bottomina 2 p 18 w 227 STANDARD TAPS W ISO 2857 ISO 529 NF ISO 529 NF EN 22857 227.T3 Set of 3 taps taper second and bottoming. 227.T2 Set of 2 taps taper and bottoming. HSS steel. F Taps NW mm P mm D g 227.3.X50T3 T x 3 3 25 050 48 17 227.4X70T3 T x 3 4 315 070 53 23 227.5X80T3 T x 3 5 4 080 58 37 227.6X100T3 T x 3 6 5 100 66 50 227.7X100T3 T x 3 7 56 100 66 61 227.8X125T3 T x 3 8 63 125 72 83 227.9X125T3 T x 3 9 71 125 72 98 227.10X150T3 T x 3 10 8 150 80 137 227.12X175T3 T x 3 12 71 175 89 147 227.14X200T3 T x 3 14 9 200 95 242 227.16X200T3 T x 3 16 10 200 102 306 227.18X250T3 T x3 18 112 250 112 460 227.20X250T3 T x 3 20 112 250 112 490 227.T3 F Taps NW mm a mm P mm L mm D g 227.3X50T2 T x 2 3 25 050 48 5 227.4X70T2 T x 2 4 315 070 53 8 227.5X80T2 T x 2 5 4 080 58 15 227.6X100T2 T x 2 6 5 100 66 23 227.8X125T2 T x 2 8 63 125 72 42 227.10X150T2 T x 2 10 8 150 80 72 227.12X175T2 t T x 2 12 71 175 89 79 452 catalogue FACOM F05
