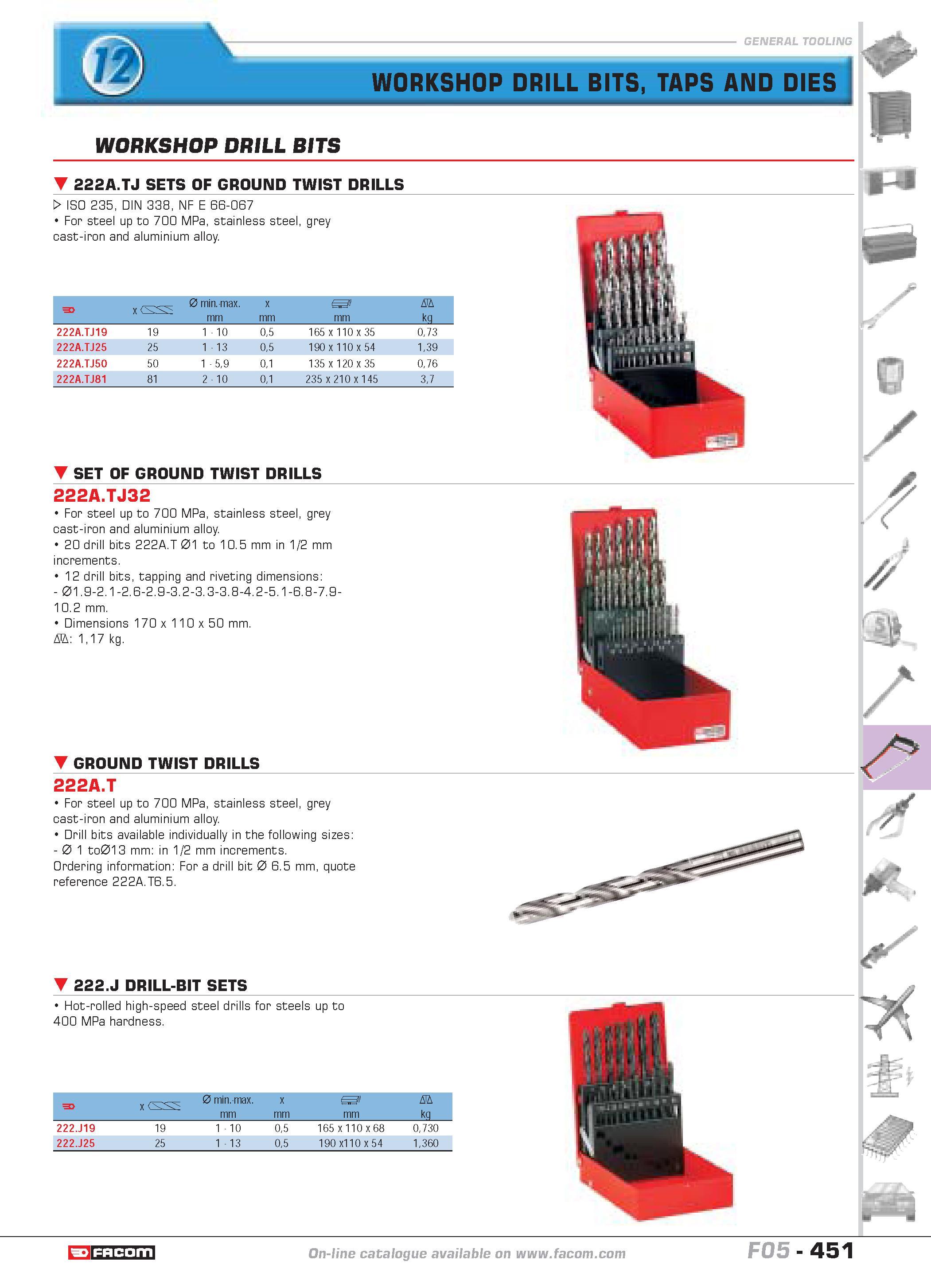

WORKSHOP DRILL BITS taps AND DIES WORKSHOP DRILL BITS 222A.TJ SETS OF GROUND TWIST DRILLS W ISO 235 DIN 338 NF E 66-067 For steel up to 700 MPa stainless steel grey cast-iron and aluminium alloy. F x f 0 min.-max. mm x mm I mm D kq 222A.TJ19 19 1 10 05 165 x 110 x 35 073 222A.TJ25 25 1 13 05 190 x 110 x 54 139 222A.TJ50 50 1 59 01 135 x 120 x 35 076 222A.TJ81 81 2 10 01 235 x 210 x 145 37 SET OF GROUND TWIST DRILLS 222A.TJ32 For steel up to 700 MPa stainless steel grey cast-iron and aluminium alloy. 20 drill bits 222A.T 01 to 10.5 mm in 1 2 mm increments. 12 drill bits tapping and riveting dimensions 01.9-2.1-2.6-2.9-3.2-3.3-3.8-4.2-5.1-6.8-7.910.2 mm. Dimensions 170 x 110 x 50 mm. D 117 kg. j f Mil GROUND TWIST DRILLS 222A.T For steel up to 700 MPa stainless steel grey cast-iron and aluminium alloy Drill bits available individually in the following sizes 0 1 to013 mm in 1 2 mm increments. Ordering information For a drill bit 0 6.5 mm quote reference 222A.T6.5. 222.J DRILL-BIT SETS Hot-rolled high-speed steel drills for steels up to 400 MPa hardness. F x f 0 min.-max. x I D mm kq 222.J19 19 1 10 05 165 x 110 x 68 0730 222.J25 25 1 13 05 190 x110 x 54 1360 catalogue FACOM F05 451
