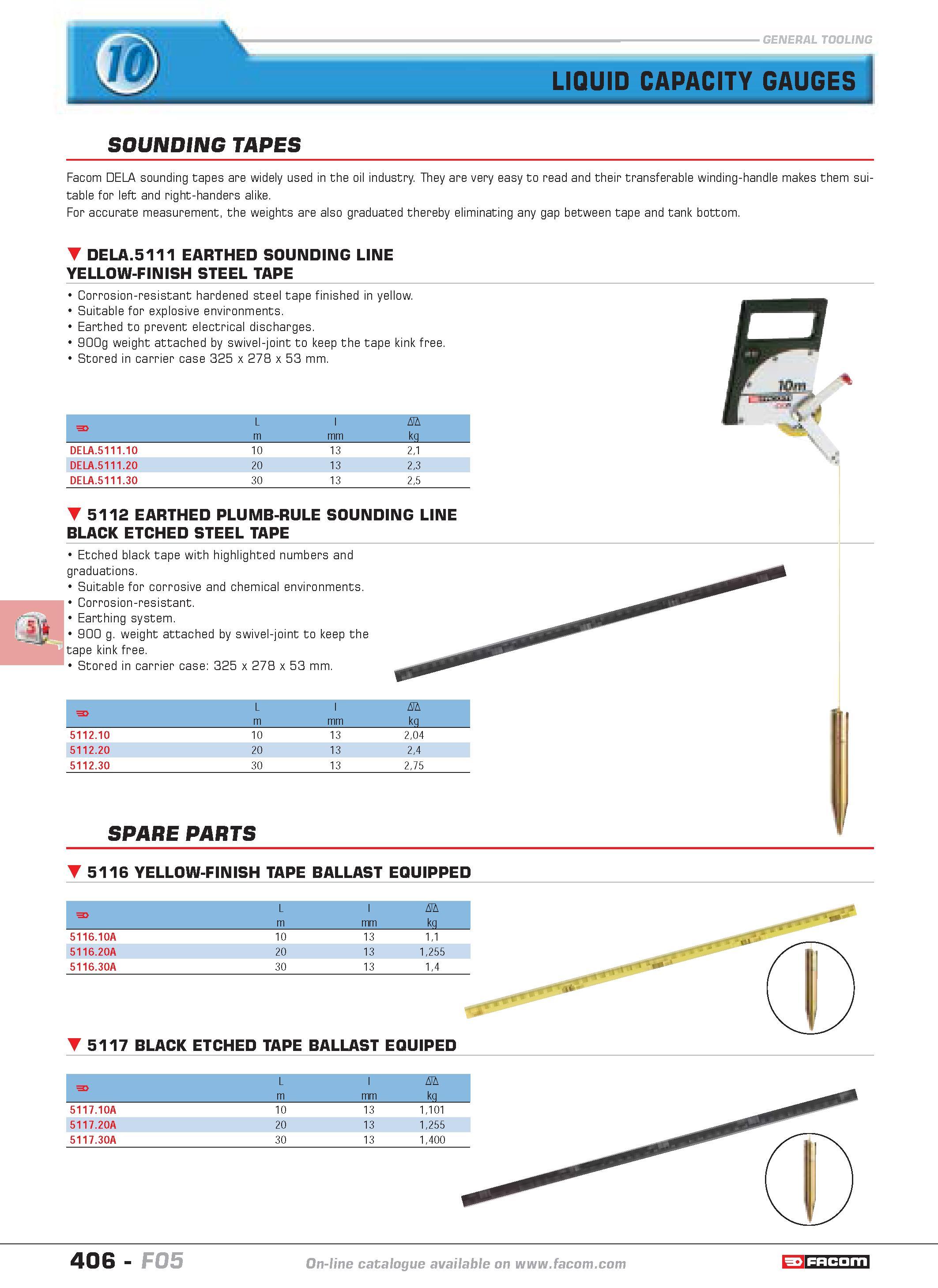

LIQUID CAPACITY GAUGES SOUNDING TAPES Facom DELA sounding tapes are widely used in the oil industry. They are very easy to read and their transferable winding-handle makes them suitable for left and right-handers alike. For accurate measurement the weights are also graduated thereby eliminating any gap between tape and tank bottom. DELA.5111 earthed sounding line yellow-finish steel tape Corrosion-resistant hardened steel tape finished in yellow. Suitable for explosive environments. Earthed to prevent electrical discharges. 900g weight attached by swivel-joint to keep the tape kink free Stored in carrier case 325 x 278 x 53 mm. F L m I mm D kg DELA.5111.10 10 13 21 DELA.5111.20 20 13 23 DELA.5111.30 30 13 25 5112 EARTHED PLUMB-RULE SOUNDING LINE BLACK ETCHED steel TAPE Etched black tape with highlighted numbers and graduations. Suitable for corrosive and chemical environments. Corrosion-resistant. Earthing system. 900 g. weight attached by swivel-joint to keep the tape kink free. Stored in carrier case 325 x 278 x 53 mm. F L I D m mm kg 5112.10 10 13 204 5112.20 20 13 24 5112.30 30 13 275 SPARE PARTS 406 catalogue FACOM F05
