400 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.403

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 403 0400 ENG Lab2u

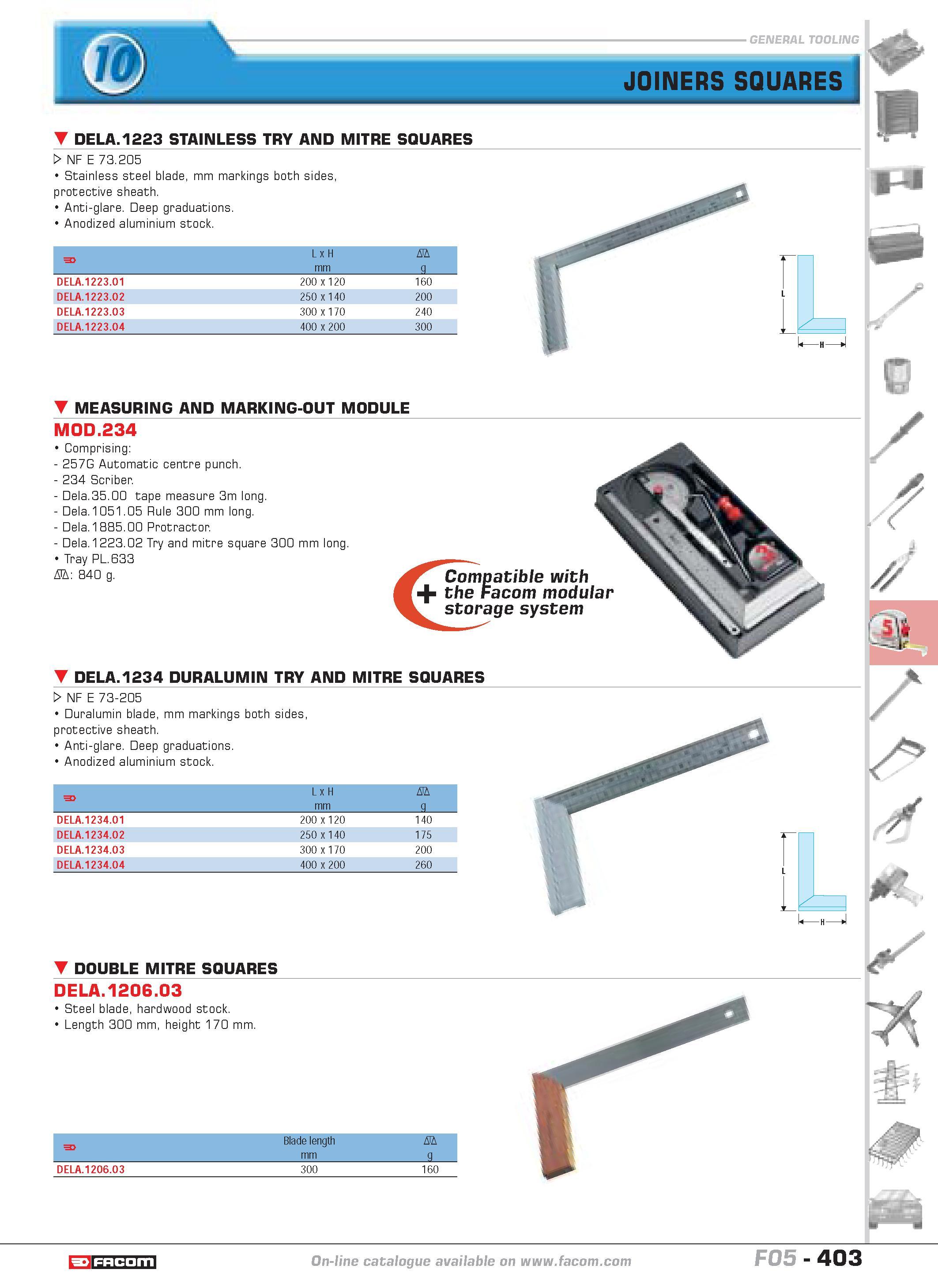

JOINERS SQUARES DELA.1223 STAINLESS TRY AND MITRE SQUARES W NF E 73.205 Stainless steel blade mm markings both sides protective sheath. Anti-glare. Deep graduations. Anodized aluminium stock. F L x H mm D g DELA.1223.01 200 x 120 160 DELA.1223.02 250 x 140 200 DELA.1223.03 300 x 170 240 DELA.1223.04 400 x 200 300 MEASURING AND MARKING-OUT MODULE MOD.234 Comprising 257G Automatic centre punch. 234 Scriber. Dela.35.00 tape measure 3m long. Dela.1051.05 Rule 300 mm long. Dela.1885.00 Protractor. Dela.1223.02 Try and mitre square 300 mm long. Tray PL.633 D 840 g. Compatible with the Facom modular storage system DELA.1234 DURALUMIN TRY AND MITRE SQUARES W NF E 73-205 Duralumin blade mm markings both sides protective sheath. Anti-glare. Deep graduations. Anodized aluminium stock. F L x H mm D g DELA.1234.01 200 x 120 140 DELA.1234.02 250 x 140 175 DELA.1234.03 300 x 170 200 DELA.1234.04 400 x 200 260 double mitre squares DELA.1206.03 Steel blade hardwood stock. Length 300 mm height 170 mm. Blade length D mm g DELA.1206.03 300 160 catalogue FACOM F05 403
