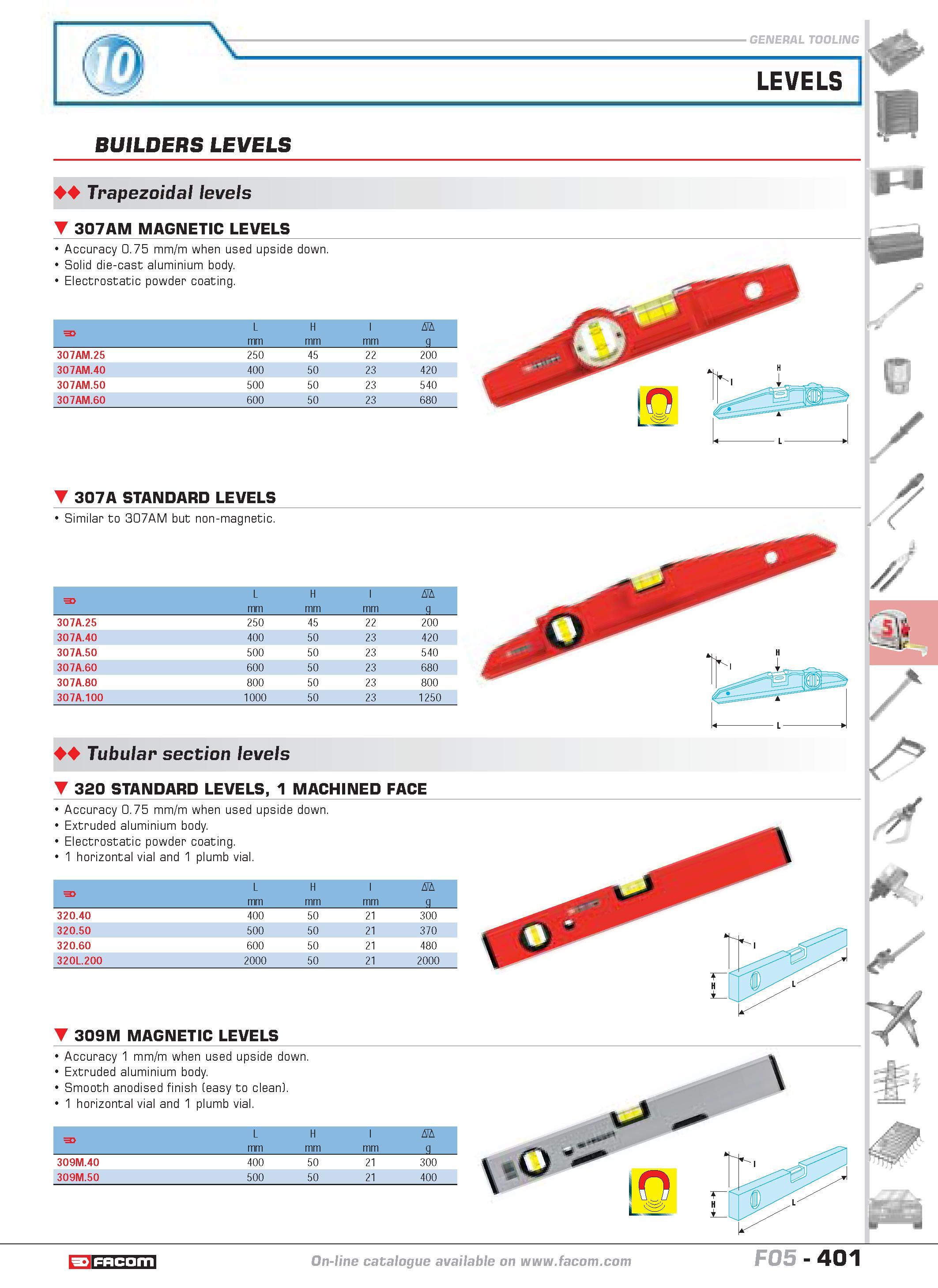

BUILDERS LEVELS 44 Trapezoidal levels 307AM MAGNETIC LEVELS 1 Accuracy 0.75 mm m when used upside down. 1 Solid die-cast aluminium body. 1 Electrostatic powder coating. F L mm H mm I mm D g 307AM.25 250 45 22 200 307AM.40 400 50 23 420 307AM.50 500 50 23 540 307AM.60 600 50 23 680 307A STANDARD LEVELS Similar to 307AM but non-magnetic. F L mm H mm I mm D g 307A.25 250 45 22 200 307A.40 400 50 23 420 307A.50 500 50 23 540 307A.60 600 50 23 680 307A.80 800 50 23 800 307A.100 1000 50 23 1250 44 Tubular section levels 320 STANDARD LEVELS 1 MACHINED FACE Accuracy 0.75 mm m when used upside down. 1 Extruded aluminium body. Electrostatic powder coating. 1 1 horizontal vial and 1 plumb vial. F L H I D mm g 320.40 400 50 21 300 320.50 500 50 21 370 320.60 600 50 21 480 320L.200 2000 50 21 2000 309M MAGNETIC LEVELS Accuracy 1 mm m when used upside down. Extruded aluminium body. Smooth anodised finish (easy to clean). 1 horizontal vial and 1 plumb vial. F L H I D mm g 309M.40 400 50 21 300 309M.50 500 50 21 400 eehsed catalogue FACOM F05 401
