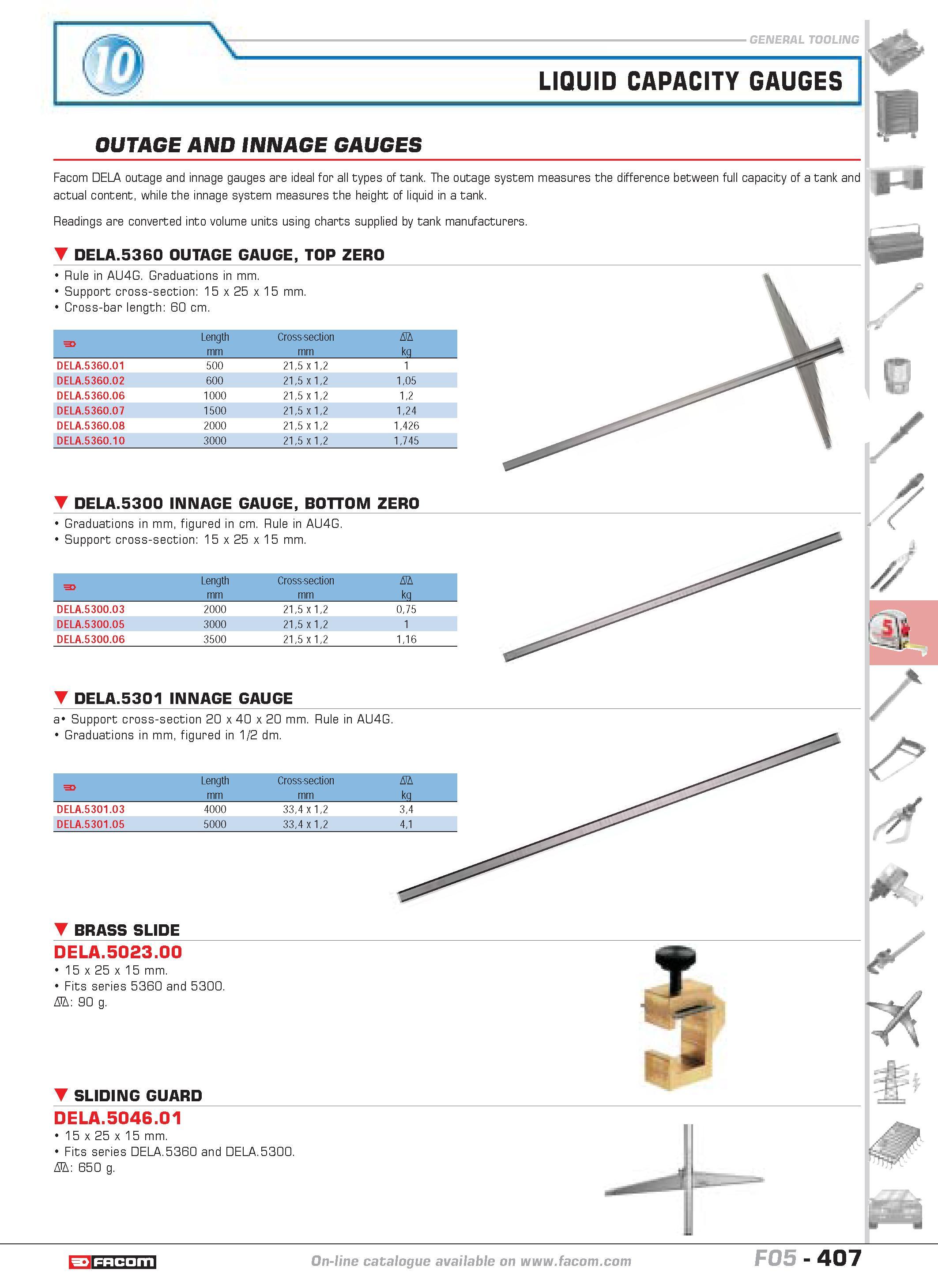

LIQUID CAPACITY GAUGES OUTAGE AND INNAGE GAUGES Facom DELA outage and innage gauges are ideal for all types of tank. The outage system measures the difference between full capacity of a tank and actual content while the innage system measures the height of liquid in a tank. Readings are converted into volume units using charts supplied by tank manufacturers. DELA.5360 OUTAGE GAUGE TOP ZERO Rule in AU4G. Graduations in mm. Support cross-section 15 x 25 x 15 mm. Cross-bar length 60 cm. Length Cross-section D mm kg DELA.5360.01 500 215 x 12 1 DELA.5360.02 600 215 x 12 105 DELA.5360.06 1000 215 x 12 12 DELA.5360.07 1500 215 x 12 124 DELA.5360.08 2000 215 x 12 1426 DELA.5360.10 3000 215 x 12 1745 DELA.5300 INNAGE GAUGE BOTTOM ZERO Graduations in mm figured in cm. Rule in AU4G. Support cross-section 15 x 25 x 15 mm. Length Cross-section D mm kg DELA.5300.03 2000 215 x 12 075 DELA.5300.05 3000 215 x 12 1 DELA.5300.06 3500 215 x 12 116 DELA.5301 INNAGE GAUGE a Support cross-section 20 x 40 x 20 mm. Rule in AU4G. Graduations in mm figured in 1 2 dm. F Length Cross-section NA mm kg DELA.5301.03 4000 334 x 12 34 DELA.5301.05 5000 334 x12 41 BRASS SLIDE DELA.5023.00 15 x 25 x 15 mm. Fits series 5360 and 5300. D 90 g. SLIDING GUARD DELA.5046.01 15 x 25 x 15 mm. Fits series DELA.5360 and DELA.5300. D 650 g. catalogue FACOM F05 407
