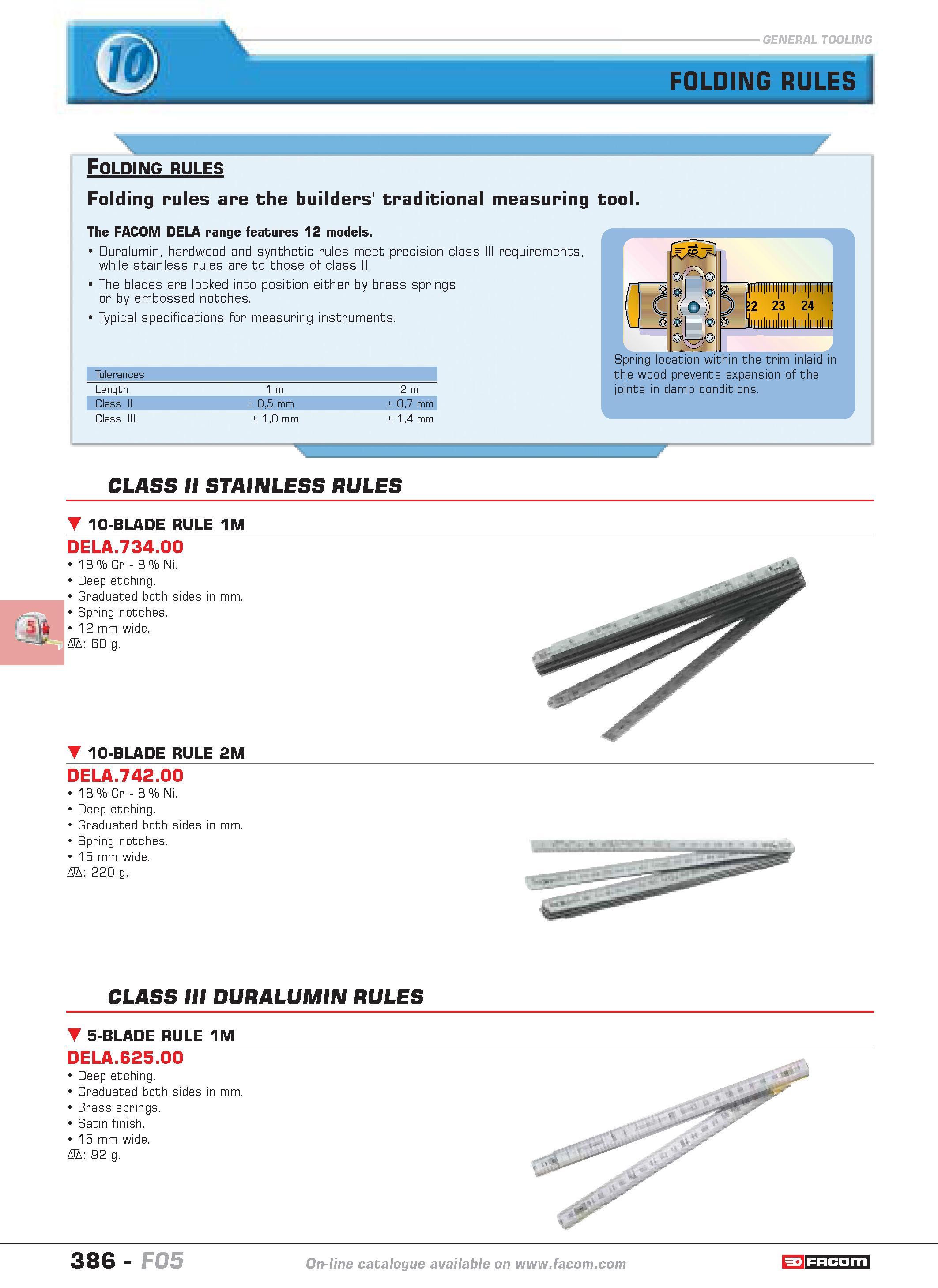

FOLDING RULES Folding rules Folding rules are the builders' traditional measuring tool. The FACOM DELA range features 12 models. Duralumin hardwood and synthetic rules meet precision class III requirements while stainless rules are to those of class II. The blades are locked into position either by brass springs or by embossed notches. Typical specifications for measuring instruments. r Tolerances Length 1 m 2 m Class II 05 mm 07 mm Class III 10 mm 14 mm Spring location within the trim inlaid in the wood prevents expansion of the joints in damp conditions. w CLASS II STAINLESS RULES 10-BLADE RULE 1M DELA.734.00 18% Cr 8% Ni. Deep etching. Graduated both sides in mm. Spring notches. 12 mm wide. D 60 g. 10-BLADE RULE 2M DELA.742.00 18% Cr 8% Ni. Deep etching. Graduated both sides in mm. Spring notches. 15 mm wide. D 220 g. CLASS III DURALUMIN RULES 5-BLADE RULE 1M DELA.625.00 Deep etching. Graduated both sides in mm. Brass springs. Satin finish. 15 mm wide. D 92 g. 386 catalogue FACOM F05
