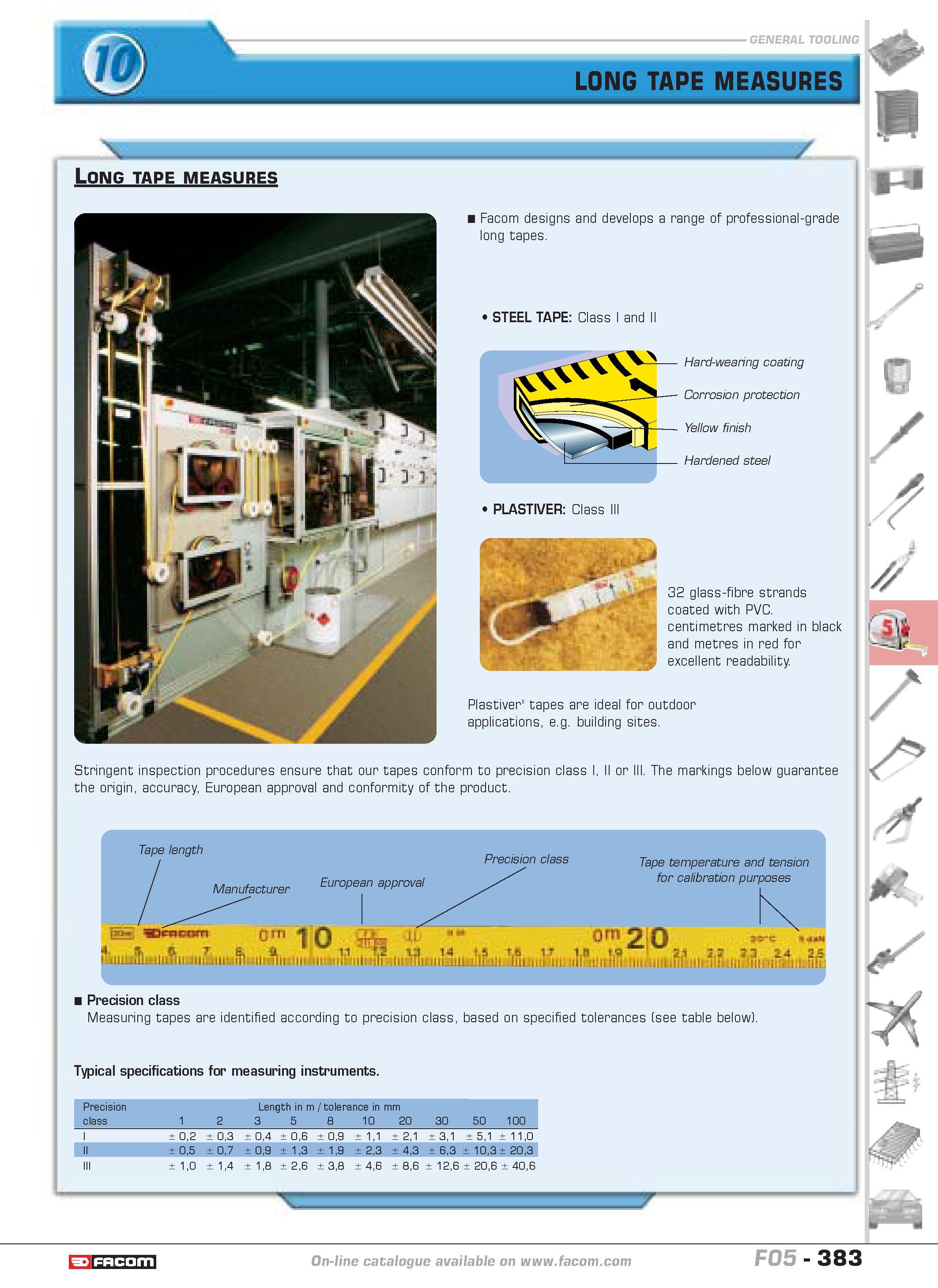

LONG TAPE MEASURES Long tape measures Facom designs and develops a range of professional-grade long tapes. 1 STEEL TAPE Class I and II Plastiver" tapes are ideal for outdoor applications e.g. building sites. Stringent inspection procedures ensure that our tapes conform to precision class I II or III. The markings below guarantee the origin accuracy European approval and conformity of the product. Precision class Manufacturer European approval Tape temperature and tension for calibration purposes JVC SiliaH worn Precision class Measuring tapes are identified according to precision class based on specified tolerances (see table below). Typical specifications for measuring instruments. Precision Length in m tolerance in mm class 1 2 3 5 8 10 20 30 50 100 I 02 03 04 06 09 11 21 31 51 110 II 05 07 09 13 19 23 43 63 103 203 III 10 14 18 26 38 46 86 126 206 406 Hard-wearing coating Corrosion protection Yellow finish Hardened steel PLASTIVER Class III 32 glass-fibre strands coated with PVC. centimetres marked in black and metres in red for excellent readability I K & catalogue FACOM F05 383
