386 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.389

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 389 0386 ENG Lab2u

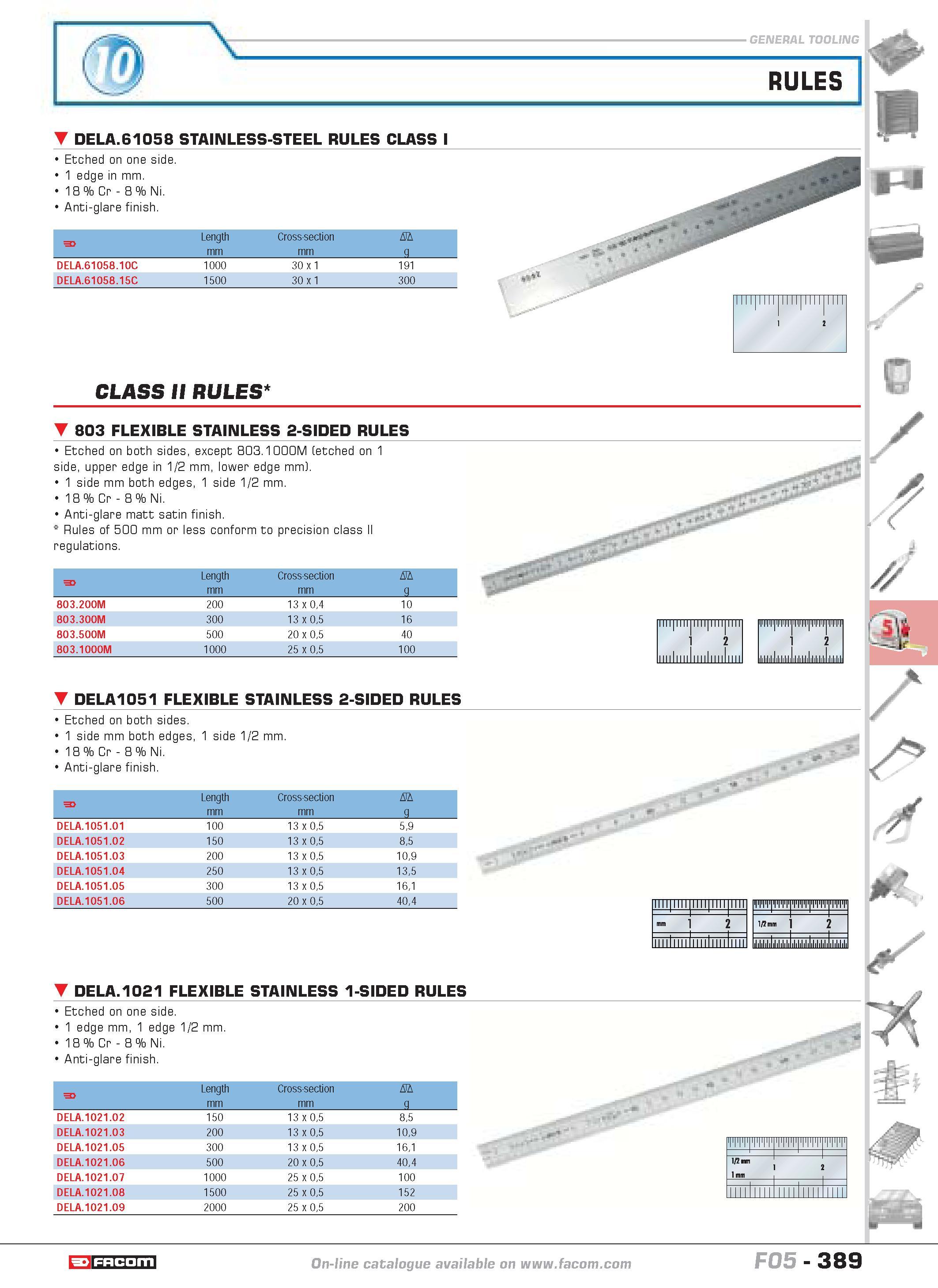

DELA.61058 STAINLESS-STEEL RULES CLASS I Etched on one side. 1 edge in mm. 18% Cr 8% Ni. 1 Anti-glare finish. F Length Cross-section D mm g DELA.61058.10C 1000 30 x 1 191 DELA.61058.15C 1500 30 x 1 300 CLASS II RULES 803 FLEXIBLE STAINLESS 2-SIDED RULES Etched on both sides except 803.1000M (etched on 1 side upper edge in 1 2 mm lower edge mm). 1 side mm both edges 1 side 1 2 mm. 18% Cr 8% Ni. Anti-glare matt satin finish. Rules of 500 mm or less conform to precision class II regulations. F Length mm Cross-section mm D g 803.200M 200 13 x 04 10 803.300M 300 13 x 05 16 803.500M 500 20 x 05 40 803.1000M 1000 25 x 05 100 DELA1051 FLEXIBLE STAINLESS 2-SIDED RULES Etched on both sides. 1 side mm both edges 1 side 1 2 mm. 18% Cr 8% Ni. Anti-glare finish. F Length mm Cross-section mm D g DELA.1051.01 100 13 x 05 59 DELA.1051.02 150 13 x 05 85 DELA.1051.03 200 13 x 05 109 DELA.1051.04 250 13 x 05 135 DELA.1051.05 300 13 x 05 161 DELA.1051.06 500 20 x 05 404 DELA.1021 FLEXIBLE STAINLESS 1-SIDED RULES Etched on one side. 1 edge mm 1 edge 1 2 mm. 18% Cr 8% Ni. Anti-glare finish. F Length mm Cross-section mm D g DELA.1021.02 150 13 x 05 85 DELA.1021.03 200 13 x 05 109 DELA.1021.05 300 13 x 05 161 DELA.1021.06 500 20 x 05 404 DELA.1021.07 1000 25 x 05 100 DELA.1021.08 1500 25 x 05 152 DELA.1021.09 2000 25 x 05 200 catalogue FACOM FO5 389
