360 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.363

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 363 0360 ENG Lab2u

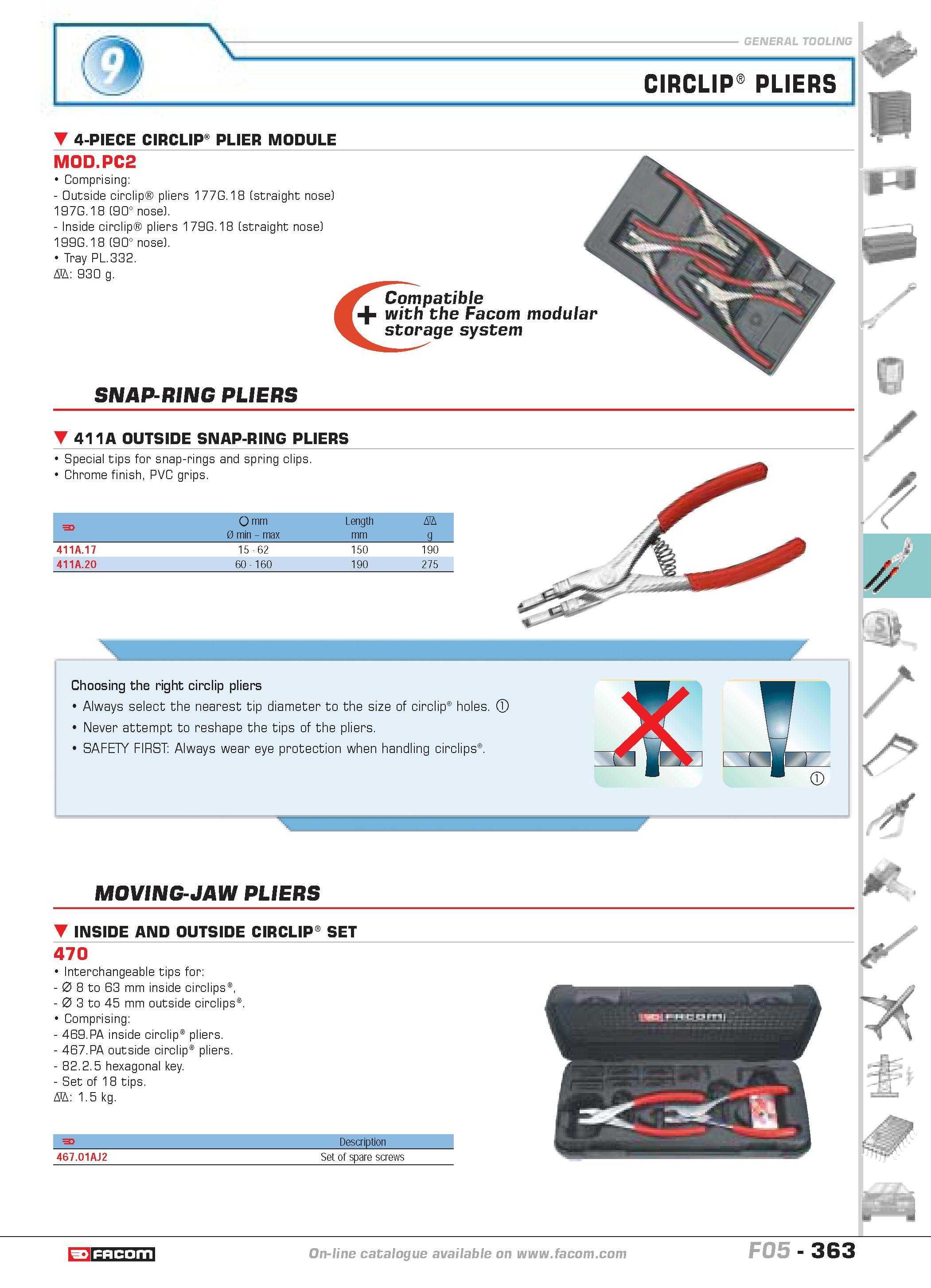

CIRCLIP PLIERS 4-PIECE CIRCLIP PLIER MODULE MOD.PC2 Comprising Outside circlip pliers 177G.18 (straight nose) 197G.18 (90 nose). Inside circlip pliers 179G.18 (straight nose) 199G.18 (90 nose). Tray PL.332. D 930 g. Compatible with the Facom modular storage system SNAP-RING PLIERS 411A OUTSIDE SNAP-RING PLIERS Special tips for snap-rings and spring clips. Chrome finish PVC grips. 0 mm Length D 0 min max mm g 411A.17 15 62 150 190 411A.20 60 160 190 275 Choosing the right circlip pliers Always select the nearest tip diameter to the size of circlip holes. Never attempt to reshape the tips of the pliers. SAFETY FIRST Always wear eye protection when handling circlips MOVING-JAW PLIERS INSIDE AND OUTSIDE CIRCLIP SET 470 Interchangeable tips for 0 8 to 63 mm inside circlips 0 3 to 45 mm outside circlips Comprising 469.PA inside circlip pliers. 467.PA outside circlip pliers. 82.2.5 hexagonal key. Set of 18 tips. D 1.5 kg. F Description 467.01AJ2 Set of spare screws il catalogue FACOM F05 363
