358 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.361

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 361 0358 ENG Lab2u

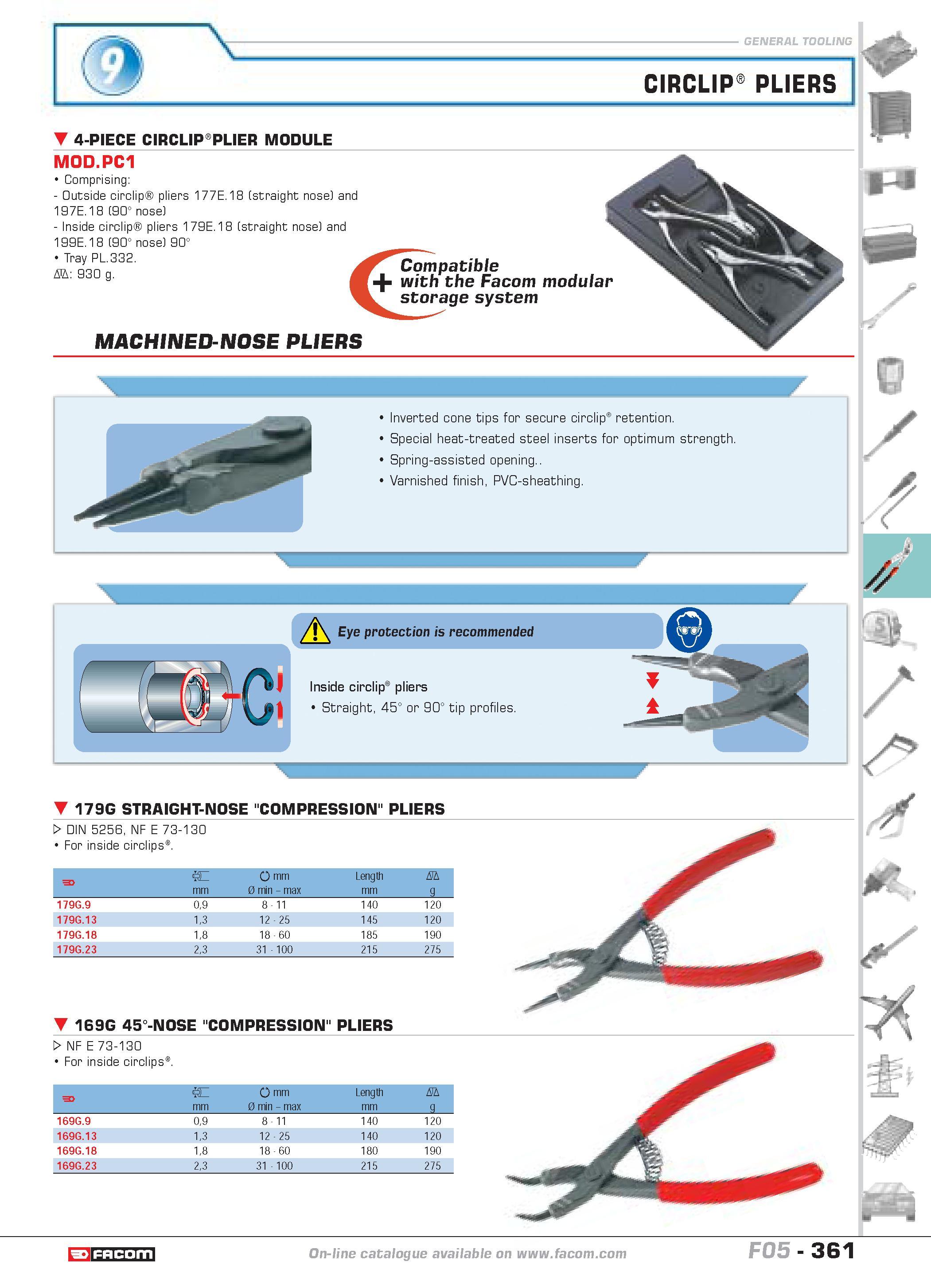

CIRCLIP PLIERS 4-PIECE CIRCLIP PLIER MODULE MOD.PC1 Comprising Outside circlip pliers 177E.18 (straight nose) and 197E.18 (90 nose) Inside circlip pliers 179E.18 (straight nose) and 199E.18 (90 nose) 90 Tray PL.332. D 930 g. MACHINED-NOSE PLIERS Compatible with the Facom modular storage system Inverted cone tips for secure circlip retention. Special heat-treated steel inserts for optimum strength. Spring-assisted opening.. Varnished finish PVC-sheathing. Eye protection is recommended Inside circlip pliers Straight 45 or 90 tip profiles. 179G STRAIGHT-NOSE "COMPRESSION" PLIERS W DIN 5256 NF E 73-130 For inside circlips F W mm d mm 0 min max Length mm D g 179G.9 09 8 11 140 120 179G.13 13 12 25 145 120 179G.18 18 18 60 185 190 179G.23 23 31 100 215 275 169G 45-NOSE "COMPRESSION" PLIERS W NF E 73-130 For inside circlips F W mm d mm 0 min max Length mm D g 169G.9 09 8 11 140 120 169G.13 13 12 25 140 120 169G.18 18 18 60 180 190 169G.23 23 31 100 215 275 I d M catalogue FACOM F05 361
