362 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.365

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 365 0362 ENG Lab2u

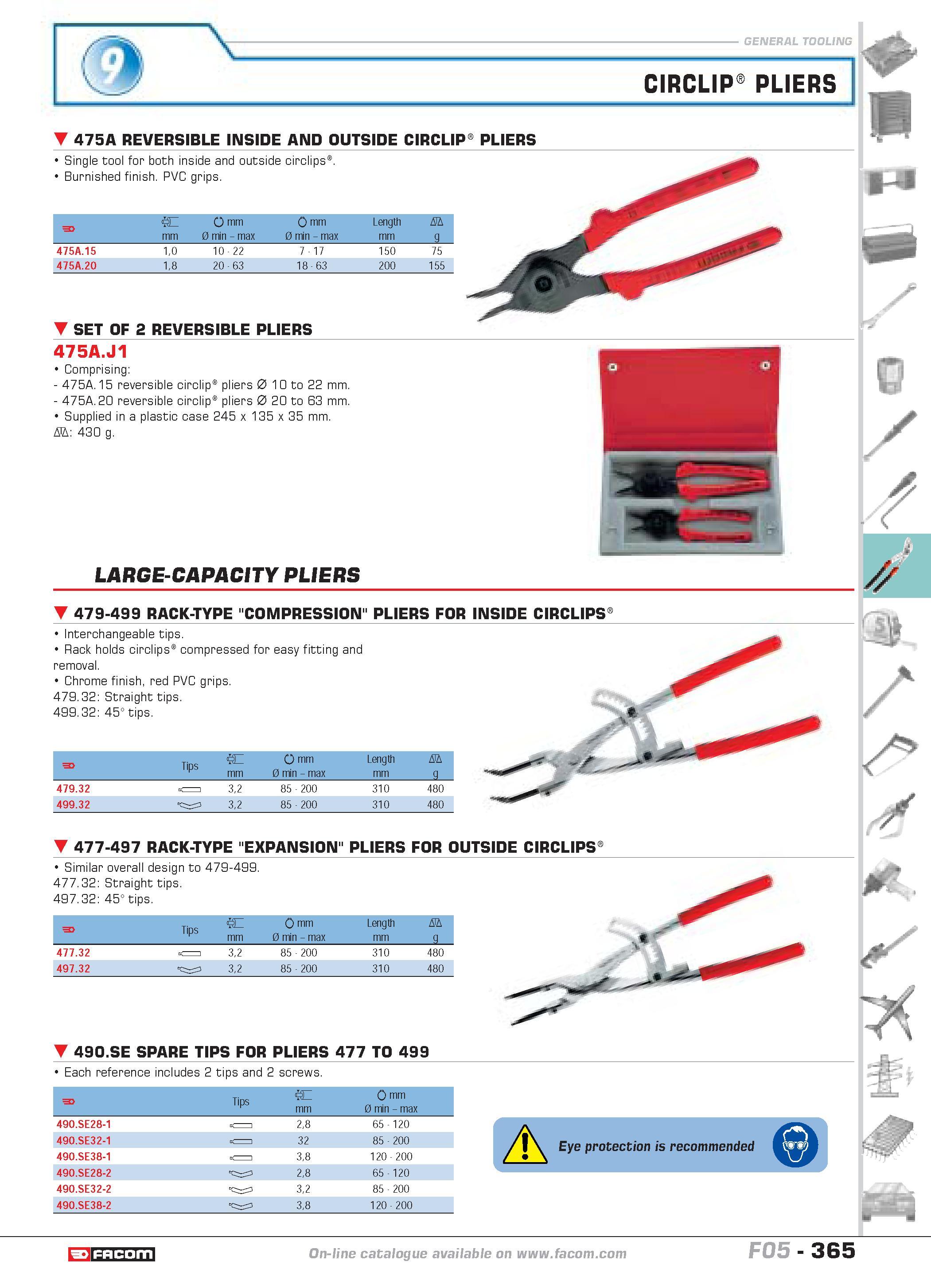

CIRCLIP PLIERS 475A REVERSIBLE INSIDE AND OUTSIDE CIRCLIP PLIERS Single tool for both inside and outside circlips Burnished finish. PVC grips. F W d mm O mm Length D mm 0 min max 0 min max mm g 475A.15 10 10 22 7 17 150 75 475A.20 18 20 63 18 63 200 155 SET OF 2 REVERSIBLE PLIERS 475A.J1 Comprising 475A.15 reversible circlip pliers 0 10 to 22 mm. 475A.20 reversible circlip pliers 0 20 to 63 mm. Supplied in a plastic case 245 x 135 x 35 mm. D 430 g. LARGE-CAPACITY PLIERS 479-499 RACK-TYPE "COMPRESSION" PLIERS FOR INSIDE CIRCLIPS Interchangeable tips. Rack holds circlips compressed for easy fitting and removal. Chrome finish red PVC grips. 479.32 Straight tips. 499.32 45 tips. F Tips W mm d mm 0 min max Length mm D g 479.32 s 32 85 200 310 480 499.32 32 85 200 310 480 477-497 RACK-TYPE "EXPANSION" PLIERS FOR OUTSIDE CIRCLIPS Similar overall design to 479-499. 477.32 Straight tips. 497.32 45tips. F W Tips mm O mm 0 min max Length D mm g 477.32 1 32 85 200 310 480 497.32 S 32 85 200 310 480 490.SE SPARE TIPS FOR PLIERS 477 TO 499 Each reference includes 2 tips and 2 screws. F Tips W mm O mm 0 min max 490.SE28-1 28 65 120 490.SE32-1 32 85 200 490.SE38-1 38 120 200 490.SE28-2 S 28 65 120 490.SE32-2 S 32 85 200 490.SE38-2 S 38 120 200 A Eye protection is recommended catalogue FACOM F05 365
