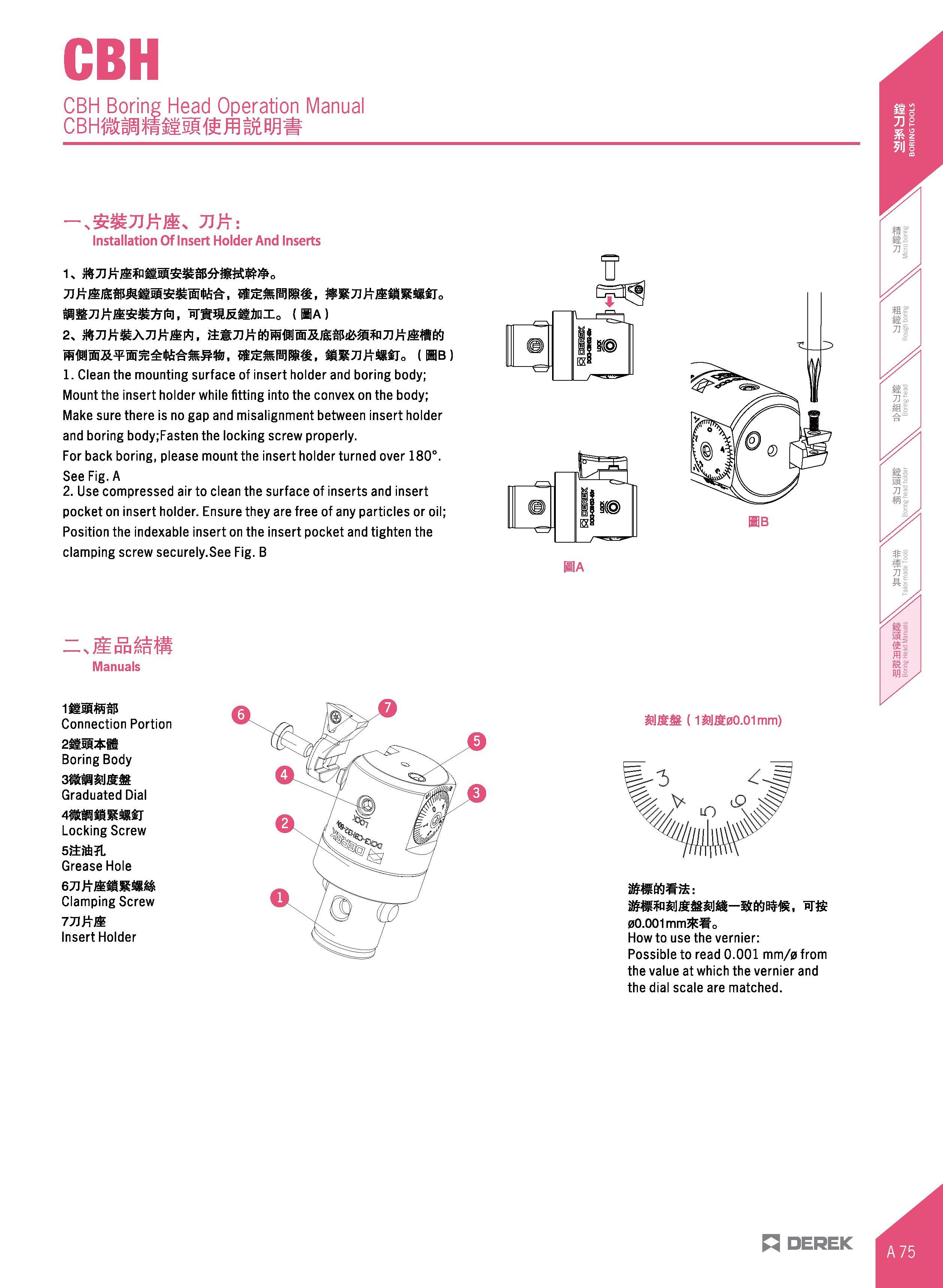

CBH CBH Boring CBHfSSHfii Head Operation Manual isi immm Installation Of Insert Holder And Inserts m&Tixm&mjift, Rimsiisnio (bai 2. MTiKmxTiKmft, mis. m.%., mmTixm&o ( hbi 1. Clean the mounting surface of insert holder and boring body; Mount the insert holder while fitting into the convex on the body; Make sure there is no gap and misalignment between insert holder and boring body;Fasten the locking screw properly. For back boring, please mount the insert holder turned over 180°. See Fig. A 2. Use compressed air to clean the surface of inserts and insert pocket on insert holder. Ensure they are free of any particles or oil; Position the indexable insert on the insert pocket and tighten the clamping screw securely.See Fig. B i&K Manuals LPPftq' 1H 5S5 Connection Portion 2HaS H Boring Body smammM: Graduated Dial Locking Screw 5ft L Grease Hole Clamping Screw 7JJXIM Insert Holder iDjgffi (l2JlJg0O.O1mm) 00.001 mm3 S o How to use the vernier: Possible to read 0.001 mm/0 from the value at which the vernier and the dial scale are matched. I Til m 21 n DEREK
