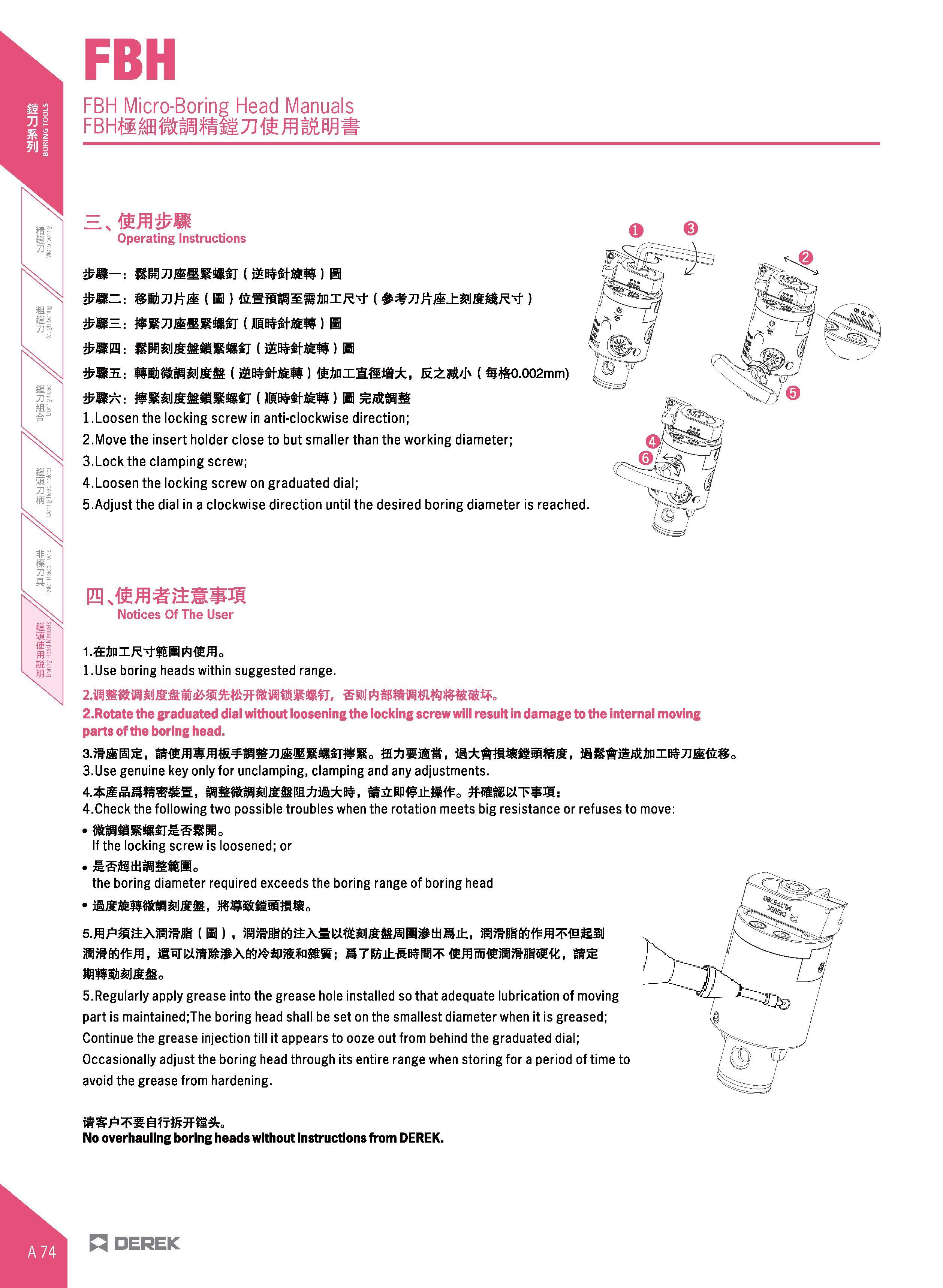

FBH FBH Micro-Boring Head Manuals Operating Instructions &w . mffljimmmm () m &W=.: ( H ) ) & =: wmjimmmm (jmmw) mm: mmmmmmmmsi () m wniMmftfi ) ffiinxxaiN . t o.oa2mm) pmis-. (wmtwm ) m %&&& 1.Loosen the locking screw in anti-clockwise direction; 2.Move the insert holder close to but smaller than the working diameter; 3.Lock the clamping screw; 4.Loosen the locking screw on graduated dial; 5.Adjust the dial in a clockwise direction until the desired boring diameter is reached Notices Of The User 1 .Use boring heads within suggested range. snatHravrntttttiw. 2.Rotate the graduated dial without loosening the locking screw will result in damage to the internal moving parts of the boring head. 3.mmm£. n auMum£. as Bdunxi 7jatt . 3.Use genuine key only for unclamping, clamping and any adjustments. 4t camissB. £ wi±i fto jhmktf : 4.Check the following two possible troubles when the rotation meets big resistance or refuses to move: If the locking screw is loosened; or . ASlSiUMSKH. the boring diameter required exceeds the boring range of boring head m&mmumm&m, mm&immmo 5.Regularly apply grease into the grease hole installed so that adequate lubrication of moving part is maintained;The boring head shall be set on the smallest diameter when it is greased; Continue the grease injection till it appears to ooze out from behind the graduated dial; Occasionally adjust the boring head through its entire range when storing for a period of time to avoid the grease from hardening. No overhauling boring heads without instructions from DEREK. DEREK
