66 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.A35

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. A35 0066 Lab2u

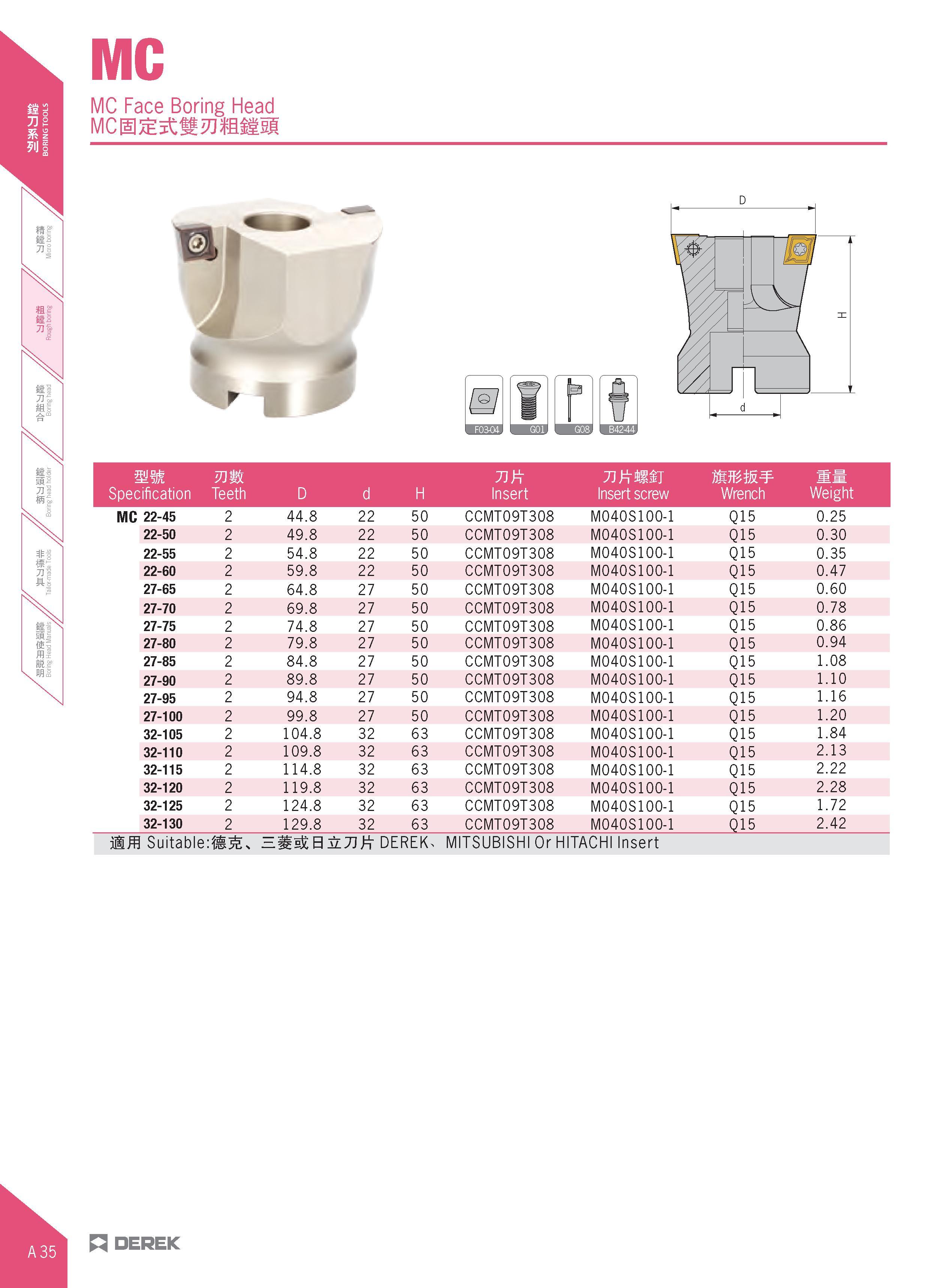

NIC MC Face Boring Head Ql / 1 r mm Specification mm. Teeth D d H Tift Insert Insert screw tmw Wrench Weight MC 22-45 2 44.8 22 50 CCMT09T308 M040S100-1 Q15 0.25 22-50 2 49.8 22 50 CCMT09T308 M040S100-1 Q15 0.30 22-55 2 54.8 22 50 CCMT09T308 M040S100-1 Q15 0.35 22-60 2 59.8 22 50 CCMT09T308 M040S100-1 Q15 0.47 27-65 2 64.8 27 50 CCMT09T308 M040S100-1 Q15 0.60 27-70 2 69.8 27 50 CCMT09T308 M040S100-1 Q15 0.78 27-75 2 74.8 27 50 CCMT09T308 M040S100-1 Q15 0.86 27-80 2 79.8 27 50 CCMT09T308 M040S100-1 Q15 0.94 27-85 2 84.8 27 50 CCMT09T308 M040S100-1 Q15 1.08 27-90 2 89.8 27 50 CCMT09T308 M040S100-1 Q15 1.10 27-95 2 94.8 27 50 CCMT09T308 M040S100-1 Q15 1.16 27-100 2 99.8 27 50 CCMT09T308 M040S100-1 Q15 1.20 32-105 2 104.8 32 63 CCMT09T308 M040S100-1 Q15 1.84 32-110 2 109.8 32 63 CCMT09T308 M040S100-1 Q15 2.13 32-115 2 114.8 32 63 CCMT09T308 M040S100-1 Q15 2.22 32-120 2 119.8 32 63 CCMT09T308 M040S100-1 Q15 2.28 32-125 2 124.8 32 63 CCMT09T308 M040S100-1 Q15 1.72 32-130 2 129.8 32 63 CCMT09T308 M040S100-1 015 2.42 mm Suitable:fl£, = JLJJtt DEREK. MITSUBISHI Or HITACHI Insert DEREK
