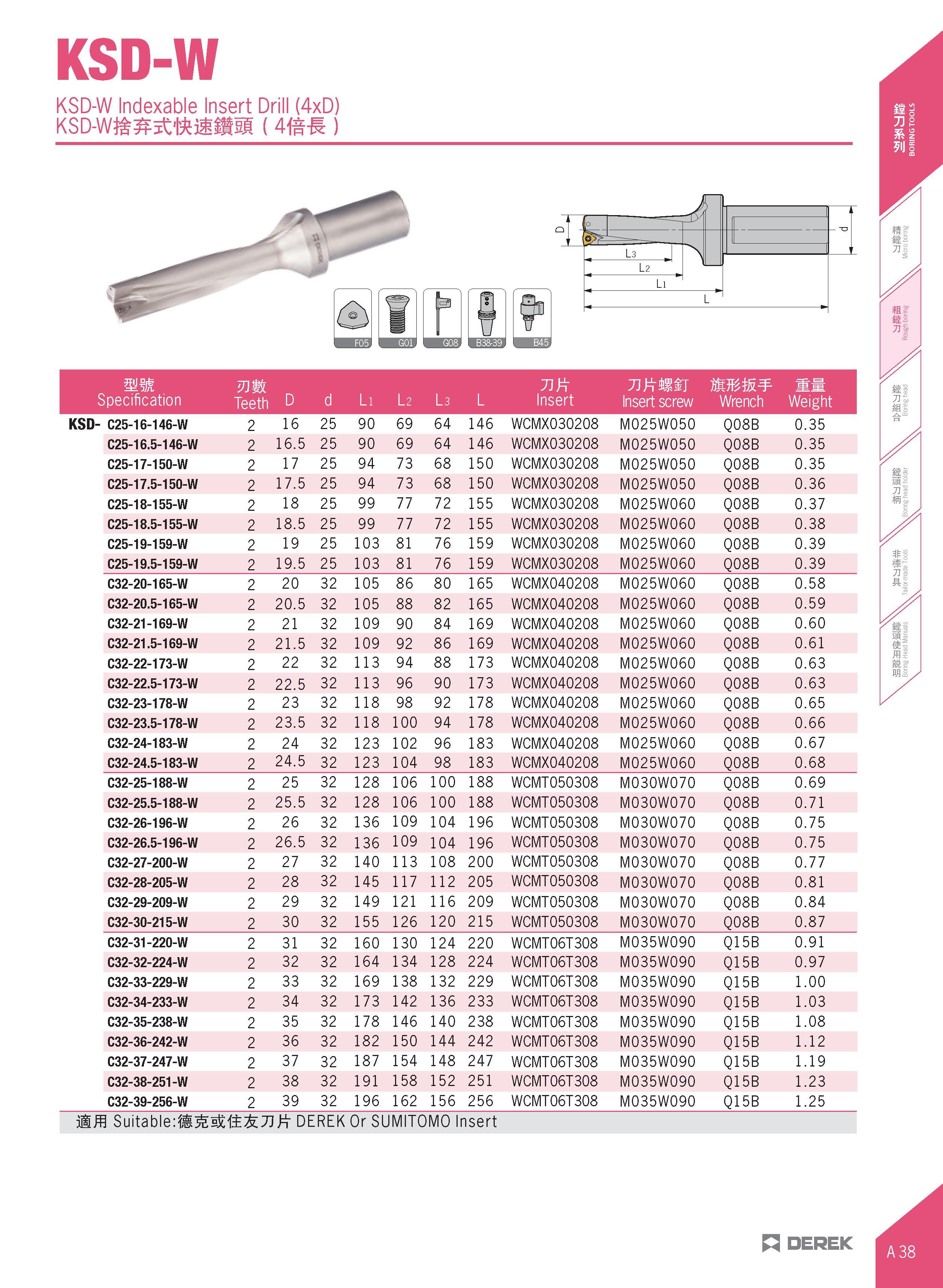

KSD-W KSD-W Indexable Insert Drill (4xD) (Mm) mm mm. Tift tmw ff Specification Teeth D d Li l 2 l 3 L Insert Insert screw Wrench Weight KSD- C25-16-146-W 2 16 25 90 69 64 146 WCMX030208 M025W050 Q08B 0.35 C25-16.5-146-W 2 16.5 25 90 69 64 146 WCMX030208 M025W050 Q08B 0.35 C25-17-150-W 2 17 25 94 73 68 150 WCMX030208 M025W050 Q08B 0.35 C25-17.5-150-W 2 17.5 25 94 73 68 150 WCMX030208 M025W050 Q08B 0.36 C25-18-155-W 2 18 25 99 77 72 155 WCMX030208 M025W060 Q08B 0.37 C25-18.5-155-W 2 18.5 25 99 77 72 155 WCMX030208 M025W060 Q08B 0.38 C25-19-159-W 2 19 25 103 81 76 159 WCMX030208 M025W060 Q08B 0.39 C25-19.5-159-W 2 19.5 25 103 81 76 159 WCMX030208 M025W060 Q08B 0.39 C32-20-165-W 2 20 32 105 86 80 165 WCMX040208 M025W060 Q08B 0.58 C32-20.5-165-W 2 20.5 32 105 88 82 165 WCMX040208 M025W060 Q08B 0.59 C32-21-169-W 2 21 32 109 90 84 169 WCMX040208 M025W060 Q08B 0.60 C32-21.5-169-W 2 21.5 32 109 92 86 169 WCMX040208 M025W060 Q08B 0.61 C32-22-173-W 2 22 32 113 94 88 173 WCMX040208 M025W060 Q08B 0.63 C32-22.5-173-W 2 22.5 32 113 96 90 173 WCMX040208 M025W060 Q08B 0.63 C32-23-178-W 2 23 32 118 98 92 178 WCMX040208 M025W060 Q08B 0.65 C32-23.5-178-W 2 23.5 32 118 100 94 178 WCMX040208 M025W060 Q08B 0.66 C32-24-183-W 2 24 32 123 102 96 183 WCMX040208 M025W060 Q08B 0.67 C32-24.5-183-W 2 24.5 32 123 104 98 183 WCMX040208 M025W060 Q08B 0.68 C32-25-188-W 2 25 32 128 106 100 188 WCMT050308 M030W070 Q08B 0.69 C32-25.5-188-W 2 25.5 32 128 106 100 188 WCMT050308 M030W070 Q08B 0.71 C32-26-196-W 2 26 32 136 109 104 196 WCMT050308 M030W070 Q08B 0.75 C32-26.5-196-W 2 26.5 32 136 109 104 196 WCMT050308 M030W070 Q08B 0.75 C32-27-200-W 2 27 32 140 113 108 200 WCMT050308 M030W070 Q08B 0.77 C32-28-205-W 2 28 32 145 117 112 205 WCMT050308 M030W070 Q08B 0.81 C32-29-209-W 2 29 32 149 121 116 209 WCMT050308 M030W070 Q08B 0.84 C32-30-215-W 2 30 32 155 126 120 215 WCMT050308 M030W070 Q08B 0.87 C32-31 -220-W 2 31 32 160 130 124 220 WCMT06T308 M035W090 Q15B 0.91 C32-32-224-W 2 32 32 164 134 128 224 WCMT06T308 M035W090 Q15B 0.97 C32-33-229-W 2 33 32 169 138 132 229 WCMT06T308 M035W090 Q15B 1.00 C32-34-233-W 2 34 32 173 142 136 233 WCMT06T308 M035W090 Q15B 1.03 C32-35-238-W 2 35 32 178 146 140 238 WCMT06T308 M035W090 Q15B 1.08 C32-36-242-W 2 36 32 182 150 144 242 WCMT06T308 M035W090 Q15B 1.12 C32-37-247-W 2 37 32 187 154 148 247 WCMT06T308 M035W090 Q15B 1.19 C32-38-251 -W 2 38 32 191 158 152 251 WCMT06T308 M035W090 Q15B 1.23 C32-39-256-W 2 39 32 196 162 156 256 WCMT06T308 M035W090 Q15B 1.25 jlffl Suitable:fl£s£f±;£7ltt DEREK Or SUMITOMO Insert DEPEK
