63 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.A32

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. A32 0063 Lab2u

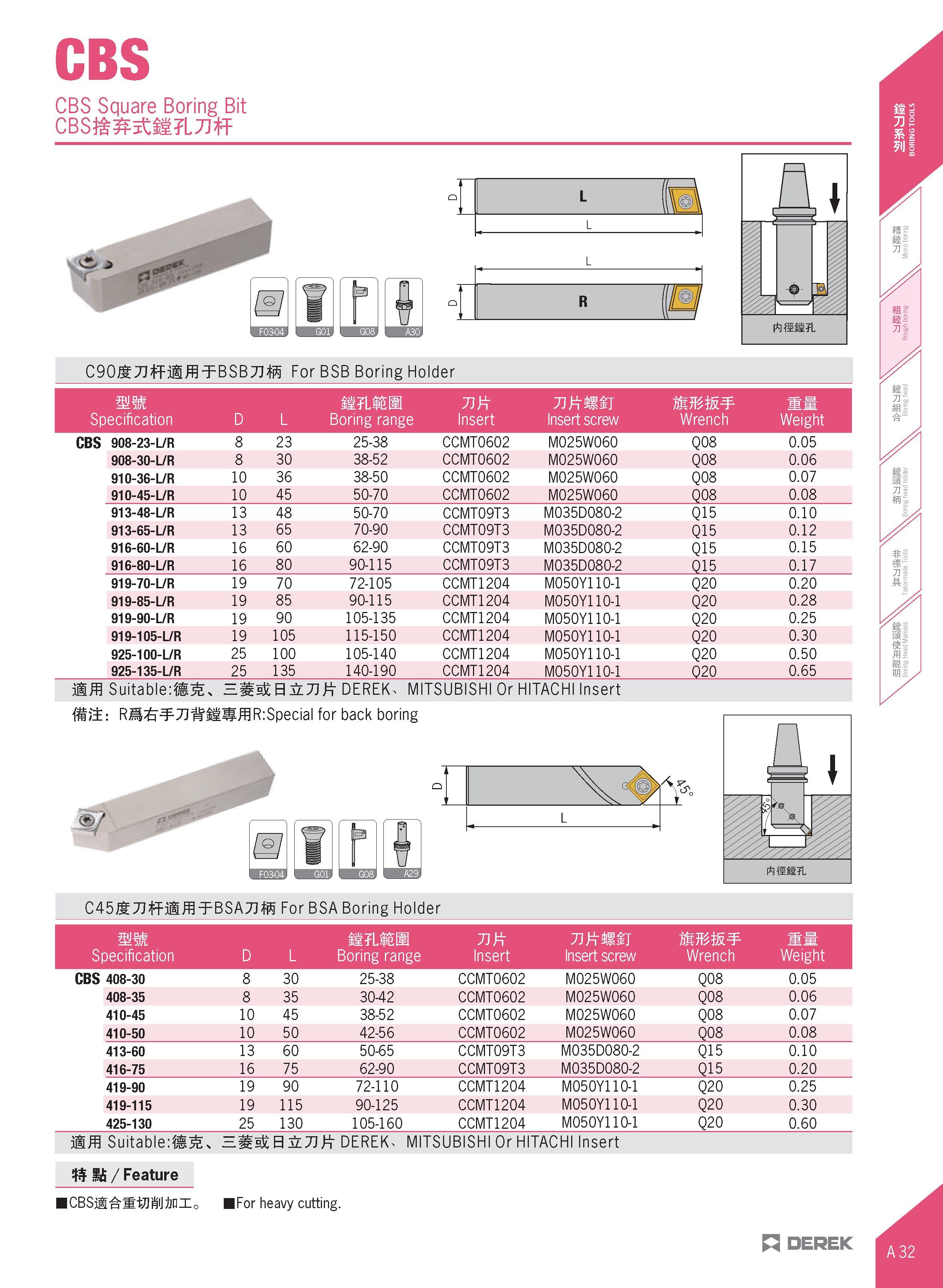

CBS CBS Square Boring Bit CBSJ£ 5tli7L7Jff C90Jt Jlftilffl-T-BSB714S For BSB Boring Holder jlffl SuitableiflS, MS: RMttnm = mW:B±L7lft DEREK. MITSUBISHI Or HITACHI Insert HpfflR:Special for back boring P C45fi7Ifl:3lfflTBSA7Iffi For BSA Boring Holder \ mm Specification D L fULffiHI Boring range Insert Insert screw MMW Wrench Weight CBS 908-23-L/R 8 23 25-38 CCMT0602 M025W060 Q08 0.05 908-30-L/R 8 30 38-52 CCMT0602 M025W060 Q08 0.06 910-36-L/R 10 36 38-50 CCMT0602 M025W060 Q08 0.07 910-45-L/R 10 45 50-70 CCMT0602 M025W060 008 0.08 913-48-L/R 13 48 50-70 CCMT09T3 M035D080-2 Q15 0.10 913-65-L/R 13 65 70-90 CCMT09T3 M035D080-2 Q15 0.12 916-60-L/R 16 60 62-90 CCMT09T3 M035D080-2 Q15 0.15 916-80-L/R 16 80 90-115 CCMT09T3 M035D080-2 015 0.17 919-70-L/R 19 70 72-105 CCMT1204 M050Y110-1 Q20 0.20 919-85-L/R 19 85 90-115 CCMT1204 M050Y110-1 Q20 0.28 919-90-L/R 19 90 105-135 CCMT1204 M050Y110-1 Q20 0.25 919-105-L/R 19 105 115-150 CCMT1204 M050Y110-1 Q20 0.30 925-100-L/R 25 100 105-140 CCMT1204 M050Y110-1 Q20 0.50 925-135-L/R 25 135 140-190 CCMT1204 M050Y110-1 020 0.65 S li / Feature I For heavy cutting. mm Specification D L it Lfii IS Boring range Tift Insert Insert screw Wrench Weight CBS 408-30 8 30 25-38 CCMT0602 M025W060 Q08 0.05 408-35 8 35 30-42 CCMT0602 M025W060 Q08 0.06 410-45 10 45 38-52 CCMT0602 M025W060 Q08 0.07 410-50 10 50 42-56 CCMT0602 M025W060 Q08 0.08 413-60 13 60 50-65 CCMT09T3 M035D080-2 Q15 0.10 416-75 16 75 62-90 CCMT09T3 M035D080-2 Q15 0.20 419-90 19 90 72-110 CCMT1204 M050Y110-1 Q20 0.25 419-115 19 115 90-125 CCMT1204 M050Y110-1 Q20 0.30 425-130 25 130 105-160 CCMT1204 M050Y110-1 Q20 0.60 Suitable: DEREK. MITSUBISHI Or HITACHI Insert m H DEPEK
