60 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.A29

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. A29 0060 Lab2u

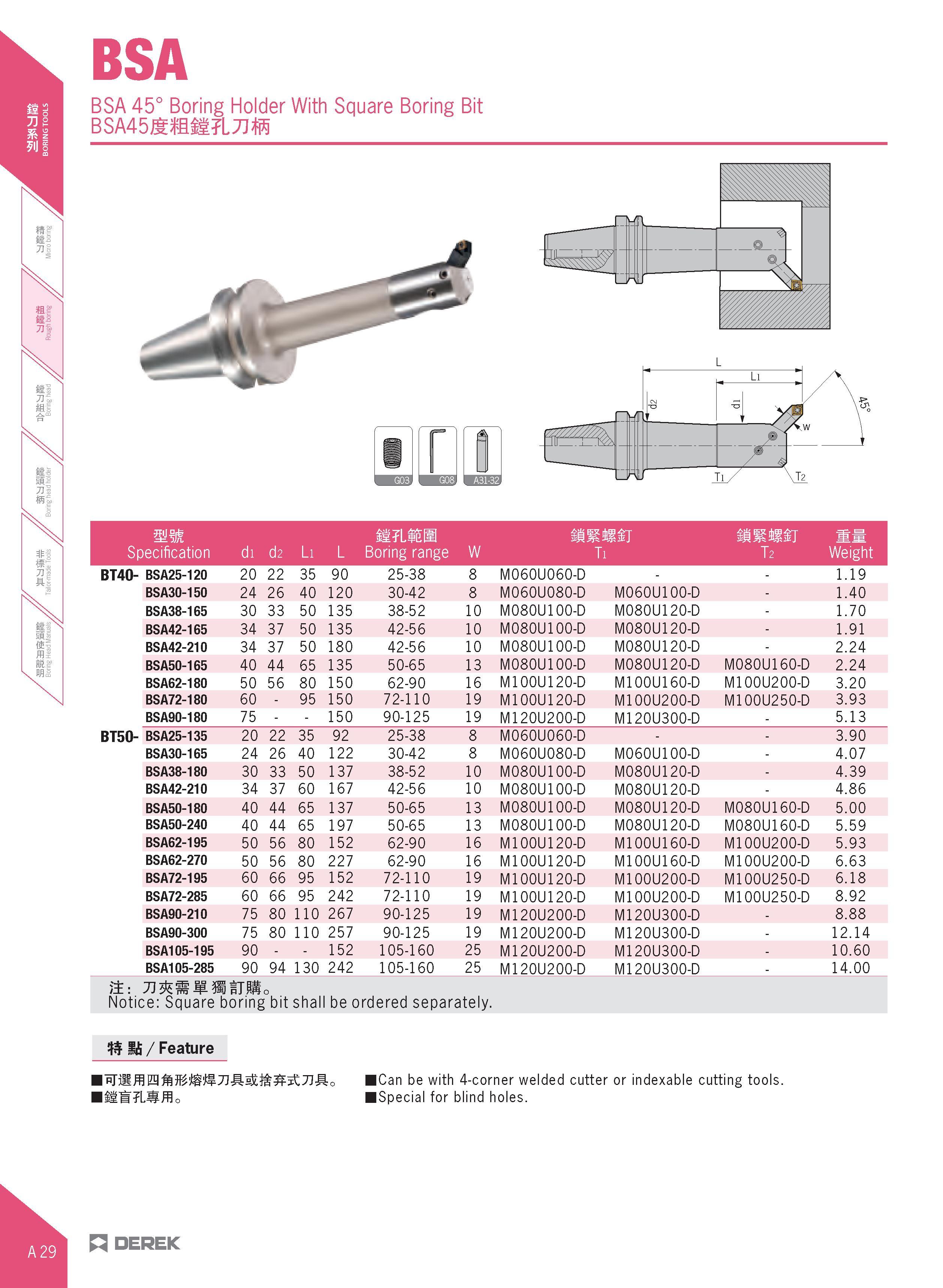

BSA BSA 45° Boring Holder With Square Boring Bit BSA45Jtflli7L7J i r mm it Lfii IS SI S5SSJ mmmu gf Specification di d2 Li L Boring range W Ti T2 Weight BT40- BSA25-120 20 22 35 90 25-38 8 M060U060-D 1.19 BSA30-150 24 26 40 120 30-42 8 M060U080-D M060U100-D - 1.40 BSA38-165 30 33 50 135 38-52 10 M080U100-D M080U120-D - 1.70 BSA42-165 34 37 50 135 42-56 10 M080U100-D M080U120-D - 1.91 BSA42-210 34 37 50 180 42-56 10 M080U100-D M080U120-D - 2.24 BSA50-165 40 44 65 135 50-65 13 M080U100-D M080U120-D M080U160-D 2.24 BSA62-180 50 56 80 150 62-90 16 M100U120-D M100U160-D M100U200-D 3.20 BSA72-180 60 - 95 150 72-110 19 M100U120-D M100U200-D M100U250-D 3.93 BSA90-180 75 150 90-125 19 M120U200-D M120U300-D - 5.13 BT50- BSA25-135 20 “22“ 35 92 25-38 8 M060U060-D 3.90 BSA30-165 24 26 40 122 30-42 8 M060U080-D M060U100-D - 4.07 BSA38-180 30 33 50 137 38-52 10 M080U100-D M080U120-D - 4.39 BSA42-210 34 37 60 167 42-56 10 M080U100-D M080U120-D - 4.86 BSA50-180 40 44 65 137 50-65 13 M080U100-D M080U120-D M080U160-D 5.00 BSA50-240 40 44 65 197 50-65 13 M080U100-D M080U120-D M080U160-D 5.59 BSA62-195 50 56 80 152 62-90 16 M100U120-D M100U160-D M100U200-D 5.93 BSA62-270 50 56 80 227 62-90 16 M100U120-D M100U160-D M100U200-D 6.63 BSA72-195 60 66 95 152 72-110 19 M100U120-D M100U200-D M100U250-D 6.18 BSA72-285 60 66 95 242 72-110 19 M100U120-D M100U200-D M100U250-D 8.92 BSA90-210 75 80 110 267 90-125 19 M120U200-D M120U300-D - 8.88 BSA90-300 75 80 110 257 90-125 19 M120U200-D M120U300-D - 12.14 BSA105-195 90 152 105-160 25 M120U200-D M120U300-D - 10.60 BSA105-285 90 94 130 242 105-160 25 M120U200-D M120U300-D - 14.00 j±: Notice: Square boring bit shall be ordered separately. iCan be with 4-corner welded cutter or indexable cutting tools. iSpecial for blind holes. DEREK
