491 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.H18

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. H18 0491 Lab2u

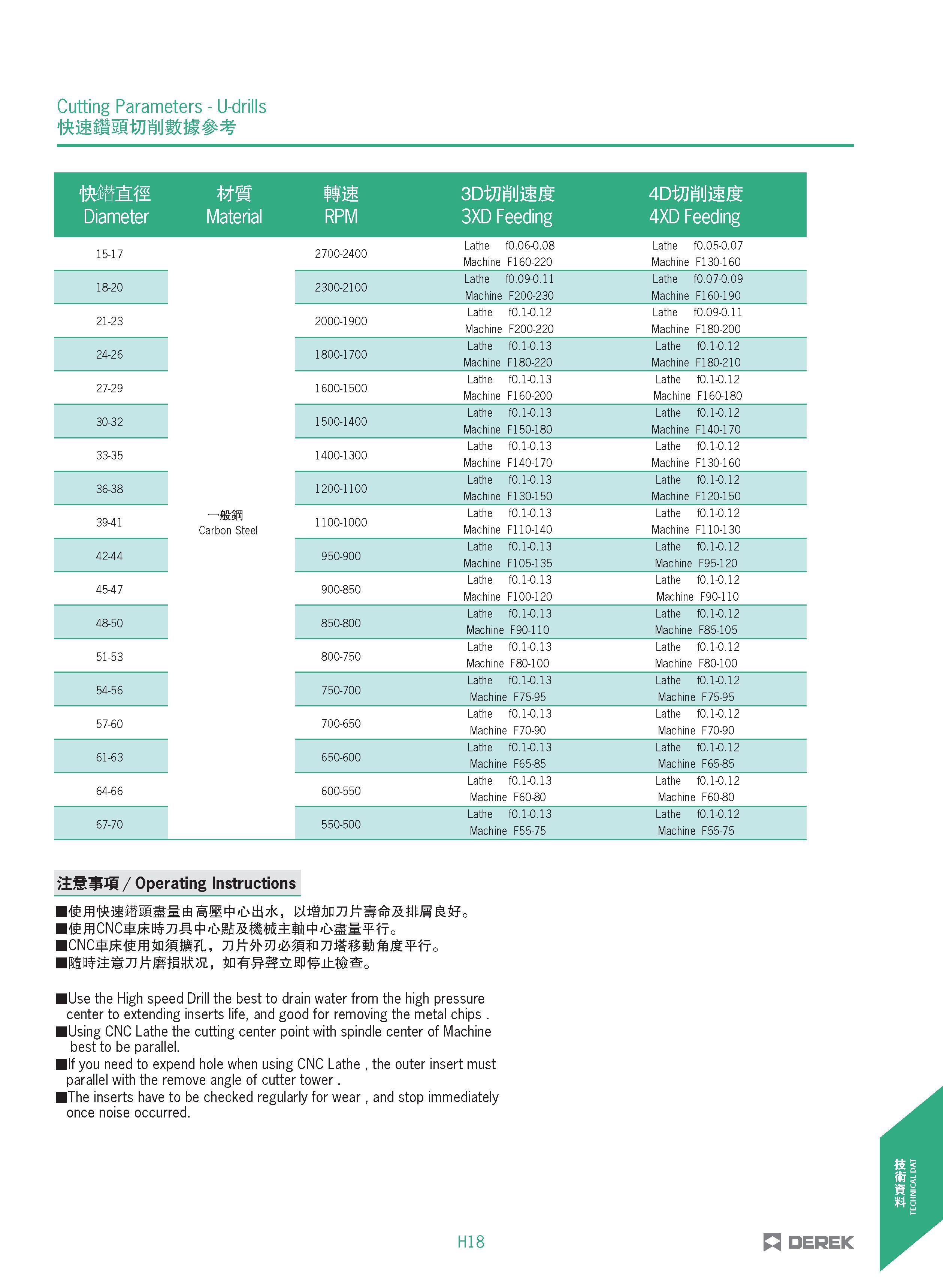

Cutting Parameters - U-drills Wff mm 3D JiiS 4Dwmmm Diameter Material RPM 3XD Feeding 4XD Feeding 15-17 2700-2400 Lathe f0.06-0.08 Machine FI 60-220 Lathe f0.05-0.07 Machine FI30-160 18-20 2300-2100 Lathe f0.09-0.11 Machine F200-230 Lathe f0.07-0.09 Machine FI60-190 21-23 2000-1900 Lathe f0.1-0.12 Machine F200-220 Lathe f0.09-0.11 Machine F180-200 24-26 1800-1700 Lathe f0.1-0.13 Machine F180-220 Lathe f0.1-0.12 Machine FI80-210 27-29 1600-1500 Lathe f0.1-0.13 Machine FI 60-200 Lathe f0.1-0.12 Machine FI60-180 30-32 1500-1400 Lathe f0.1-0.13 Machine FI 50-180 Lathe f0.1-0.12 Machine FI40-170 33-35 1400-1300 Lathe f0.1-0.13 Machine FI 40-170 Lathe f0.1-0.12 Machine FI30-160 36-38 1200-1100 Lathe f0.1-0.13 Machine FI 30-150 Lathe f0.1-0.12 Machine FI20-150 39-41 'ilxlPl Carbon Steel 1100-1000 Lathe fO.1-0.13 Machine FI 10-140 Lathe f0.1-0.12 Machine FI 10-130 42-44 950-900 Lathe fO.1-0.13 Machine FI 05-135 Lathe f0.1-0.12 Machine F95-120 45-47 900-850 Lathe f0.1-0.13 Machine F100-120 Lathe f0.1-0.12 Machine F90-110 48-50 850-800 Lathe f0.1-0.13 Machine F90-110 Lathe f0.1-0.12 Machine F85-105 51-53 800-750 Lathe f0.1-0.13 Machine F80-100 Lathe f0.1-0.12 Machine F80-100 54-56 750-700 Lathe f0.1-0.13 Machine F75-95 Lathe f0.1-0.12 Machine F75-95 57-60 700-650 Lathe f0.1-0.13 Machine F70-90 Lathe f0.1-0.12 Machine F70-90 61-63 650-600 Lathe f0.1-0.13 Machine F65-85 Lathe f0.1-0.12 Machine F65-85 64-66 600-550 Lathe f0.1-0.13 Machine F60-80 Lathe f0.1-0.12 Machine F60-80 67-70 550-500 Lathe f0.1-0.13 Machine F55-75 Lathe f0.1-0.12 Machine F55-75 / Operating Instructions ffiffl'fc&illiffsMilMiiiSiS41 '£>tHtR, WiflAnTJJn gPnpXHEJSlE ,J 0 CNCifJ lf Tin WttM±H ifrfi ¥fTo cNc j teffljn si L, Tixs'b'n&mmTitmmfk& fto Use the High speed Drill the best to drain water from the high pressure center to extending inserts life, and good for removing the metal chips . Using CNC Lathe the cutting center point with spindle center of Machine best to be parallel. If you need to expend hole when using CNC Lathe the outer insert must parallel with the remove angle of cutter tower. The inserts have to be checked regularly for wear, and stop immediately once noise occurred. H18
