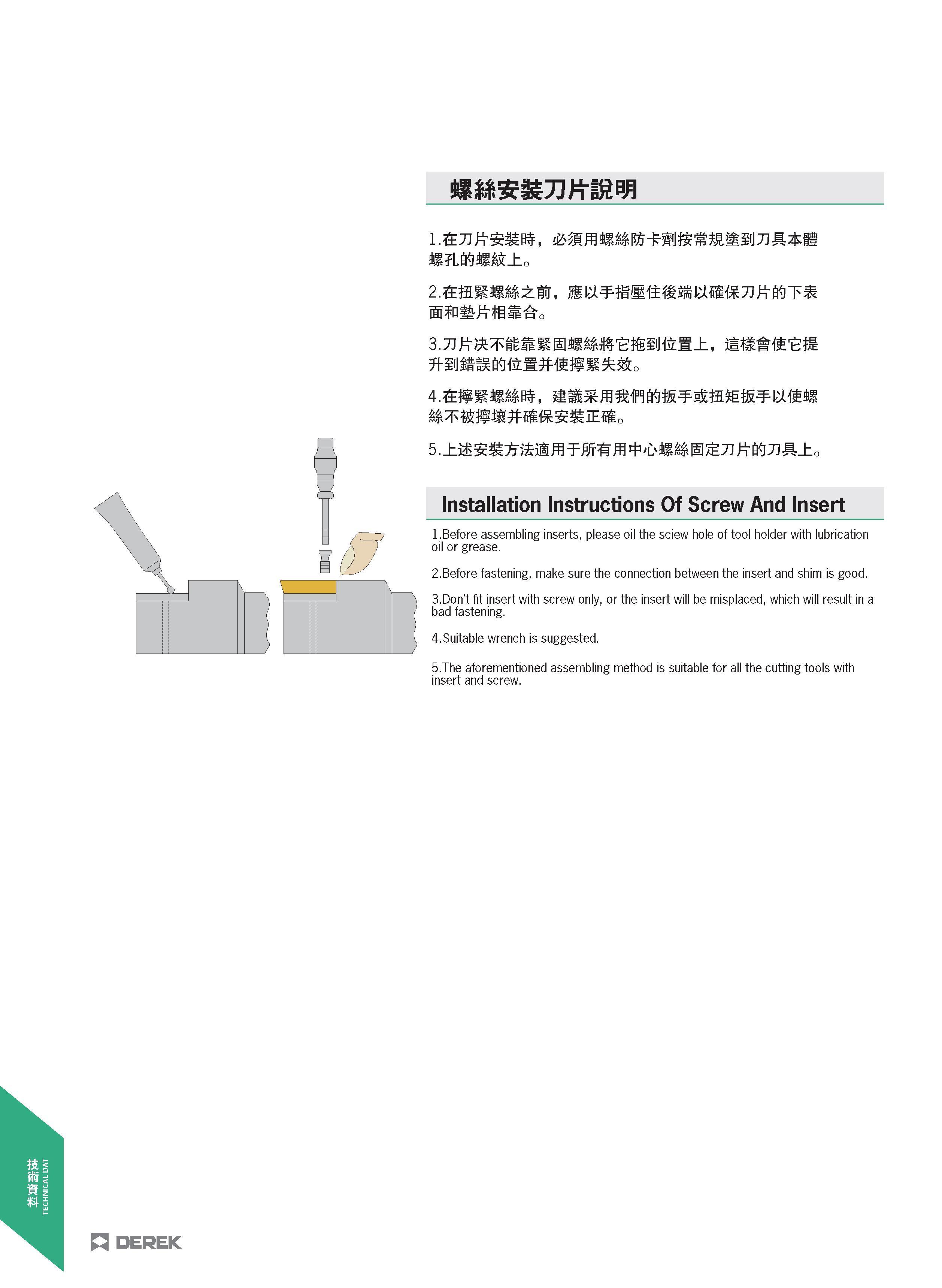

Installation Instructions Of Screw And Insert 1.Before assembling inserts, please oil the sciew hole of tool holder with lubrication oil or grease. 2.Before fastening, make sure the connection between the insert and shim is good. 3.Don’t fit insert with screw only, or the insert will be misplaced, which will result in a bad fastening. 4.Suitable wrench is suggested. 5.The aforementioned assembling method is suitable for all the cutting tools with insert and screw.
