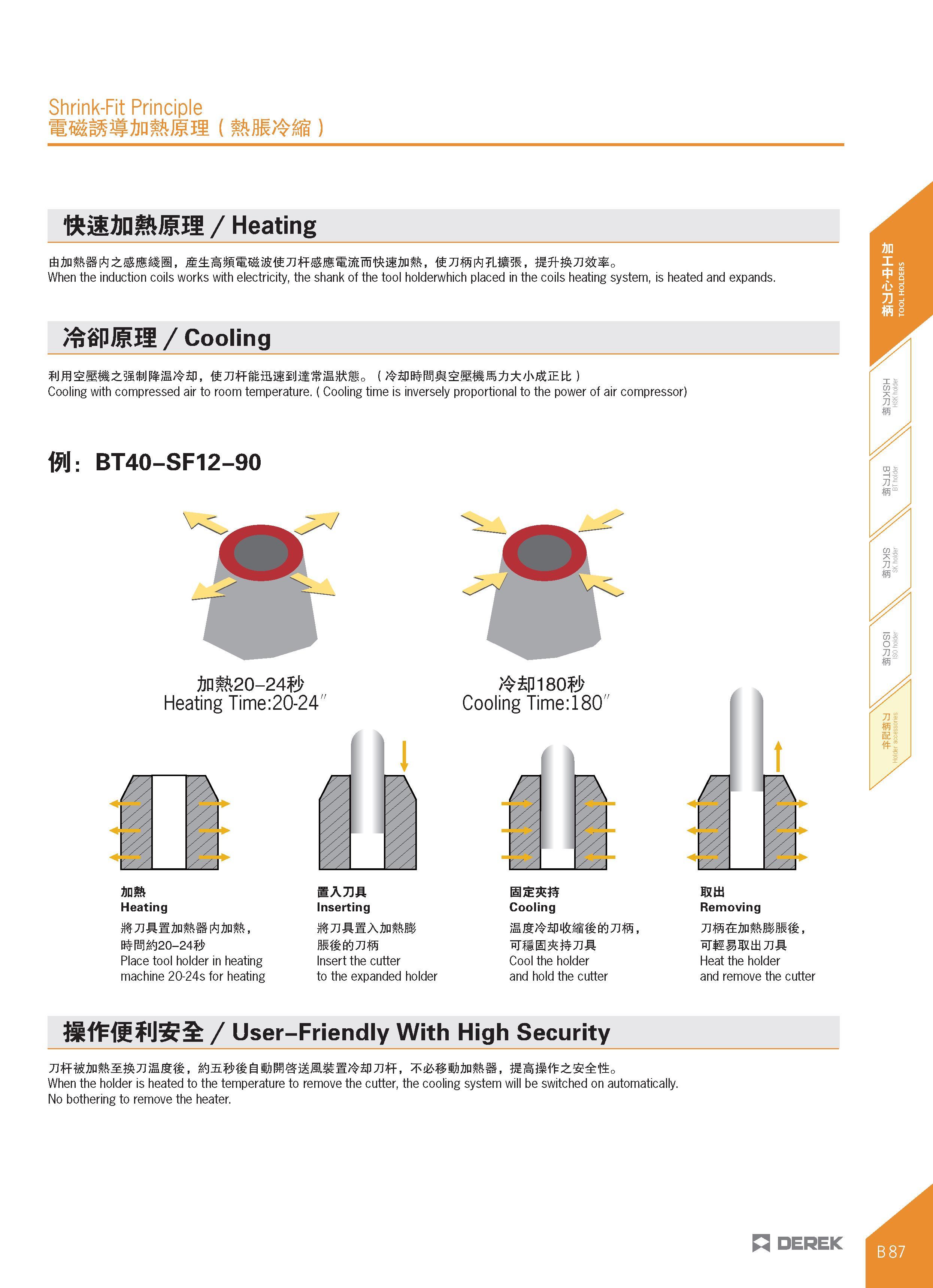

Shrink-Fit Principle / Heating When the induction coils works with electricity, the shank of the tool holderwhich placed in the coils heating system, is heated and expands. / Cooling Cooling with compressed air to room temperature. ( Cooling time is inversely proportional to the power of air compressor) tflj: BT40-SF12-90 Jn 120-24 Heating Time:20-24' Heating 03 1, 20-24 Place tool holder in heating machine 20-24s for heating /££P180 Cooling Time:180' / I : I MAT) Inserting mimnm Insert the cutter to the expanded holder mm Cooling bJS H St TS Cool the holder and hold the cutter 1 Removing nm&ammm, Heat the holder and remove the cutter / User-Friendly With High Security jjfftetoism&Tjsgfg, ± tfoi1'M jimss;v ojtf, When the holder is heated to the temperature to remove the cutter, the cooling system will be switched on automatically. No bothering to remove the heater. DEPEK
