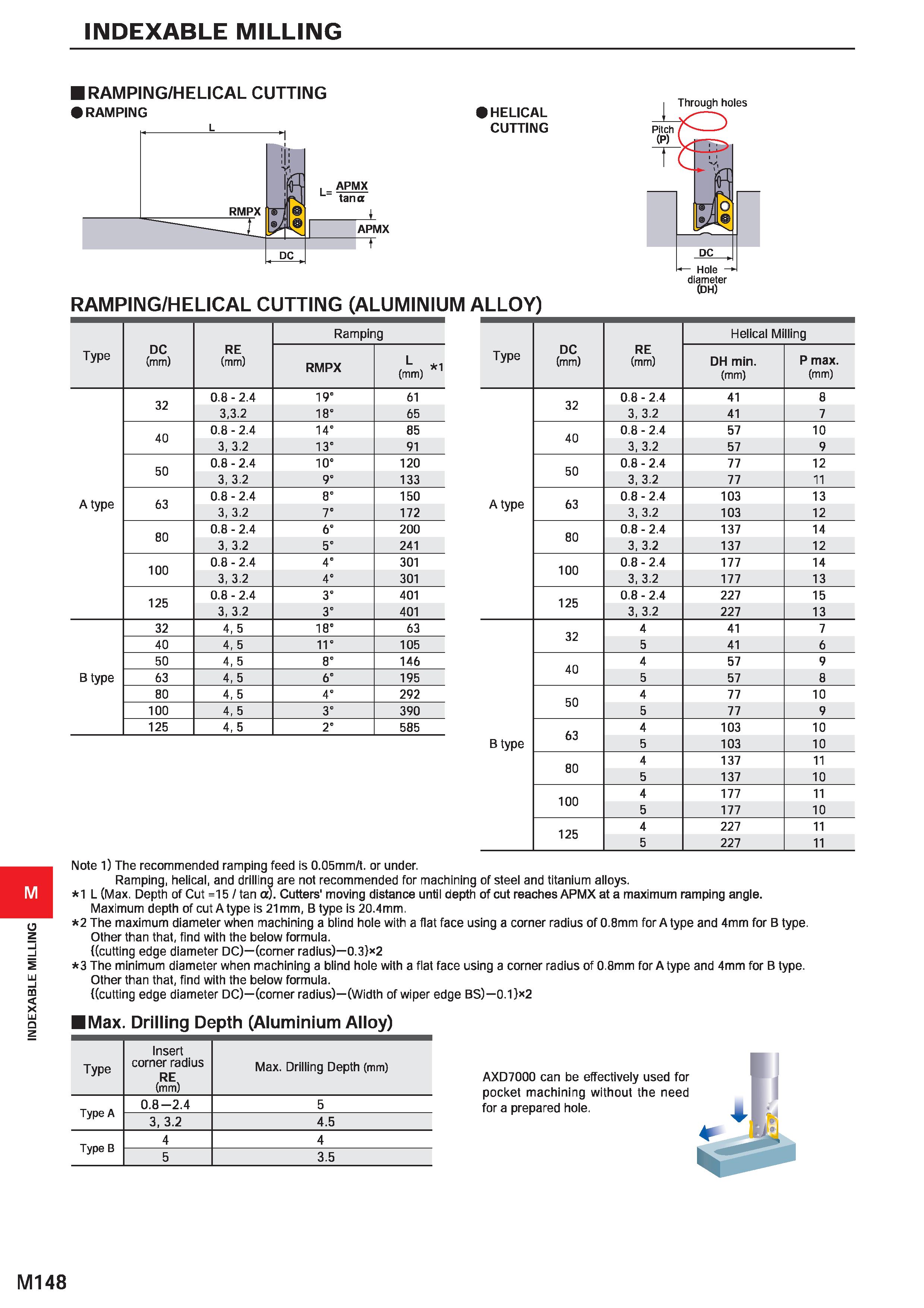

INDEXABLE MILLING INDEXABLE MILLING RAMPING/HELICAL CUTTING RAMPING HELICAL CUTTING (DH) RAMF 1NG/HE LICAL C UTTING (ALUMINIUM ALLOY ) Type DC (mm) RE (mm) Ramping DC (mm) RE (mm) Helical Milling RMPX L Type , , 1 (mm) DH min. (mm) P max. (mm) 32 0.8 - 2.4 19" 61 32 0.8-2.4 41 8 3,3.2 18° 65 3, 3.2 41 7 40 0.8-2.4 14° 85 40 0.8-2.4 57 10 3, 3.2 13° 91 3, 3.2 57 9 50 0.8-2.4 10° 120 50 0.8-2.4 77 12 A type 3, 3.2 9° 133 3, 3.2 77 11 63 0.8-2.4 8° 150 . 63 0.8-2.4 103 13 3, 3.2 7° 172 Atype 3, 3.2 103 12 80 0.8-2.4 6° 200 80 0.8-2.4 137 14 3, 3.2 5° 241 3, 3.2 137 12 100 0.8-2.4 4° 301 100 0.8-2.4 177 14 3, 3.2 4° 301 3, 3.2 177 13 125 0.8-2.4 3° 401 125 0.8-2.4 227 15 3, 3.2 3° 401 3, 3.2 227 13 Btype 32 4, 5 18° 63 32 4 41 7 40 4, 5 11° 105 5 41 6 50 4, 5 8° 146 40 4 57 9 63 4, 5 6° 195 5 57 8 80 4, 5 4° 292 50 4 77 10 100 4, 5 3° 390 5 77 9 125 4, 5 2° 585 63 4 103 10 Btype 5 103 10 80 4 137 11 5 137 10 100 4 177 11 5 177 10 125 4 227 11 5 227 11 Note 1) The recommended ramping feed is 0.05mm/t. or under. Ramping, helical, and drilling are not recommended for machining of steel and titanium alloys. 1 L (Max. Depth of Cut =15 / tan ay. Cutters' moving distance until depth of cut reaches APMX at a maximum ramping angle. Maximum depth of cut A type is 21 mm, B type is 20.4mm, 2 The maximum diameter when machining a blind hole with a flat face using a corner radius of 0.8mm for A type and 4mm for B type. Other than that, find with the below formula. (cutting edge diameter DC) (corner radius) 0.3 x2 3 The minimum diameter when machining a blind hole with a flat face using a corner radius of 0.8mm for A type and 4mm for B type. Other than that, find with the below formula. (cutting edge diameter DC) (corner radius) (Width of wiper edge BS) 0.1 x2 Max. Drilling Depth (Aluminium Alloy) Type Insert corner radius RE (mm) Max. Drilling Depth (mm) Type A 0.8 2.4 5 3, 3.2 4.5 Type B 4 4 5 3.5 AXD7000 can be effectively used for pocket machining without the need for a prepared hole. M148
