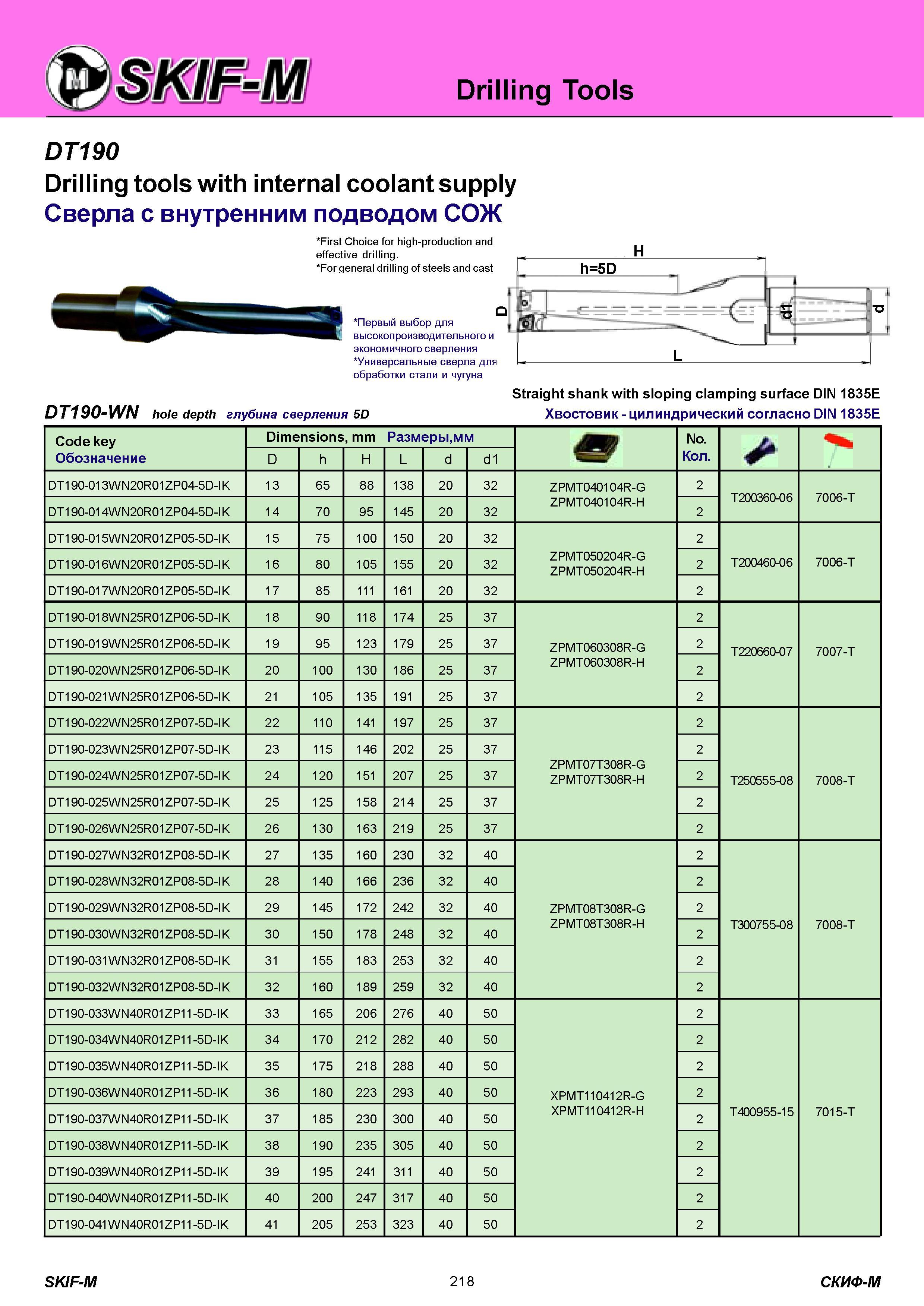

Drilling Tools DT190 Drilling tools with internal coolant supply Сверла с внутренним подводом СОЖ First Choice for high-production and effective drillin

Drilling Tools DT190 Drilling tools with internal coolant supply Сверла с внутренним подводом СОЖ First Choice for high-production and effective drilling. For general drilling of steels and cast Первый выбор для высокопроизводительного и экономичного сверления Универсальные сверла для обработки стали и чугуна H DT190-WN hole depth глубина сверления 5D Straight shank with sloping clamping surface DIN 1835E Хвостовик цилиндрический согласно DIN 1835E Code key Обозначение Dimensions, mm Размеры,мм m No. Количество D h H L d d1 DT190-013WN20R01ZP04-5D-IK 13 65 88 138 20 32 ZPMT040104R-G ZPMT040104R-H 2 T200360-06 7006-T DT190-014WN20R01ZP04-5D-IK 14 70 95 145 20 32 2 DT190-015WN20R01ZP05-5D-IK 15 75 100 150 20 32 2 DT190-016WN20R01ZP05-5D-IK 16 80 105 155 20 32 ZPMT050204R-G ZPMT050204R-H 2 T200460-06 7006-T DT190-017WN20R01ZP05-5D-IK 17 85 111 161 20 32 2 DT190-018WN25R01ZP06-5D-IK 18 90 118 174 25 37 ZPMT060308R-G ZPMT060308R-H 2 T220660-07 7007-T DT190-019WN25R01ZP06-5D-IK 19 95 123 179 25 37 2 DT190-020WN25R01ZP06-5D-IK 20 100 130 186 25 37 2 DT190-021WN25R01ZP06-5D-IK 21 105 135 191 25 37 2 DT190-022WN25R01ZP07-5D-IK 22 110 141 197 25 37 ZPMT07T308R-G ZPMT07T308R-H 2 T250555-08 7008-T DT190-023WN25R01ZP07-5D-IK 23 115 146 202 25 37 2 DT190-024WN25R01ZP07-5D-IK 24 120 151 207 25 37 2 DT190-025WN25R01ZP07-5D-IK 25 125 158 214 25 37 2 DT190-026WN25R01ZP07-5D-IK 26 130 163 219 25 37 2 DT190-027WN32R01ZP08-5D-IK 27 135 160 230 32 40 2 DT190-028WN32R01ZP08-5D-IK 28 140 166 236 32 40 ZPMT08T308R-G ZPMT08T308R-H 2 T300755-08 7008-T DT190-029WN32R01ZP08-5D-IK 29 145 172 242 32 40 2 DT190-030WN32R01ZP08-5D-IK 30 150 178 248 32 40 2 DT190-031WN32R01ZP08-5D-IK 31 155 183 253 32 40 2 DT190-032WN32R01ZP08-5D-IK 32 160 189 259 32 40 2 DT190-033WN40R01ZP11-5D-IK 33 165 206 276 40 50 2 DT190-034WN40R01ZP11-5D-IK 34 170 212 282 40 50 2 DT190-035WN40R01ZP11-5D-IK 35 175 218 288 40 50 2 DT190-036WN40R01ZP11-5D-IK 36 180 223 293 40 50 XPMT110412R-G 2 DT190-037WN40R01ZP11-5D-IK 37 185 230 300 40 50 XPMT110412R-H 2 T400955-15 7015-T DT190-038WN40R01ZP11-5D-IK 38 190 235 305 40 50 2 DT190-039WN40R01ZP11-5D-IK 39 195 241 311 40 50 2 DT190-040WN40R01ZP11-5D-IK 40 200 247 317 40 50 2 DT190-041WN40R01ZP11-5D-IK 41 205 253 323 40 50 2 SKIF-M 218 СКИФ-М
