Saw blade adaptor For holding saw blades 020 or 025 for intake in surface chucks high concentric accuracy Delivery scope Adaptor intermediate disc and clamping screw S

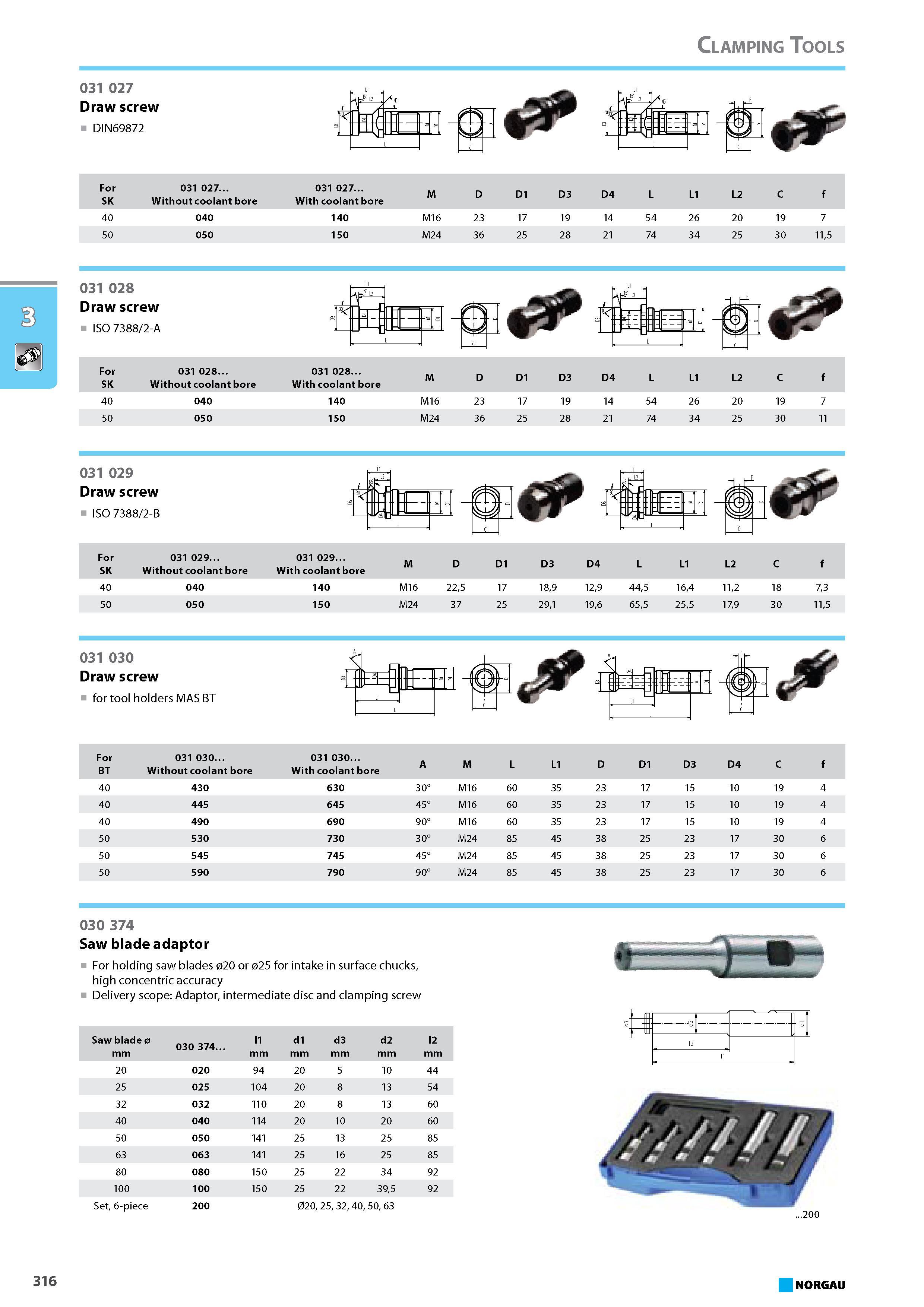

Saw blade adaptor For holding saw blades 020 or 025 for intake in surface chucks high concentric accuracy Delivery scope Adaptor intermediate disc and clamping screw Saw blade 0 mm 030 374. 11 mm d1 mm d3 mm d2 mm l2 mm 20 020 94 20 5 10 44 25 025 104 20 8 13 54 32 032 110 20 8 13 60 40 040 114 20 10 20 60 50 050 141 25 13 25 85 63 063 141 25 16 25 85 80 080 150 25 22 34 92 100 100 150 25 22 395 92 Set 6-piece 200 020 25 32 40 50 63 200 15 316 NORGAU Clamping Tools 031 027 Draw screw DIN69872 For SK 031 027. Without coolant bore 031 027. With coolant bore M D D1 D3 D4 L L1 L2 C f 40 040 140 M16 23 17 19 14 54 26 20 19 7 50 050 150 M24 36 25 28 21 74 34 25 30 115 031 028 Draw screw ISO 7388 2-A & For SK 031 028. Without coolant bore 031 028. With coolant bore M D D1 D3 D4 L L1 L2 C f 40 040 140 M16 23 17 19 14 54 26 20 19 7 50 050 150 M24 36 25 28 21 74 34 25 30 11 031 029 Draw screw ISO 7388 2-B & For SK 031 029. Without coolant bore 031 029. With coolant bore M D D1 D3 D4 L L1 L2 C f 40 040 140 M16 225 17 189 129 445 164 112 18 73 50 050 150 M24 37 25 291 196 655 255 179 30 115 031 030 Draw screw for tool holders MAS BT For BT 031 030. Without coolant bore 031 030. With coolant bore A M L L1 D D1 D3 D4 C f 40 430 630 30 M16 60 35 23 17 15 10 19 4 40 445 645 5 4 M16 60 35 23 17 15 10 19 4 40 490 690 0 9 M16 60 35 23 17 15 10 19 4 50 530 730 0 3 M24 85 45 38 25 23 17 30 6 50 545 745 5 4 M24 85 45 38 25 23 17 30 6 50 590 790 0 9 M24 85 45 38 25 23 17 30 6 030 374
