Assembly system swivelling Aluminium body Exchangeable tool holders from steel Faster and easier tool holder exchange 4x90 swivelling indexable Form-fitting tool fixat

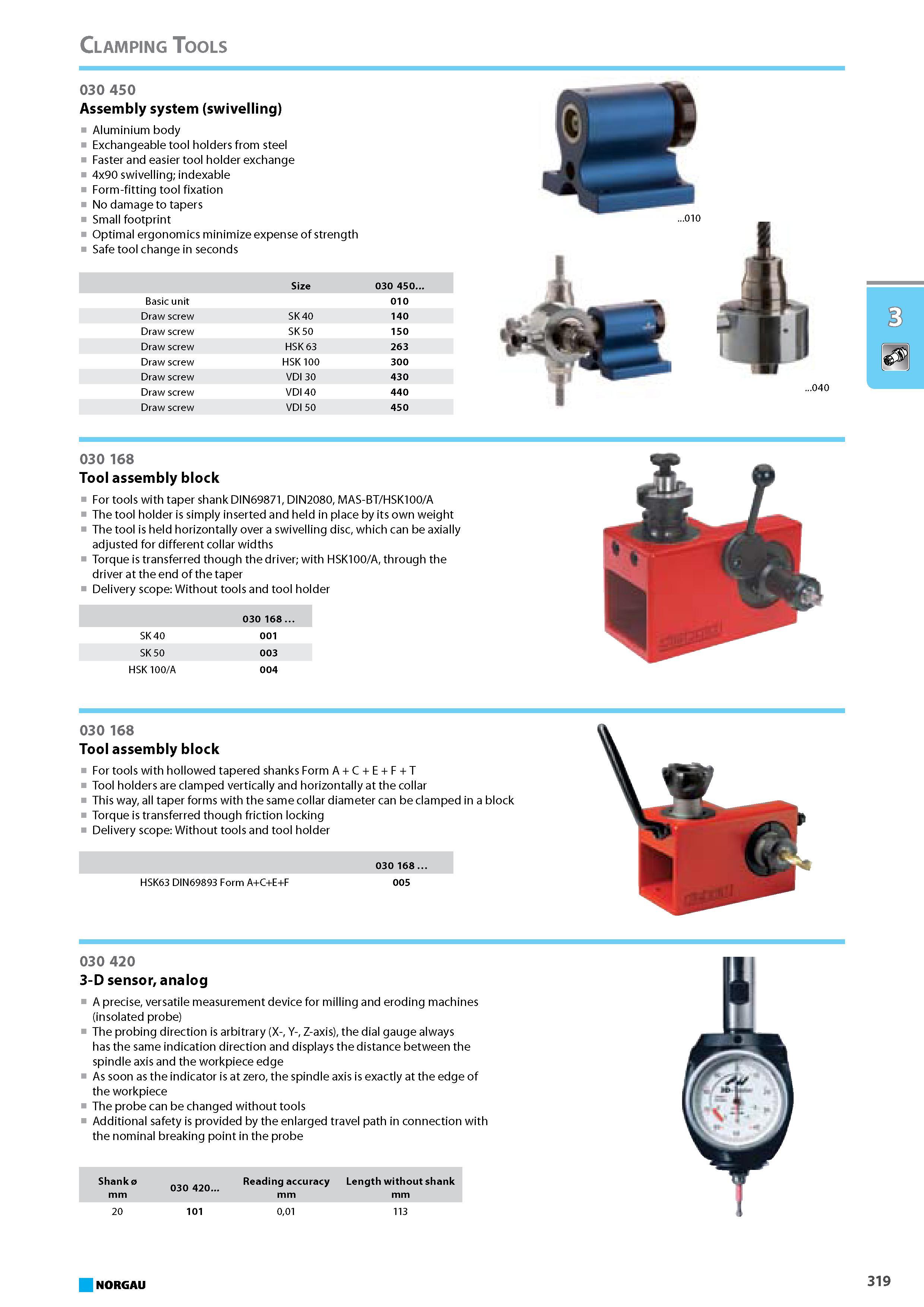

Assembly system swivelling Aluminium body Exchangeable tool holders from steel Faster and easier tool holder exchange 4x90 swivelling indexable Form-fitting tool fixation No damage to tapers Small footprint Optimal ergonomics minimize expense of strength Safe tool change in seconds ..010 030 168 Tool assembly block For tools with taper shank DIN69871 DIN2080 MAS-BT HSK100 A The tool holder is simply inserted and held in place by its own weight The tool is held horizontally over a swivelling disc which can be axially adjusted for different collar widths Torque is transferred though the driver with HSK100 A through the driver at the end of the taper Delivery scope Without tools and tool holder 030 168 SK 40 SK 50 HSK 100 A 001 003 004 030 168 Tool assembly block For tools with hollowed tapered shanks Form A C E F T Tool holders are clamped vertically and horizontally at the collar This way all taper forms with the same collar diameter can be clamped in a block Torque is transferred though friction locking Delivery scope Without tools and tool holder 030 168 HSK63 DIN69893 Form A+C+E+F 005 030 420 3-D sensor analog A precise versatile measurement device for milling and eroding machines (insolated probe) The probing direction is arbitrary (X- Y- Z-axis) the dial gauge always has the same indication direction and displays the distance between the spindle axis and the workpiece edge As soon as the indicator is at zero the spindle axis is exactly at the edge of the workpiece The probe can be changed without tools Additional safety is provided by the enlarged travel path in connection with the nominal breaking point in the probe Shank0 mm Reading accuracy Length without shank mm 20 101 001 113 NORGAU 319 Clamping Tools 030 450
